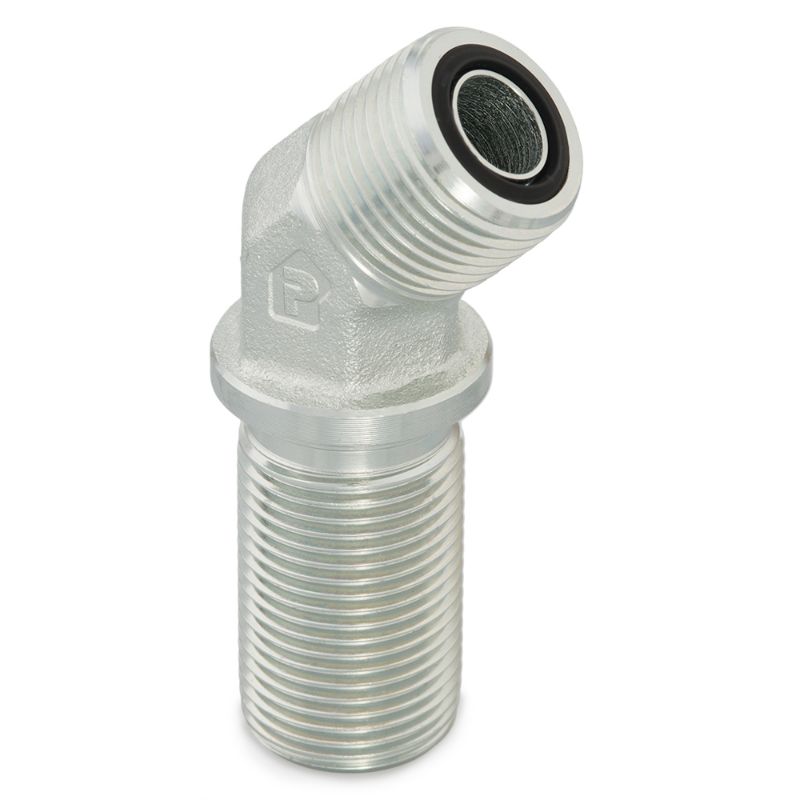

Picture of Parker 10 WNLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 10 WNLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
21 In Stock
Summerville, SC4
Ashland, VA2
Richmond, VA2
Jacksonville, FL2
Mooresville, NC2
Fayetteville, NC2
Knoxville, TN2
Knoxville, TN2
Norfolk, VA2
Johnson City, TN1
Partner Available:32 In Stock
Brand Parker
Part No. 10 WNLO-S
$43.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionTube Fittings Division
Dimensional Weight0.12464028776978417 lbMaximum Dynamic Pressure6000 psi
Body MaterialSteelO-Ring Material90 Durometer Nitrile
Specifications MetSAE J1453Connection TypeO-ring Face Seal
Connection 1 TypeMale O-Ring Face SealConnection 3 Typena
Connection 4 TypenaConnection 2 Thread Sizena
Connection 3 Thread SizenaConnection 1 Tube Outside Diameter14, 15, 16 mm
Connection 3 Tube Outside DiameternaConnection 4 Tube Outside Diameterna
Connection 2 Tube Outside Diameter14, 15, 16 mmShape45° Elbow
Connection 2 TypeMale O-Ring Face Seal Bulkhead
