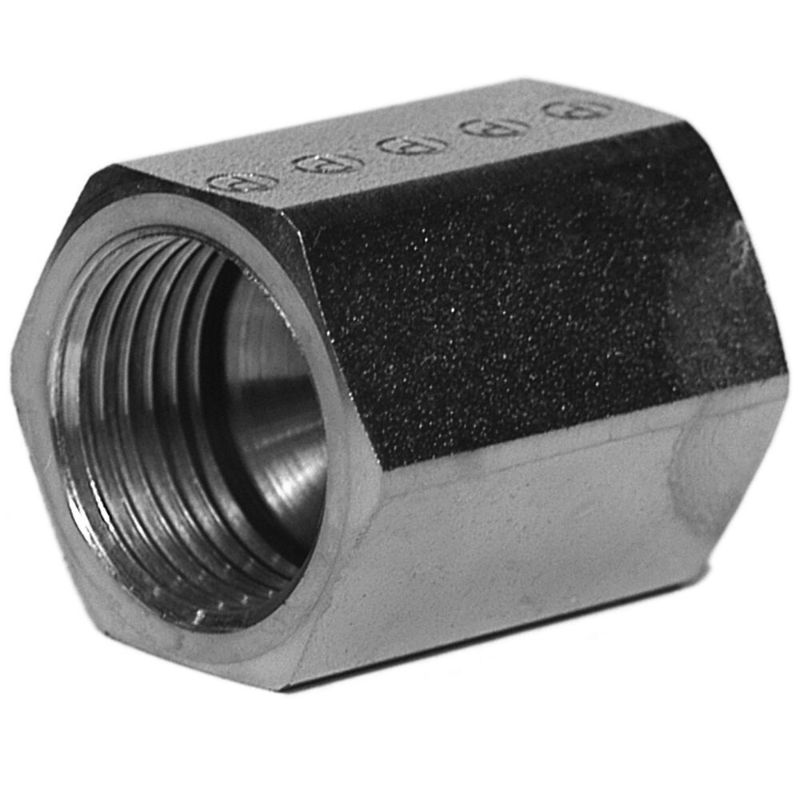

Parker 8TT4MXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8TT4MXS

$22.24

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Tube Outside Diameter	1/2 inch
Body Material	Steel	Connection 3 Size	na
Division	Tube Fittings Division	Connection 3 Thread Size	na
Connection 2 Size	na	Specifications Met	SAE J514
Connection 1 Size	3/4-16	Connection 2 Tube Outside Diameter	na
Shape	Test point connection EMA3 test point	Connection 4 Tube Outside Diameter	na
Maximum Dynamic Pressure	5800 psi	O-Ring Material	na
Connection Type	37° Flare	Connection 3 Tube Outside Diameter	na
Connection 4 Size	na	Connection 2 Thread Size	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
