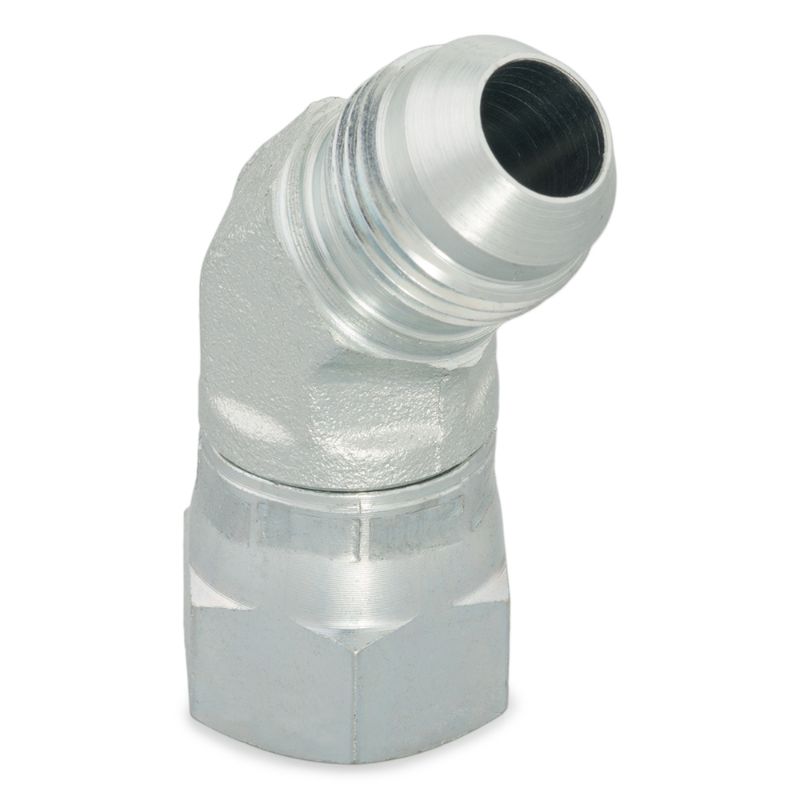

Parker 10 V6X-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10 V6X-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 V6X-S
Price: 18.72 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

70 In Stock

Norfolk, VA	28
Grovetown, GA	9
Richmond, VA	8
Johnson City, TN	6 (Pickup only)
Ashland, VA	4 (Pickup only)
Sumter, SC	3
Jacksonville, FL	2
Knoxville, TN	2
Knoxville, TN	2
Summerville, SC	2
Mooresville, NC	2
Richmond, VA	1 (Pickup only)
Fayetteville, NC	1

Partner Available:

463 In Stock

Brand Parker

Part No. 10 V6X-S

$18.72/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Connection 4 Size	na	Maximum Dynamic Pressure	5000 psi
Connection Type	37° Flare	Dimensional Weight	0.05140231564748201 lb
Body Material	Steel	O-Ring Material	na
Specifications Met	SAE J514	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 1 Size	Male 37° Flare	Connection 3 Size	na
Connection 2 Size	Female 37° Flare Swivel	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Shape	45° Elbow

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
