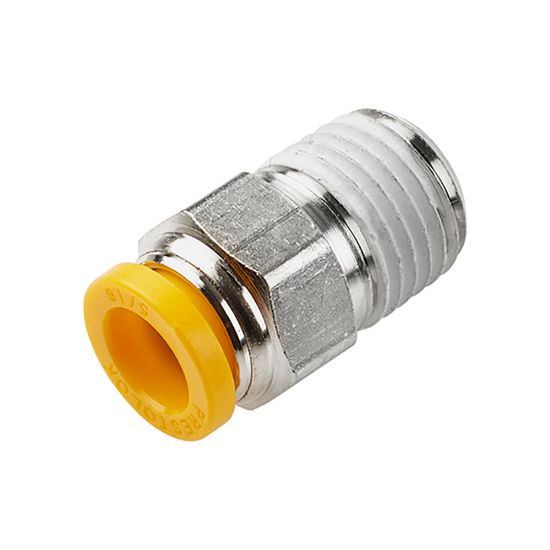

Parker W68PLP-6M-4R - Push-to-Connect Nickel Plated Instant Fittings - Prestolok PLP Metal

Parker's Prestolok PLP push-to-connect fittings offer improved throughput, increased efficiency, smaller footprints, faster assembly and leak-reducing innovation.

AFP Availability:	Quote Required
Partner Available:	11 In Stock

Brand Parker

Part No. W68PLP-6M-4R

$5.88/each

Products specifications

Attribute name	Attribute value
UOM	EA	Application	Vacuum
Seal Material	Nitrile	Specifications Met	UL 94 V-0
Tube Material	Nylon	Hex Size	9/16 inch
Region of Origin	United States	Minimum Operating Temperature	-17.7 °C
Body Material	Brass, Nickel-plated	Division	Fluid System Connectors Division
Division	Fluid System Connectors Division	For Fluid Type	Inert Gases
Technology	Fluid & Gas Handling	Maximum Operating Temperature	93.3 °C
Industry	Semiconductor	Maximum Operating Pressure	20.6 bar
Gripping Ring Material	Stainless Steel	Brand	Parker
Vacuum Pressure Rating	28 Inch-Hg	Materials of Construction	PVDF (Button)
Connection 2 Size	1/4"	Connection 1 Size	6 mm
Connection 1 Type	Push-to-Connect	Connection 2 Type	Male BSPT
Configuration	Tube to Pipe	Product Style	Connector
