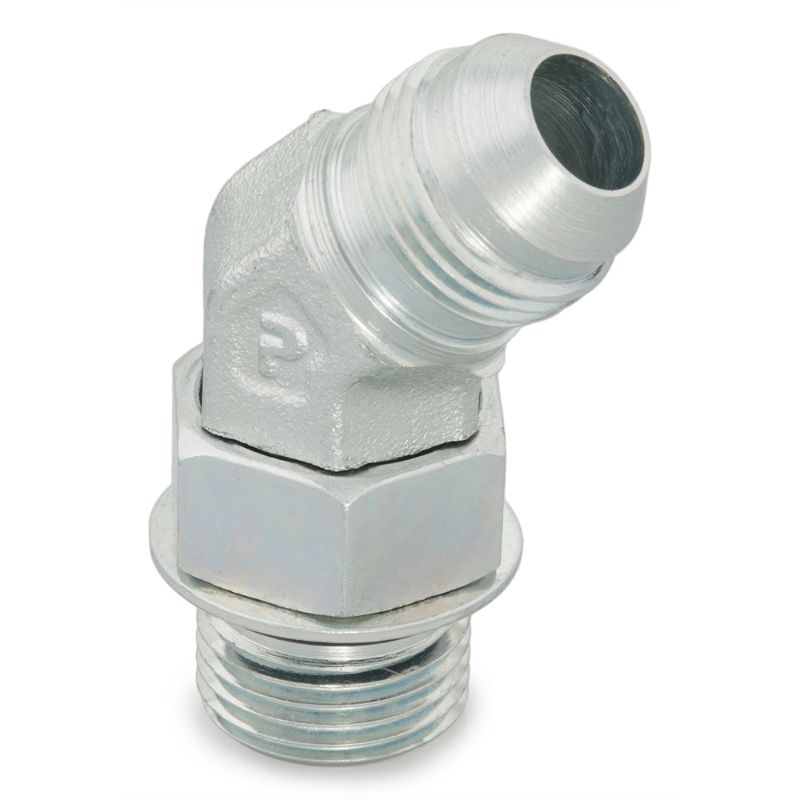

Parker 10 V5OX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10 V5OX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 V5OX-S
Price: 25.02 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

51 In Stock

Norfolk, VA	12
Grovetown, GA	7
Richmond, VA	6
Sumter, SC	4
Knoxville, TN	4
Knoxville, TN	4
Summerville, SC	4
Ashland, VA	2 (Pickup only)
Jacksonville, FL	2
Johnson City, TN	2 (Pickup only)
Mooresville, NC	2
Richmond, VA	1 (Pickup only)
Fayetteville, NC	1

Partner Available:

290 In Stock

Brand Parker

Part No. 10 V5OX-S

$25.02/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Connection 4 Size	na	Maximum Dynamic Pressure	5000 psi
Body Material	Steel	Dimensional Weight	0.06853642086330936 lb
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J514
Connection Type	Tube to SAE-ORB	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	5/8 inch
Connection 2 Tube Outside Diameter	na	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection 1 Size	Male 37° Flare
Connection 2 Size	Male SAE-ORB	Connection 3 Size	na
Shape	45° Elbow

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
