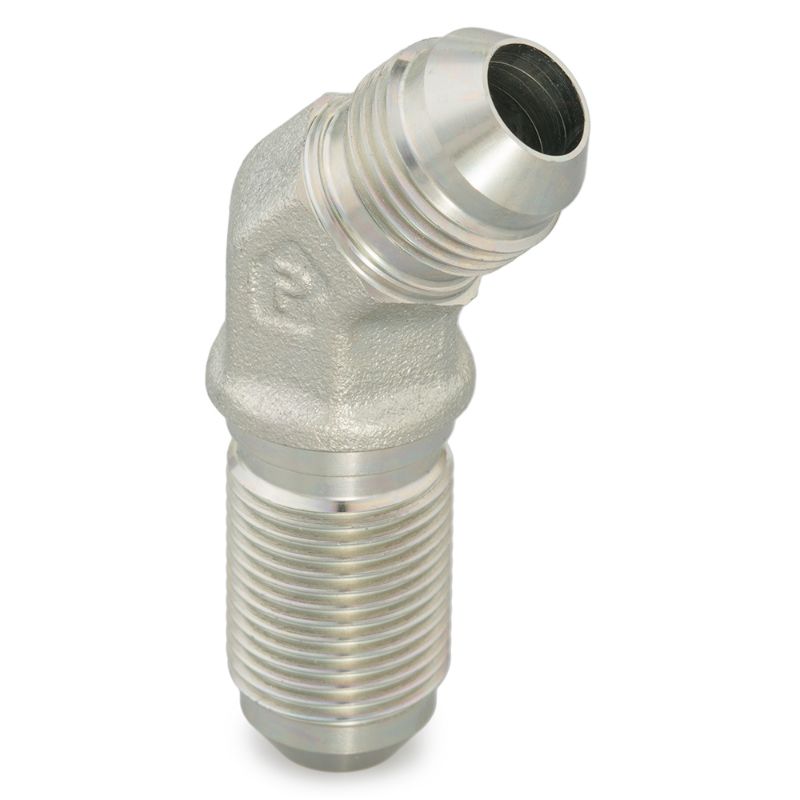

Parker 10 WNTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10 WNTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 WNTX-S
Price: 30.06 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

8 In Stock

Norfolk, VA	4
Grovetown, GA	3
Fayetteville, NC	1

Partner Available:

25 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 WNTX-S

$30.06/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Specifications Met	SAE J514	Connection 2 Thread Size	na
Connection 3 Size	na	Shape	45° Elbow
Connection 3 Thread Size	na	Maximum Dynamic Pressure	5000 psi
Connection 4 Size	na	Dimensional Weight	0.08838129496402877 lb
O-Ring Material	na	Division	Tube Fittings Division
Connection Type	37° Flare	Connection 2 Size	Male 37° Flare Bulkhead
Connection 3 Tube Outside Diameter	na	Connection 1 Size	Male 37° Flare
Body Material	Steel	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	5/8 inch

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
