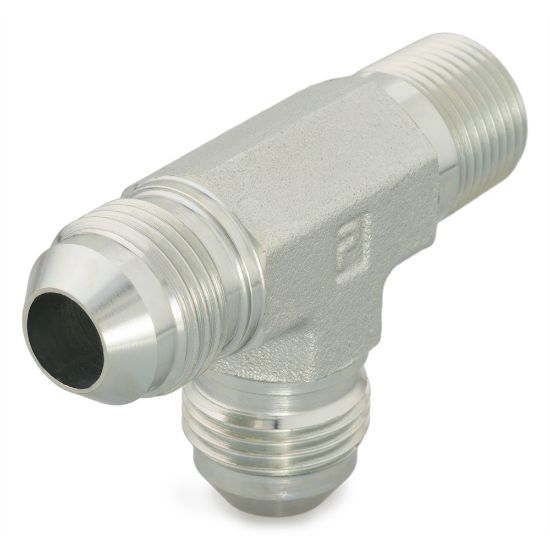

Parker 10 RTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10 RTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 RTX-S
Price: 24.13 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

5 In Stock

West Knoxville, TN	3
East Knoxville, TN	2

Partner Available:

130 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 RTX-S

$24.13/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Size	Male NPT/NPTF
Connection 3 Tube Outside Diameter	14, 15, 16 mm	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 4 Tube Outside Diameter	na
Division	Tube Fittings Division	Connection Type	Run Tee
O-Ring Material	na	Connection 2 Thread Size	1/2-14 inch
Shape	Tee	Connection 1 Size	Male 37° Flare
Body Material	Steel	Connection 4 Size	na
Maximum Dynamic Pressure	5000 psi	Connection 3 Size	Male 37° Flare
Connection 2 Tube Outside Diameter	na	Specifications Met	SAE J514

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
