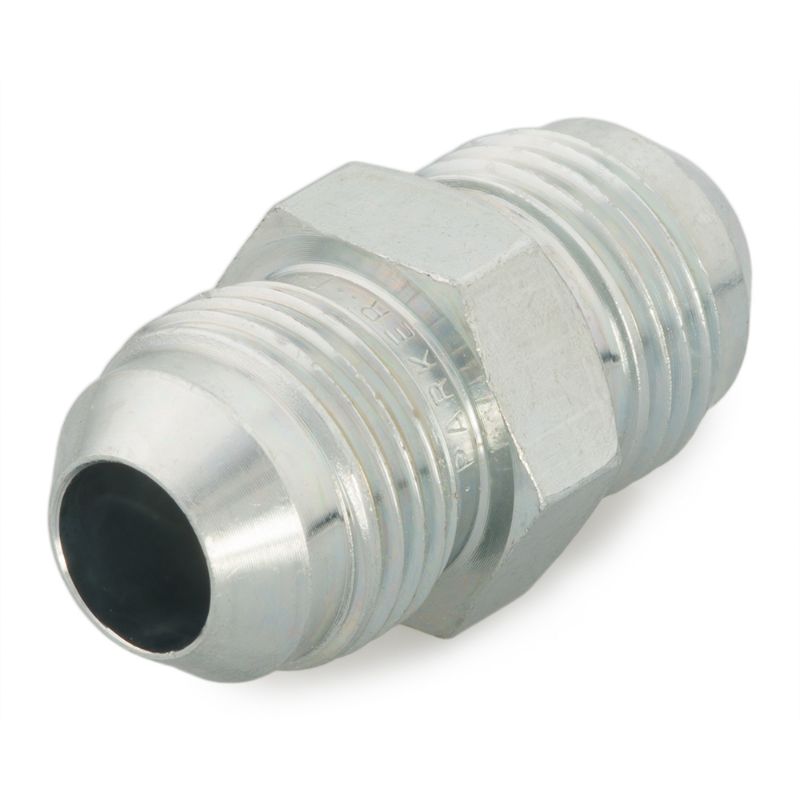

Parker 10 HTX-B - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10 HTX-B - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 HTX-B
Price: 19.16 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

4 In Stock

Norfolk, VA

Partner Available:

105 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 HTX-B

$19.16/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Thread Size	na
Connection 4 Size	na	Specifications Met	SAE J514
Maximum Dynamic Pressure	3300 psi	Connection Type	37° Flare
Division	Tube Fittings Division	Connection 2 Size	Male 37° Flare
Dimensional Weight	0.044946043165467624 lb	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection 1 Size	Male 37° Flare
O-Ring Material	na	Connection 1 Tube Outside Diameter	5/8 inch
Connection 2 Tube Outside Diameter	5/8 inch	Connection 3 Size	na
Connection 2 Thread Size	na	Shape	Straight
Body Material	Brass

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
