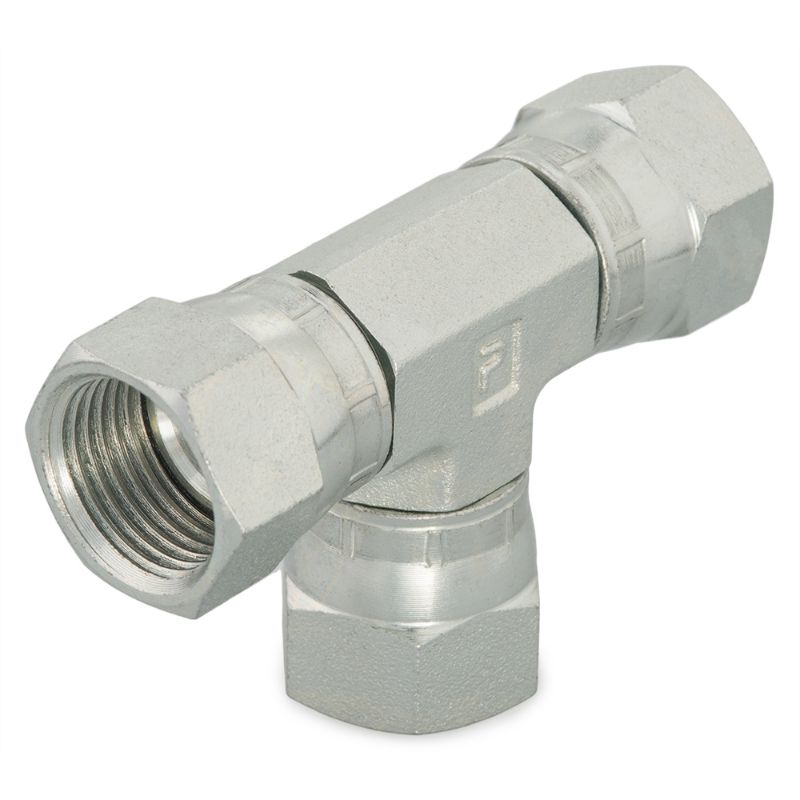

Parker 10 JX6-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10 JX6-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 JX6-S
Price: 108.58 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

4 In Stock

Grovetown, GA

Partner Available:

16 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 JX6-S

$108.58/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	14, 15, 16 mm	Connection Type	37° Flare
O-Ring Material	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Connection 2 Size	Female 37° Flare Swivel	Division	Tube Fittings Division
Body Material	Steel	Connection 1 Size	Female 37° Flare Swivel
Connection 4 Tube Outside Diameter	na	Specifications Met	SAE J514
Maximum Dynamic Pressure	5000 psi	Connection 4 Size	na
Connection 3 Size	Female 37° Flare Swivel	Connection 2 Tube Outside Diameter	14, 15, 16 mm
Shape	Tee	Connection 2 Thread Size	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
