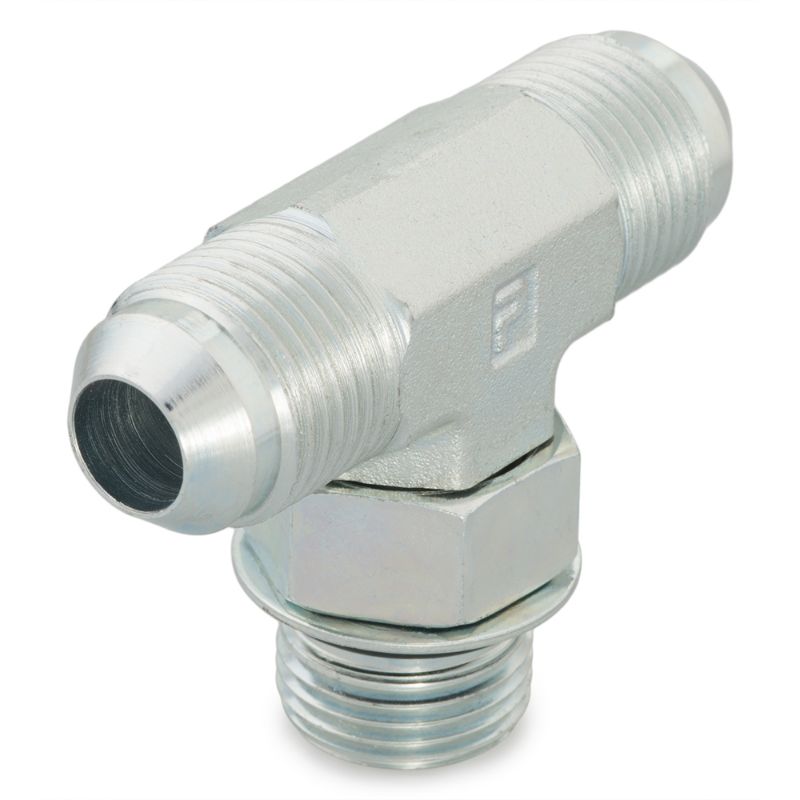

Parker 10 S5OX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10 S5OX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 S5OX-S
Price: 42.00 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

11 In Stock

Mooresville, NC	3
Ashland, VA	2 (Pickup only)
West Knoxville, TN	2
East Knoxville, TN	2
North Chesterfield, VA	1
Johnson City, TN	1 (Pickup only)

Partner Available:

129 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10 S5OX-S

$42.00/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	Male 37° Flare
Body Material	Steel	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Specifications Met	SAE J514
Connection 2 Tube Outside Diameter	14, 15, 16 mm	Connection 3 Size	Male SAE-ORB
Shape	Tee	Connection 2 Thread Size	na
Connection 3 Thread Size	7/8-14 inch	Maximum Dynamic Pressure	5000 psi
Connection 4 Size	na	O-Ring Material	90 Durometer Nitrile
Connection Type	Branch Tee	Division	Tube Fittings Division
Connection 2 Size	Male 37° Flare	Dimensional Weight	0.12336555755395684 lb
Connection 3 Tube Outside Diameter	na

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
