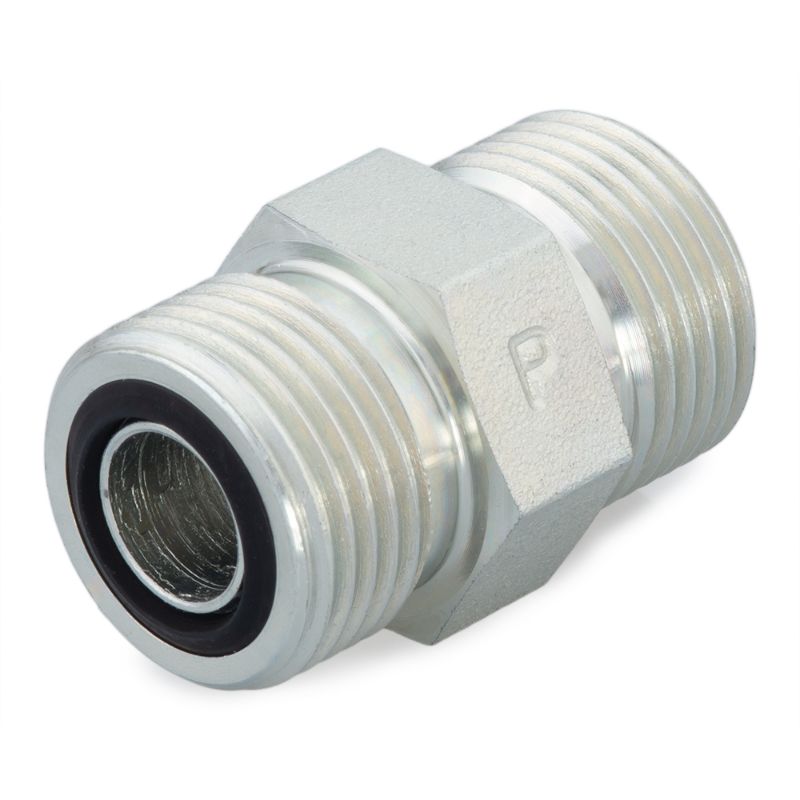

Parker 10 HLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Name: Parker 10 HLO-S - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters
SKU: 10 HLO-S
Price: 12.88 USD
Availability: InStock

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

AFP Availability:

38 In Stock

Grovetown, GA	8
Richmond, VA	6
Richmond, VA	4 (Pickup only)
Norfolk, VA	4
Knoxville, TN	4
Knoxville, TN	4
Jacksonville, FL	2
Mooresville, NC	2
Ashland, VA	1 (Pickup only)
Fayetteville, NC	1
Sumter, SC	1
Johnson City, TN	1 (Pickup only)

Partner Available:

1114 In Stock

Brand Parker

Part No. 10 HLO-S

$12.88/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Maximum Dynamic Pressure	6000 psi	Shape	Straight
Dimensional Weight	0.05140231564748201 lb	Body Material	Steel
O-Ring Material	90 Durometer Nitrile	Specifications Met	SAE J1453
Connection Type	O-ring Face Seal	Connection 1 Type	Male O-Ring Face Seal
Connection 3 Type	na	Connection 4 Type	na
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection 2 Tube Outside Diameter	5/8 inch
Connection 2 Type	Male O-Ring Face Seal
