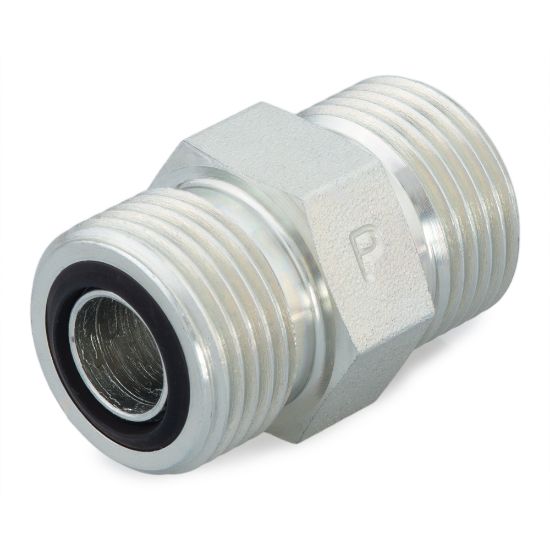

Parker 10 HLO-S FKM - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10 HLO-S FKM

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Division	Tube Fittings Division	Maximum Dynamic Pressure	6000 psi
Shape	Straight	Dimensional Weight	0.031160071942446042 lb
Body Material	Steel	O-Ring Material	90 Durometer Fluorocarbon
Specifications Met	SAE J1453	Connection Type	O-ring Face Seal
Connection 1 Type	Male O-Ring Face Seal	Connection 3 Type	na
Connection 4 Type	na	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	14, 15, 16 mm
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 2 Tube Outside Diameter	5/8 inch	Connection 2 Type	Male O-Ring Face Seal

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382861TA-O-Lok (PDF)
