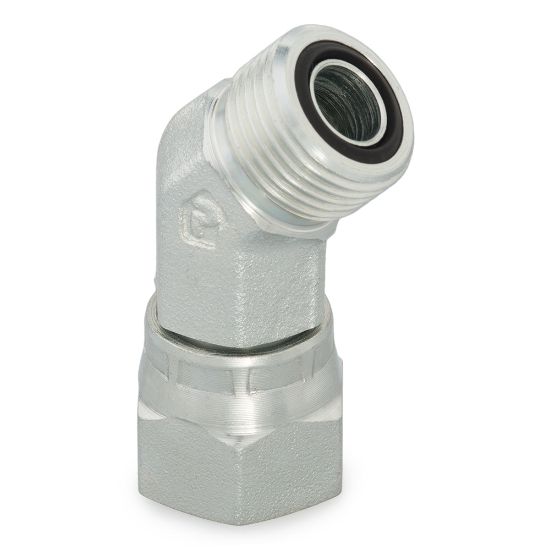

Picture of Parker 10 V6LO-S FKM - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 10 V6LO-S FKM - Seal-Lok O-Ring Face Seal Tube Fittings and Adapters

Parker's Seal-Lok O-Ring Face Seal fitting design provides leak-free connections in applications with high-pressure, vibration and impulse environments. Using the new FastSeal nut, ORFS tube connections can be made in minutes without flanging or brazing.
Availability:
Quote Required
Partner Available:Quote Required
Brand Parker
Part No. 10 V6LO-S FKM
TBD
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
DivisionTube Fittings DivisionDimensional Weight0.07913669064748201 lb
Maximum Dynamic Pressure6000 psiBody MaterialSteel
O-Ring Material90 Durometer FluorocarbonSpecifications MetSAE J1453
Connection TypeO-ring Face SealConnection 1 TypeMale O-Ring Face Seal
Connection 3 TypenaConnection 4 Typena
Connection 2 Thread SizenaConnection 3 Thread Sizena
Connection 1 Tube Outside Diameter14, 15, 16 mmConnection 3 Tube Outside Diameterna
Connection 4 Tube Outside DiameternaConnection 2 Tube Outside Diameter14, 15, 16 mm
Connection 2 TypeFemale O-Ring Face Seal SwivelShape45° Elbow
Product resources

Literature and Reference Materials

Compliance, Certifications & Safety
