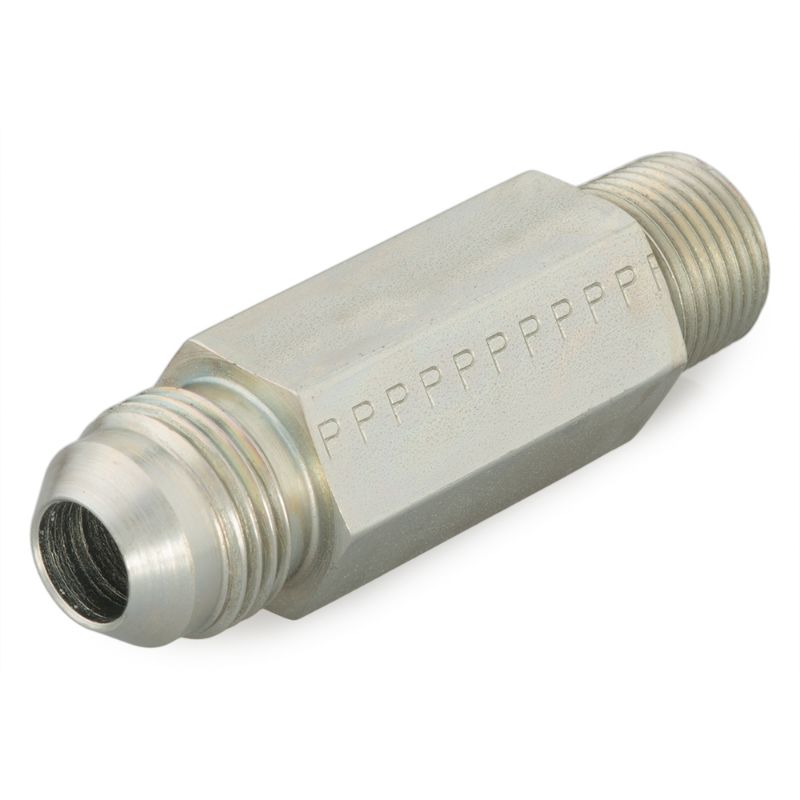

Parker 10 FFTX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 10 FFTX-S

$37.25/each

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 3 Thread Size	na
Connection 3 Tube Outside Diameter	na	Maximum Dynamic Pressure	5000 psi
O-Ring Material	na	Division	Tube Fittings Division
Connection Type	37° Flare	Connection 2 Size	Male NPT/NPTF
Body Material	Steel	Connection 4 Tube Outside Diameter	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 1 Size	Male 37° Flare
Specifications Met	SAE J514	Connection 4 Size	na
Connection 3 Size	na	Connection 2 Tube Outside Diameter	na
Connection 2 Thread Size	1/2-14 inch	Shape	Straight

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
