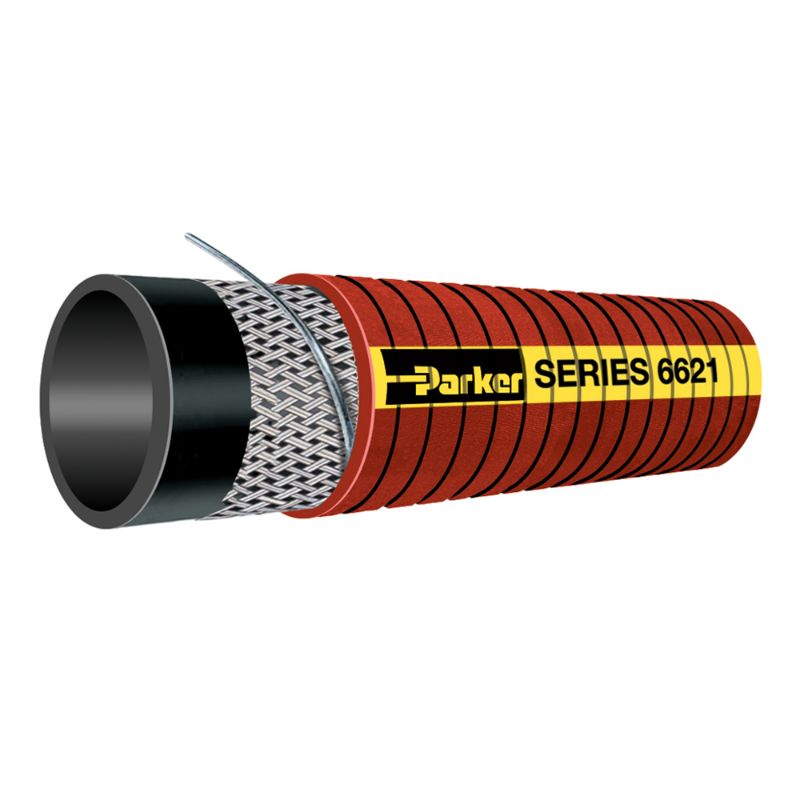

Parker 6621-1000025 - Silicone Greek Corrugated High Temperature Wire Reinforced Coolant Hose, Series 6621

Silicone Greek Corrugated High Temperature Wire Reinforced Coolant Hose is for use in heater and radiator systems in heavy duty/high capacity vehicles and industrial equipment to 75 psi and 392°F, Series 6621

AFP Availability:	Quote Required
Partner Available:	115 In Stock

Brand Parker

Part No. 6621-1000025

$52.24/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Cover Color	Red
Inside Diameter	25 mm	Vacuum Pressure Rating	17.7 Inch-Hg
Outside Diameter	35 mm	Cover Structure	Glossy
Maximum Operating Pressure	5 bar	Media	Water
Minimum Burst Pressure	225 psi	Maximum Operating Temperature	392 °F
Division	Hose Products Division	Minimum Operating Temperature	-60 °C
Application	Engine	Package Type	Coil
Hose Inner Tube Material	Silicone	Design Factor	3:1
Weight	0.14 kg	Hose Reinforcement Material	Multiple Plies of High Temperature Textile with Wire Helix
Cover Material	Silicone	Specifications Met	SAE J20R1, Class A
Minimum Bend Radius	50 mm	Standard Pack Qty (ft)	25
Hose I.D. (inch)	1	Minimum Burst Pressure (psi)	225

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
