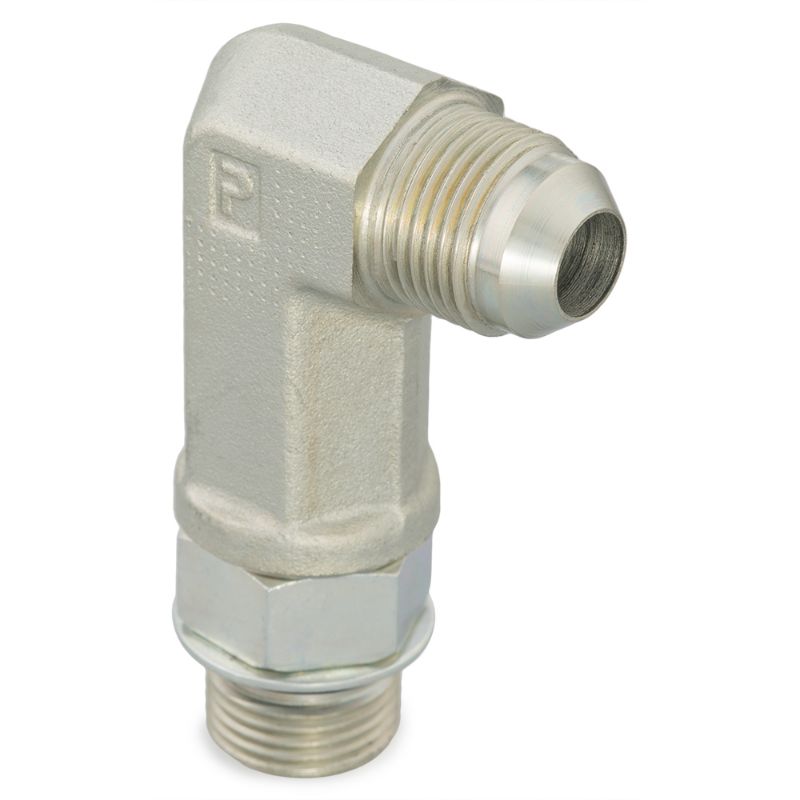

Picture of Parker 10 CC5OX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker 10 CC5OX-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.
Availability:
Quote Required
Partner Available:95 In Stock
Brand Parker
Part No. 10 CC5OX-S
$35.84
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionTube Fittings Division
Connection 4 SizenaDimensional Weight0.12464028776978417 lb
Maximum Dynamic Pressure5000 psiConnection Type37° Flare
Body MaterialSteelO-Ring Material90 Durometer Nitrile
Specifications MetSAE J514Shape90° Elbow
Connection 2 Thread Size7/8-14 inchConnection 3 Thread Sizena
Connection 1 Tube Outside Diameter5/8 inchConnection 2 Tube Outside Diameterna
Connection 3 Tube Outside DiameternaConnection 4 Tube Outside Diameterna
Connection 1 SizeMale 37° FlareConnection 2 SizeMale SAE-ORB
Connection 3 Sizena
