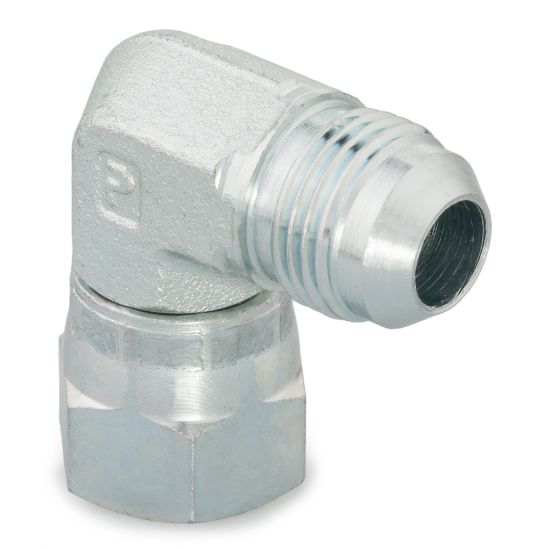

Parker 10 C6X-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10 C6X-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10 C6X-S
Price: 19.04 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:

137 In Stock

Richmond, VA	49
Richmond, VA	25
Grovetown, GA	11
Summerville, SC	10
Sumter, SC	8
Johnson City, TN	6
Fayetteville, NC	5
Knoxville, TN	4
Mooresville, NC	4
Knoxville, TN	3
Jacksonville, FL	3
Ashland, VA	3
Richmond, VA	2
Norfolk, VA	2

Partner Available:

888 In Stock

Brand Parker

Part No. 10 C6X-S

$19.04

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Connection 4 Size	na	Dimensional Weight	0.07742805755395683 lb
Maximum Dynamic Pressure	5000 psi	Connection Type	37° Flare
Body Material	Steel	O-Ring Material	na
Specifications Met	SAE J514	Shape	90° Elbow
Connection 2 Thread Size	na	Connection 3 Thread Size	na
Connection 1 Tube Outside Diameter	14, 15, 16 mm	Connection 3 Tube Outside Diameter	na
Connection 4 Tube Outside Diameter	na	Connection 1 Size	Male 37° Flare
Connection 3 Size	na	Connection 2 Size	Female 37° Flare Swivel
Connection 2 Tube Outside Diameter	14, 15, 16 mm

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
