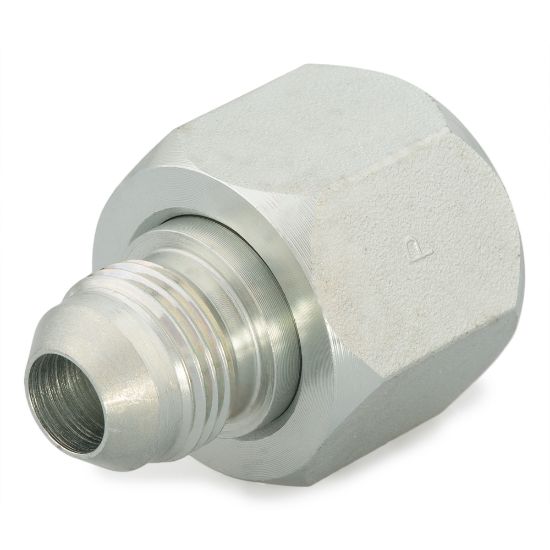

Parker 10-6 TRTXN-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10-6 TRTXN-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10-6 TRTXN-S
Price: 11.40 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:

14 In Stock

Summerville, SC	5
Sumter, SC	3
West Knoxville, TN	2
East Knoxville, TN	2
Mooresville, NC	2

Partner Available:

215 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 10-6 TRTXN-S

$11.40/each

Qty:

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Size	Female 37° Flare with Large Nut
Connection 4 Tube Outside Diameter	na	Connection 1 Tube Outside Diameter	5/8 inch
Shape	Straight	Connection 2 Tube Outside Diameter	10 mm
Connection 2 Thread Size	na	Connection 3 Size	na
Body Material	Steel	Connection 3 Thread Size	na
Specifications Met	SAE J514	Maximum Dynamic Pressure	5000 psi
Connection 4 Size	na	O-Ring Material	na
Connection Type	37° Flare	Connection 2 Size	Male 37° Flare
Division	Tube Fittings Division	Connection 3 Tube Outside Diameter	na

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
