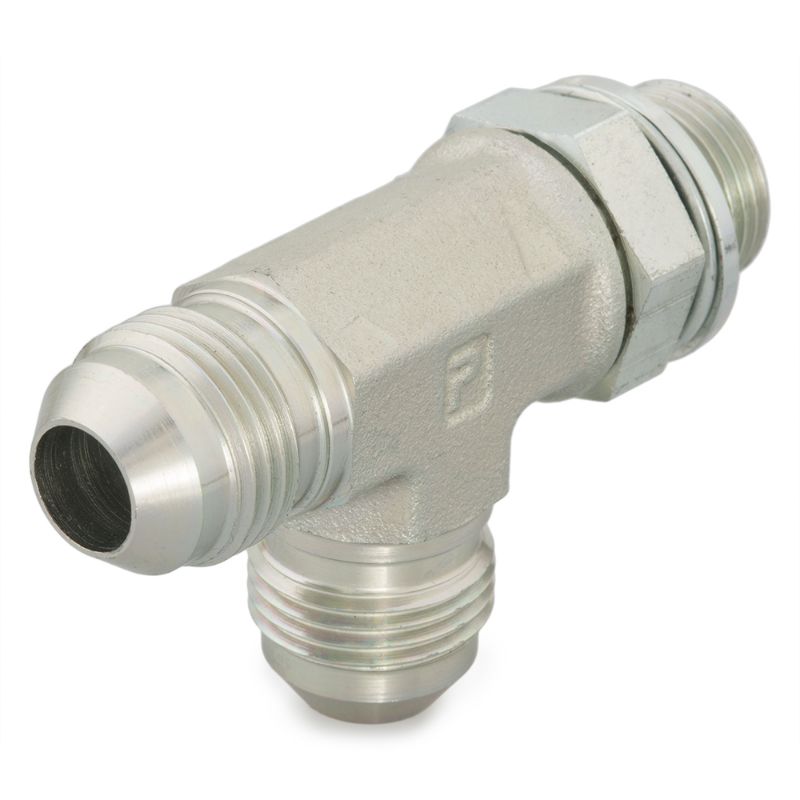

Parker 8R4OMXS - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 8R4OMXS

$55.99/each

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection 2 Thread Size	na	Shape	Tee
O-Ring Material	90 Durometer Nitrile	Connection Type	37° Flare
Division	Tube Fittings Division	Connection 1 Tube Outside Diameter	1/2 inch
Connection 1 Size	Male 37° Flare	Connection 4 Tube Outside Diameter	na
Connection 3 Thread Size	na	Connection 3 Tube Outside Diameter	1/2 inch
Connection 2 Size	Male BSPP O-Ring Retaining Ring	Connection 4 Size	na
Connection 3 Size	Male 37° Flare	Specifications Met	SAE J514
Connection 2 Tube Outside Diameter	na	Maximum Dynamic Pressure	3600 psi

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)

Literature and Reference Materials
