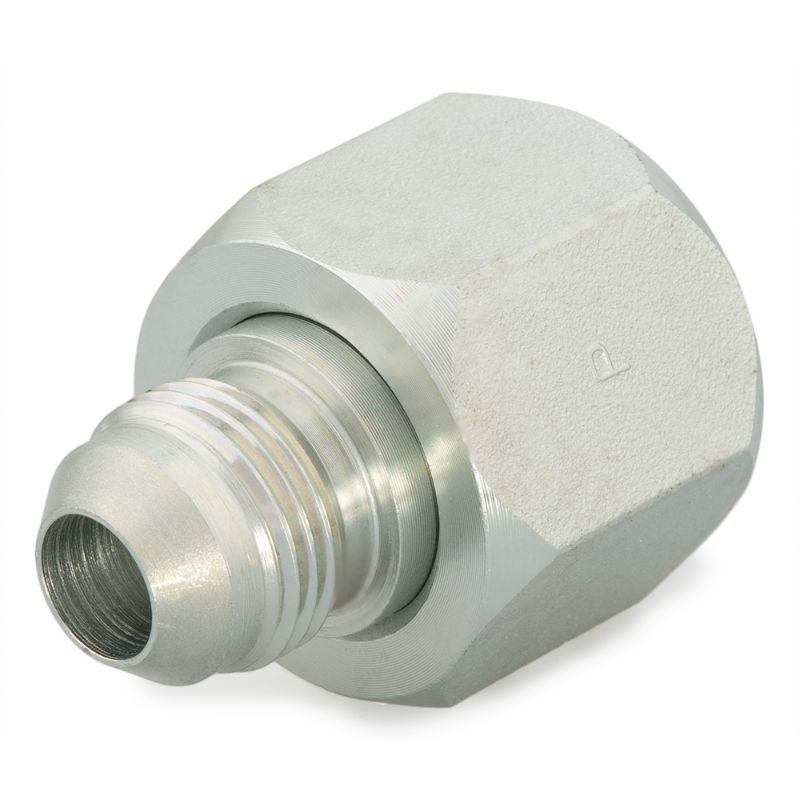

Parker 10-4 TRTXN-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters

Name: Parker 10-4 TRTXN-S - Triple-Lok® 37° Flare JIC Tube Fittings and Adapters
SKU: 10-4 TRTXN-S
Price: 14.36 USD
Availability: InStock

Parker Triple-Lok 37° Flare JIC Tube Fittings and Adapters are a reliable leak-free metal to metal connection solution for most high pressure hydraulic applications.

Availability:

7 In Stock

Summerville, SC	5
Mooresville, NC	2

Partner Available:

95 In Stock

Brand Parker

Part No. 10-4 TRTXN-S

$14.36

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Division	Tube Fittings Division
Connection 4 Size	na	Maximum Dynamic Pressure	5000 psi
Shape	Straight	Connection Type	37° Flare
Body Material	Steel	O-Ring Material	na
Specifications Met	SAE J514	Connection 2 Thread Size	na
Connection 3 Thread Size	na	Connection 1 Tube Outside Diameter	5/8 inch
Connection 3 Tube Outside Diameter	na	Connection 4 Tube Outside Diameter	na
Connection 3 Size	na	Connection 2 Size	Male 37° Flare
Connection 1 Size	Female 37° Flare with Large Nut	Connection 2 Tube Outside Diameter	1/4 inch

Product resources

Literature and Reference Materials

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
