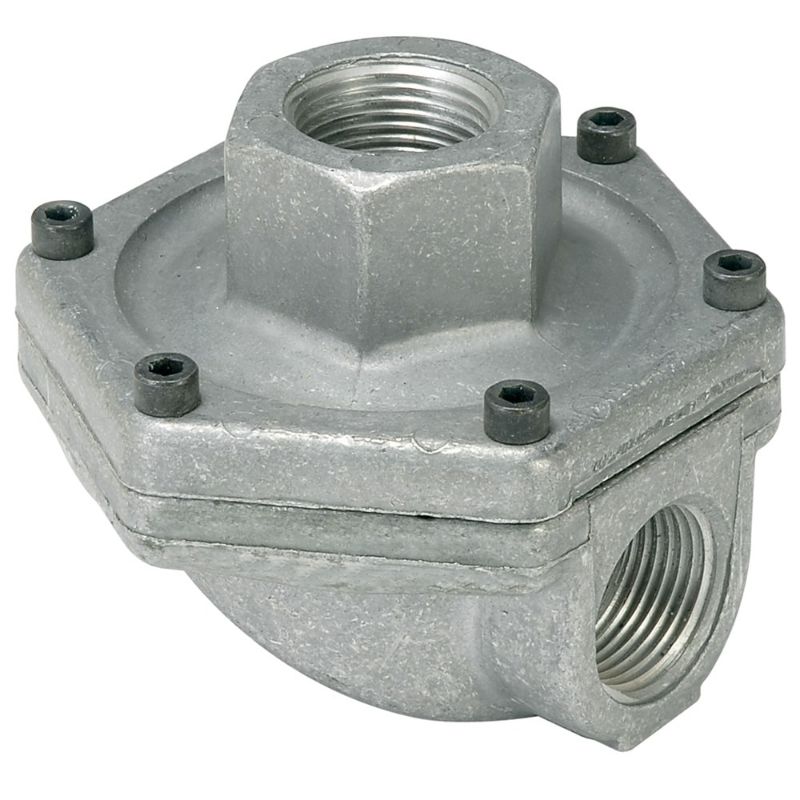

Parker 0R12NB - Quick Exhaust Valves - 0R Series

0R quick exhaust valves provide rapid exhaust of cylinder exhaust and increase cylinder stroke speeds. Diaphragm materials are available in Urethane, Nitrile, Fluorocarbon, and PTFE to meet a wide variety of temperature and pressure operating conditions.

AFP Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 0R12NB

$53.21/each

Products specifications

Attribute name	Attribute value
UOM	EA	Product Type	Rapid Exhaust
Body Material	Die Cast Aluminum	Mounting Type	Inline
Operating Temperature	-18 to 260	Seal Material	Urethane
Port Type	NPT	Operating Pressure	3 to 200
Flow Rate	150 to 550	Lubricant	None
Port Connection	Female to Female	Media	Air
Port Size	1/8	Flow Coefficient	2.7 to 10.0
Division	Pneumatic Division	Port Type	NPTF
Port 1 Size (inch)	1/8	Port 2 Size (inch)	1/8
Port 3 Size (inch)	1/4	Materials : Diaphragm	Standard - Urethane (Nitrile static seals)
Operating Temperature (F)	0 - 180
