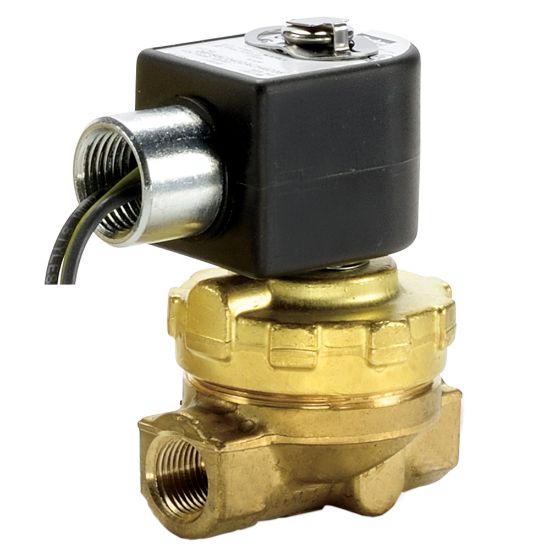

Parker 08F25CL332ACH4C05 - 25 & S5 Series - Water, Hot Water, & Steam Valves

Parker Fluid Control Division has a long history in manufacturing industry-leading steam and hot water valves. Robust and debris-tolerant internals, stainless steel seat, and integrated strainer facilitate long life and overall system health.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 08F25CL332ACH4C05

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Media	Hot Water	Function	Normally Closed (NC)
Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)	Port Size	1/2
Port Type	NPT	Installation	IOM 7320
Orifice Size	1/2	Body Material	Lead-Free Brass
Input Voltage	110/50	Seal Material	EPDM
Actuation Type	Internal Pilot	Power Consumption	13
Specifications Met	UL	Division	Fluid Control Division
Main Flow Coefficient	3.6	Ingress Protection Rating	NEMA 4X
Maximum Fluid Temperature	216	Preventive Maintenance Kit	08F25CL332ACHR
Maximum Ambient Temperature	167	Maximum Pressure Differential	235
Minimum Pressure Differential	1.0	Valve Type	2-Way
Maximum Steam Pressure	-	Media	Water, Hot Water
Function	Normally Closed	Coil Type	1/2" NPT Conduit w/ Leads (Incl. Ground Lead)
Port Size	1/2	Port Type	NPT
Installation	IOM 7320	Orifice Size	1/2
Body Material	Lead-Free Brass	Input Voltage	120/60, 110/50
Seal Material	EPDM	Actuation Type	Internally Piloted
Power Consumption	13.0	Specifications Met	UL, CSA Listed General Purpose Valve; SDWA Section 1417(d) brass; CE - Low Voltage, EMC
Main Flow Coefficient	3.6	Ingress Protection Rating	NEMA 4,4X
Maximum Fluid Temperature	216.0	Preventive Maintenance Kit	08F25CL332ACHR
Maximum Ambient Temperature	167.0	Maximum Pressure Differential	235.0
Minimum Pressure Differential	1.0	Valve Type	2 Way
Maximum Steam Pressure	-
