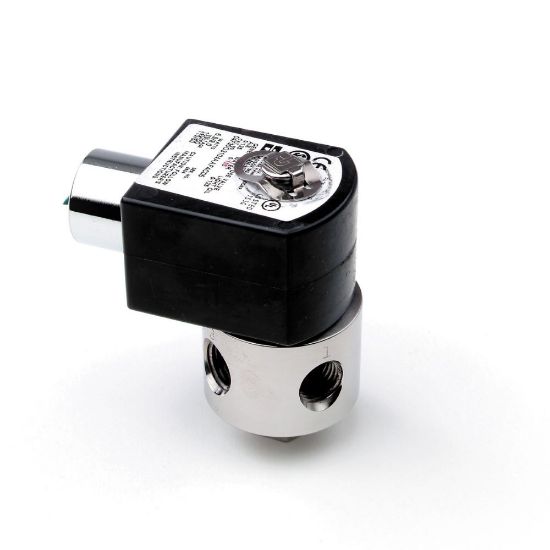

Parker 04F30C3104AAF4C01 - Parker 3-Way Normally Closed, 1/4" NPT General Purpose Solenoid Valves

Parker 3-Way Normally Closed, 1/4" NPT Solenoid Valves provide operating pressures up to 250 psi and flow factors up to 0.67 CV's. They come in stainless with multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 04F30C3104AAF4C01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Port Size	1/4 inch
Division	Fluid Control Division	Media	General Purpose for Air
Function	Normally Closed (NC)	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Valve Type	3-Way	Body Material	Stainless Steel
Input Voltage	24/60	Seal Material	NBR
Actuation Type	Direct Acting	Orifice 2 Size	n/a
Product Series	Gold Ring Series	Number of Ports	3
Power Consumption	6 W (AC)	Flow Coefficient 2	n/a
Coil Specifications Met	Class F	Maximum Fluid Temperature	180 °F
Minimum Fluid Temperature	0 °F	Maximum Pressure Differential	125 psi (AC)
Minimum Pressure Differential	0 psi	Main Orifice Size	1/16 inch
Additional Options	No Option	Exhaust Orifice Size	1/16 inch
Main Flow Coefficient	0.09 Cv	Exhaust Flow Coefficient	0.09 Cv
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Voltage (V)	24/60
Power (Watts)	6 Watt (AC)	Seal Material	NBR
Maximum Pressure Differential (psi)	125 psi (AC)	Mechanical Option	No Option
Orifice Main (inch)	1/16	Flow Factor Main (Cv)	0.09
