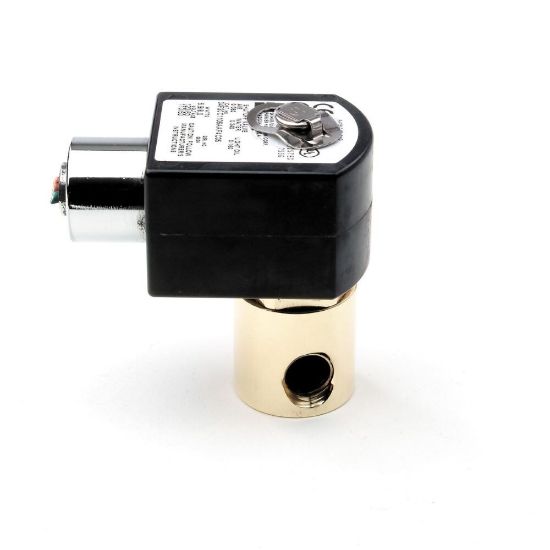

Parker 04F20O1106ACF4C05 - Parker 2-Way Normally Open, 1/4" NPT General Purpose Solenoid Valves

Parker 2-Way Normally Open, 1/4" NPT Solenoid Valves provide operating pressures up to 300 PSI and flow factors up to .96 CV's. They have brass bodies, multiple mounting positions and coil options for all general purpose flow control applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 04F20O1106ACF4C05

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Port Type	NPT	Body Material	Brass
Port Size	1/4 inch	Division	Fluid Control Division
Media	General Purpose for Air	Function	Normally Open (NO)
Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X	Valve Type	2-Way
Input Voltage	110/50-120/60	Seal Material	NBR
Actuation Type	Direct Acting	Orifice 1 Size	3/32 inch
Orifice 2 Size	n/a	Product Series	Gold Ring Series
Number of Ports	2	Power Consumption	11 W (AC)
Flow Coefficient 1	0.17 Cv	Flow Coefficient 2	n/a
Coil Specifications Met	Class F	Maximum Fluid Temperature	180 °F
Minimum Fluid Temperature	0 °F	Maximum Pressure Differential	300 psi (AC)
Minimum Pressure Differential	0 psi	Coil Type	1/2" NPT Conduit, 18" Leads, Class F, NEMA 4X
Voltage (V)	110/50-120/60	Power (Watts)	11 Watt (AC)
Seal Material	NBR	Flow Factor 1 (Cv)	0.17
Orifice 1 Size (inch)	3/32	Maximum Pressure Differential (psi)	300 psi (AC)
