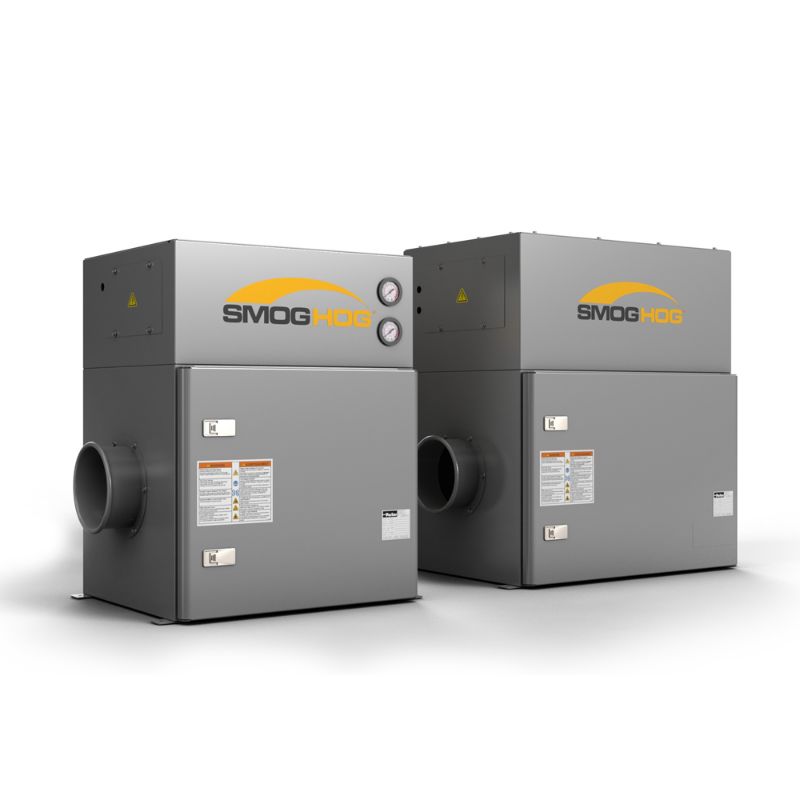

Parker 01-10243 - SHM - Machine Mounted media mist collector

Direct mount to machine mist collector for water and oil-based coolants. Ready to use, energy efficient, all-in-one, media filter mist collector. Simply install and connect input power. Additional accessories available.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 01-10243

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
Brand	SmogHog	Application	Mist, Smoke
Division	Industrial Gas Filtration and Generation Division	Color	Hog Gray
Paint Type	Powder Coated	Depth	23.59
Width	30.125	Height	35.44
Current	2.9 - 2.7	Equipment Type	Direct Mount Media Mist Filter
Number of Elements	4	Filter Element Type	Peach
Compatible After Filter	95% DOP or HEPA	Weight	225 lbs
Model Number	SHM-05C	Air Flow Rate	300 - 500 CFM
Input Supply Voltage	460V/3P/60H	Optional Accessories	After Filter, inlet connections
Control Method	Basic	Motor Power Output Rating	1.5 HP
