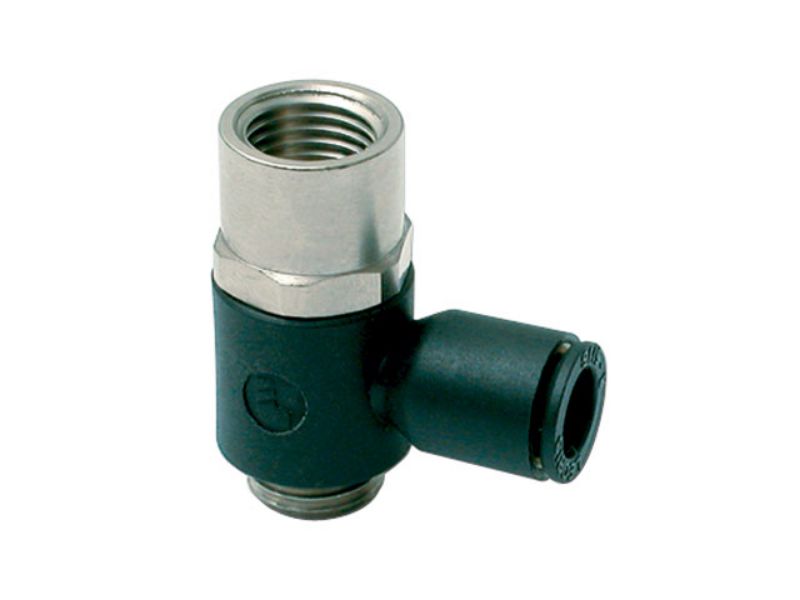

Parker 3124 04 19 - Legris Composite 3124 - Metric-BSPP

Banjo with Female Bolt Push-to-Connect Instant Pneumatic Fitting

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 3124 04 19

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Pkg Qty	10
Material	Composite, Nickel-Plated Brass	Outer Diameter 1	4 mm
Pkg Qty/UOM	10 EA	Thread 1	M5x0.8 Metric
Series	Legris LF3000	Thread 1 Type	Metric
Material	Composite, Nickel-Plated Brass	Configuration Type	Tube to Male
Parker Group	Fluid Connector	Inch/Metric	Metric
Outer Diameter 1 Inch/mm	mm	Parker Division	Fluid Systems Connector (Brass Products)
Configuration Sub-Type	Banjo with Female Bolt	Outer Diameter 1	4 mm
Trade Name	Legris	Thread 1	M5x0.8 Metric

Product resources

Legris Push-in Fittings (PDF)
