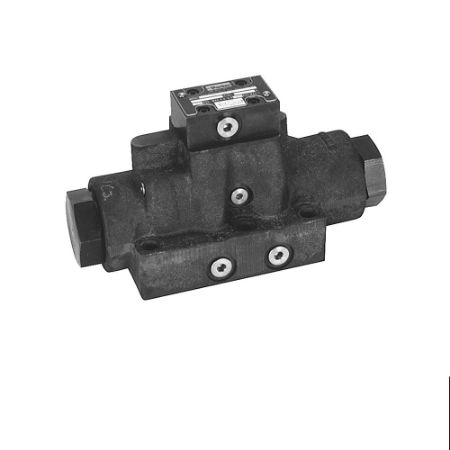

Oil Operated Directional Control Valve - D6P Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s D6P directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• Low pressure drop design
• Hardened spools provide long life

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	Seal Material	Division	Maximum Operating Pressure	Minimum Operating Temperature	Actuation Type	Maximum Flow Rate	Options	Mounting Type	Maximum Operating Temperature	Size	Body Material	Spool Code	Spool Position	Valve Type	Weight	Maximum Operating Pressure	Mounting Type	Maximum Flow Rate	Size
D6P11B2N	Quote Required	Quote Required	TBD	Nitrile	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	n/a	Subplate	+140	NFPA D08	Gray Iron	4-Way	Single Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11B2N60	Quote Required	Quote Required	TBD	Nitrile	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Pilot Choke Meter-in	Subplate	+140	NFPA D08	Gray Iron	4-Way	Spring Offset	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11B2N7	Quote Required	Quote Required	TBD	Nitrile	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Pilot Choke Meter-out	Subplate	+140	NFPA D08	Gray Iron	4-Way	Single Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11B2N8	Quote Required	Quote Required	TBD	Nitrile	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Stroke Adjust B End	Subplate	+140	NFPA D08	Gray Iron	4-Way	Single Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11B2N89	Quote Required	Quote Required	TBD	Nitrile	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Stroke Adjust A and B Ends	Subplate	+140	NFPA D08	Gray Iron	4-Way	Single Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11B2N9	Quote Required	Quote Required	TBD	Nitrile	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Stroke Adjust A End	Subplate	+140	NFPA D08	Gray Iron	4-Way	Single Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11B2V	Quote Required	Quote Required	TBD	Fluorocarbon	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	n/a	Subplate	+140	NFPA D08	Gray Iron	4-Way	Single Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11B2V60	Quote Required	Quote Required	TBD	Fluorocarbon	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Pilot Choke Meter-in	Subplate	+140	NFPA D08	Gray Iron	4-Way	Single Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11B2V7	Quote Required	Quote Required	TBD	Fluorocarbon	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Pilot Choke Meter-out	Subplate	+140	NFPA D08	Gray Iron	4-Way	Single Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11B2V8	Quote Required	Quote Required	TBD	Fluorocarbon	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Stroke Adjust B End	Subplate	+140	NFPA D08	Gray Iron	4-Way	Single Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11B2V89	Quote Required	Quote Required	TBD	Fluorocarbon	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Stroke Adjust A and B Ends	Subplate	+140	NFPA D08	Gray Iron	4-Way	Single Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11B2V9	Quote Required	Quote Required	TBD	Fluorocarbon	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Stroke Adjust A End	Subplate	+140	NFPA D08	Gray Iron	4-Way	Single Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11C2N	Quote Required	Quote Required	TBD	Nitrile	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	n/a	Subplate	+140	NFPA D08	Gray Iron	4-Way	Double Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11C2N60	Quote Required	Quote Required	TBD	Nitrile	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Pilot Choke Meter-in	Subplate	+140	NFPA D08	Gray Iron	4-Way	Double Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11C2N7	Quote Required	Quote Required	TBD	Nitrile	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Pilot Choke Meter-out	Subplate	+140	NFPA D08	Gray Iron	4-Way	Double Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11C2N8	Quote Required	Quote Required	TBD	Nitrile	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Stroke Adjust B End	Subplate	+140	NFPA D08	Gray Iron	4-Way	Double Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11C2N89	Quote Required	Quote Required	TBD	Nitrile	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Stroke Adjust A and B Ends	Subplate	+140	NFPA D08	Gray Iron	4-Way	Double Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11C2N9	Quote Required	Quote Required	TBD	Nitrile	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Stroke Adjust A End	Subplate	+140	NFPA D08	Gray Iron	4-Way	3-Position	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11C2V	Quote Required	Quote Required	TBD	Fluorocarbon	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	n/a	Subplate	+140	NFPA D08	Gray Iron	4-Way	Double Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
D6P11C2V60	Quote Required	Quote Required	TBD	Fluorocarbon	Hydraulic Valve Systems Division	3000	-4	Hydraulic Pressure	100	Pilot Choke Meter-in	Subplate	+140	NFPA D08	Gray Iron	4-Way	Double Operator	Oil Operated Directional Control Valve	24.2	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5
