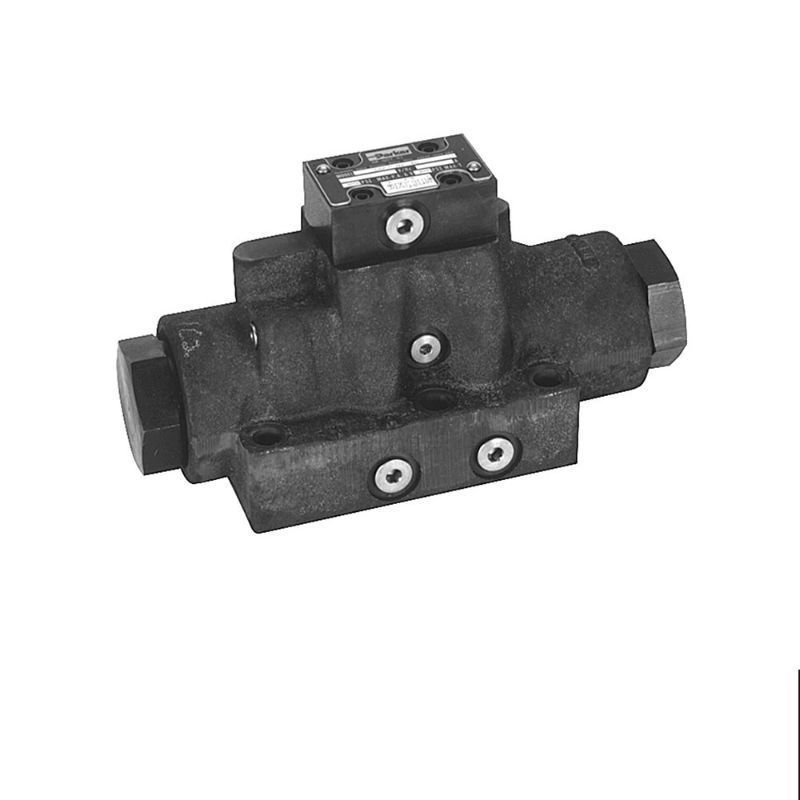

Parker D6P1B2V - Oil Operated Directional Control Valve - D6P Series

Parker’s D6P directional control valves are 5-chamber, pilot operated valves.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. D6P1B2V

$0.01

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000
Body Material	Gray Iron	Division	Hydraulic Valve Systems Division
Spool Position	Single Operator	Maximum Flow Rate	100
Weight	24.2	Options	n/a
Actuation Type	Hydraulic Pressure	Valve Type	Oil Operated Directional Control Valve
Size	NFPA D05H	Minimum Operating Temperature	-4
Seal Material	Fluorocarbon	Maximum Operating Temperature	+140
Mounting Type	Subplate	Spool Code	4-Way
Maximum Operating Pressure	3000 PSI	Maximum Flow Rate	Up to 100 GPM depending on spool
Size	NFPA DO8, CETOP 8, DIN NG25, NFPA DO5H, CETOP 5	Mounting Type	Subplate

Product resources

Literature and Reference Materials

Oil Operated Directional Control Valve Catalog - D6P series (PDF)
