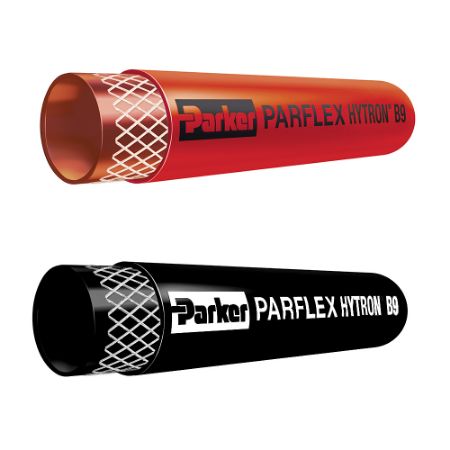

OBSOLETE: Transfer Hose - B9
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s B9 General Purpose Transfer Hose is a very flexible hose offering exceptional flexibility. It is a lightweight hose designed for use in applications that involve low pressure transmission of air, oil, water and coolants.
Markets:
• Fluid Handling
• Industrial
• Mobile Equipment
• Factory Automation
Features/Benefits:
• Excellent flexibility for ease of installation
• Lightweight for simplified routing and usage
Applications:
• Low pressure transmission of air, oil, water, and coolants
• Robotics
Technical Specifications:
• Tube: Specially formulated polyurethane
• Reinforcement: Fiber
• Cover: Red specially formulated polyurethane, non-perforated
• Hose I.D. is nominal
• Hose O.D. is maximum
Read More...Markets:
• Fluid Handling
• Industrial
• Mobile Equipment
• Factory Automation
Features/Benefits:
• Excellent flexibility for ease of installation
• Lightweight for simplified routing and usage
Applications:
• Low pressure transmission of air, oil, water, and coolants
• Robotics
Technical Specifications:
• Tube: Specially formulated polyurethane
• Reinforcement: Fiber
• Cover: Red specially formulated polyurethane, non-perforated
• Hose I.D. is nominal
• Hose O.D. is maximum
| Action | Part No. | Availability | Partner Available | Price | UOM | Media | Minimum Operating Temperature | Division | Maximum Operating Pressure | Design Factor | Minimum Bend Radius | Vacuum Pressure Rating | Specifications Met | Weight | Compatible Fitting | Hose Reinforcement Material | Application | Maximum Operating Temperature | Size | Outside Diameter | Inside Diameter | Hose Inner Tube Material | Cover Material | Color | Hose I.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B903 | Quote Required | TBD | Air | -40 | Parflex Division | 250 | 4:1 | 1 | 28 | N/A | 0.04 | 56 Series | Fiber | Pneumatics | 200 | -3 | 0.390 | 3/16 | Specially Formulated Polyurethane | Polyurethane Specially Formulated | Red | 0.1875 | |||
| B903BK | Quote Required | TBD | Air | -40 | Parflex Division | 250 | 4:1 | 1 | 28 | N/A | 0.04 | 56 Series | Fiber | Fluid Handling | 200 | -3 | 0.390 | 3/16 | Specially Formulated Polyurethane | Polyurethane Specially Formulated | Black | 0.1875 | |||
| B904 | Quote Required | TBD | Lubricants (Oils) | -40 °F | Parflex Division | 1.7 MPa | 4:1 | 38 mm | 28 Inch-Hg | N/A | 0.07 kg/m | 56 Series | Fiber | Pneumatics | 200 °F | -4 | 11.7 mm | 6 mm | Specially Formulated Polyurethane | Polyurethane Specially Formulated | Red | 0.25 | |||
| B904BK | Quote Required | TBD | Coolants | -40 °C | Parflex Division | 250 psi | 4:1 | 38 mm | 711.2 mm-Hg | N/A | 0.05 lb/ft | 82 Series | Fiber | Pneumatics | 93 °C | -4 | 11.7 mm | 1/4 inch | Specially Formulated Polyurethane | Polyurethane Specially Formulated | Black | 0.25 | |||
| B905 | Quote Required | TBD | Air | -40 | Parflex Division | 250 | 4:1 | 2 | 28 | N/A | 0.08 | 56 Series | Fiber | Fluid Handling | 200 | -5 | 0.550 | 5/16 | Specially Formulated Polyurethane | Polyurethane Specially Formulated | Red | 0.3125 | |||
| B905BK | Quote Required | TBD | Air | -40 | Parflex Division | 250 | 4:1 | 2 | 28 | N/A | 0.08 | 56 Series | Fiber | Fluid Handling | 200 | -5 | 0.550 | 5/16 | Specially Formulated Polyurethane | Polyurethane Specially Formulated | Black | 0.3125 | |||
| B906 | Quote Required | 27 In Stock | $4.02 | FT | Lubricants (Oils) | -40 °C | Parflex Division | 250 psi | 4:1 | 76 mm | 28 Inch-Hg | N/A | 0.13 kg/m | 56 Series | Fiber | Fluid Handling | 93 °C | -6 | 16.3 mm | 3/8 inch | Specially Formulated Polyurethane | Polyurethane Specially Formulated | Red | 0.375 | |
| B906BK | Quote Required | 157 In Stock | $4.02 | FT | Coolants | -40 °F | Parflex Division | 1.7 MPa | 4:1 | 3 inch | 711.2 mm-Hg | N/A | 0.13 kg/m | 82 Series | Fiber | Fluid Handling | 200 °F | -6 | 0.640 inch | 3/8 inch | Specially Formulated Polyurethane | Polyurethane Specially Formulated | Black | 0.375 | |
| B908 | Quote Required | TBD | Air | -40 | Parflex Division | 250 | 4:1 | 3 | 28 | N/A | 0.13 | 56 Series | Fiber | Fluid Handling | 200 | -8 | 0.780 | 1/2 | Specially Formulated Polyurethane | Polyurethane Specially Formulated | Red | 0.5 | |||
| B908BK | Quote Required | TBD | Air | -40 | Parflex Division | 250 | 4:1 | 3 | 28 | N/A | 0.13 | 56 Series | Fiber | Fluid Handling | 200 | -8 | 0.780 | 1/2 | Specially Formulated Polyurethane | Polyurethane Specially Formulated | Black | 0.5 | |||
| B910 | Quote Required | TBD | Air | -40 | Parflex Division | 250 | 4:1 | 4 | 28 | N/A | 0.20 | 56 Series | Fiber | Pneumatics | 200 | -10 | 0.920 | 5/8 | Specially Formulated Polyurethane | Polyurethane Specially Formulated | Red | 0.625 | |||
| B910BK | Quote Required | TBD | Lubricants (Oils) | -40 °F | Parflex Division | 17 bar | 4:1 | 102 mm | 711.2 mm-Hg | N/A | 0.30 kg/m | 56 Series | Fiber | Pneumatics | 93 °C | -10 | 23.4 mm | 5/8 inch | Specially Formulated Polyurethane | Polyurethane Specially Formulated | Black | 0.625 |
