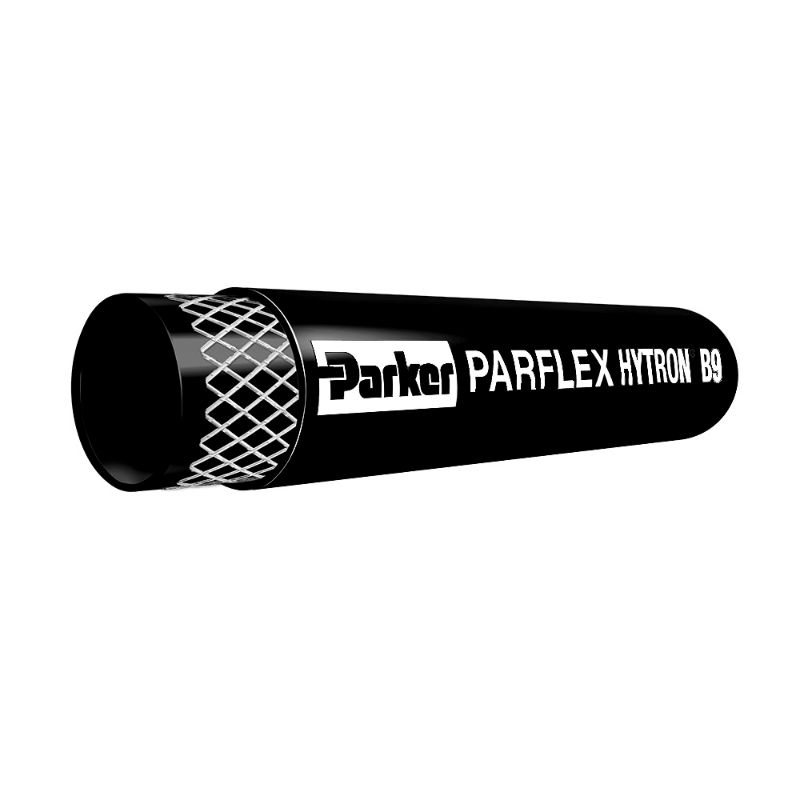

Parker B906BK - OBSOLETE: Transfer Hose - B9

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

AFP Availability:	Quote Required
Partner Available:	124 In Stock

Brand Parker

Part No. B906BK

$4.02/foot

Products specifications

Attribute name	Attribute value
UOM	FT	Outside Diameter	0.640 inch
Inside Diameter	3/8 inch	Vacuum Pressure Rating	711.2 mm-Hg
Maximum Operating Temperature	200 °F	Division	Parflex Division
Media	Coolants	Size	-6
Compatible Fitting	82 Series	Hose Inner Tube Material	Specially Formulated Polyurethane
Design Factor	4:1	Application	Fluid Handling
Minimum Operating Temperature	-40 °F	Minimum Bend Radius	3 inch
Cover Material	Polyurethane Specially Formulated	Specifications Met	n/a
Hose Reinforcement Material	Fiber	Weight	0.13 kg/m
Maximum Operating Pressure	1.7 MPa	Color	Black
Hose I.D. (inch)	0.375
