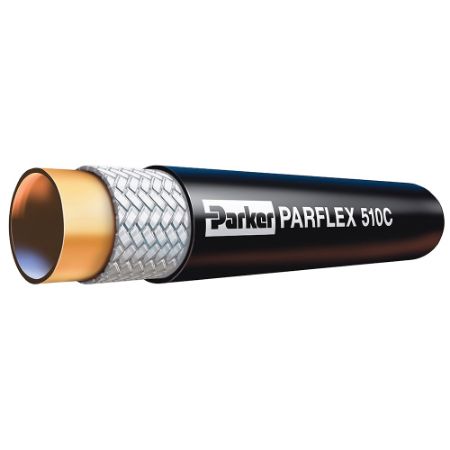

OBSOLETE: Flexible Hose - 510C

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.

Parker’s 510C flexible hose features good flexibility and abrasion resistance, delivering smooth installation and added protection for general hydraulic applications with medium pressure requirements. Parflex mobile hoses have inherently clean core tubes and long-length availability that assist in high quantity assembly. The 510C hydraulic hose, offers sufficient noise dampening in power steering systems. This added value has been recognized among operators on turf maintenance equipment that complained of a pulse in the steering column. Also, the volumetric expansion rate of Parflex 510C hose naturally damped the pressure surge, eliminating the pulse in the steering column.

With good abrasion resistance, flexibility, and long length capabilities, the Parflex 510C is the optimal solution for hydraulic applications that require medium pressure service. Review the literature listed under the Product Support tab for further information.

Markets:

• Construction

• Fluid Handling

• Mobile Equipment

• Industrial Hydraulics

• Machine Tool

Features/Benefits:

• Good abrasion resistance for added protection

• Extreme flexibility for simplified routing and installation

• Low coefficient of friction cover

Applications:

• Medium pressure service for both field attachable and permanent fittings

• Turf care equipment

• Machine tool

Certifications/Compliance:

• Meets/Exceeds SAE 100R7 except -2

• MSHA Accepted except -4

Technical Specifications:

• Tube: Copolyester

• Reinforcement: Fiber

• Cover: Polyurethane

• 3/16” and 1/4” working pressure reduced to 3,000 and 2,750 psi respectively when using field attachable couplings

• Hose I.D. is nominal

• Hose O.D. is maximum

View as Grid List

Sort by

Display per page

Part No.	Availability	Partner Available	Price	UOM	Weight	Maximum Operating Pressure	Disclaimer	Outside Diameter	Inside Diameter	Division	Maximum Operating Temperature	Compatible Fitting	Media	Application	Minimum Operating Temperature	Specifications Met	Minimum Bend Radius	Hose I.D. (inch)	Hose Style
510C-3	Quote Required	715 In Stock	$4.69/foot	FT	0.05	3250	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	0.430	5	Parflex Division	212	56 Series	Air	General Purpose	-40	MSHA	3/4	3/16	Single
510C-4	57 In Stock	269 In Stock	$3.70/foot	FT	0.08 kg/m	20.7 MPa	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	0.470 inch	6 mm	Parflex Division	100 °C	56 Series	Air	Pneumatics	-40 °F	SAE 100R7	38 mm	1/4	Single
510C-4-4	101 In Stock	68 In Stock	$9.54/foot	FT	0.10 lb/ft	20.7 MPa		0.940 inch	6 mm	Parflex Division	212 °F	56 Series	Petroleum Hydraulic Fluids	Mobile Hydraulic Equipment	-40 °C	SAE 100R7	1-1/2 inch	1/4	Twin-line
510C-5	505 In Stock	156 In Stock	$4.62/foot	FT	0.08	2500	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	0.570	8	Parflex Division	212	56 Series	Air	General Purpose	-40	MSHA	1-3/4	5/16	Single
510C-6	260 In Stock	781 In Stock	$4.01/foot	FT	0.14 kg/m	15.5 MPa	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	16.3 mm	10 mm	Parflex Division	100 °C	51 Series	Water	Machine Tools	-40 °F	SAE 100R7	51 mm	3/8	Single
510C-8	40 In Stock	593 In Stock	$6.16/foot	FT	0.22 kg/m	15.5 MPa	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	0.810 inch	13 mm	Parflex Division	212 °F	56 Series	Water	Mobile Hydraulic Equipment	-40 °F	SAE 100R7	3 inch	1/2	Single
510C-8-8	20 In Stock	36 In Stock	$15.91/foot	FT	0.30 lb/ft	15.5 MPa		1.62 mm	13 mm	Parflex Division	100 °C	56 Series	Petroleum Hydraulic Fluids	Hydraulics	-40 °C	SAE 100R7	76 mm	1/2	Twin-line
