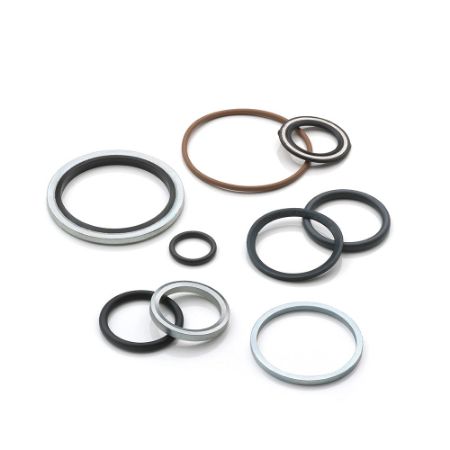

O-Rings, Seals and Retaining Rings for Industrial Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker offers a full line of high quality replacement O-rings, Seals and Retaining Rings for industrial fittings and adapters.
Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Standard o-rings and seals supplied with tube fittings and adapters are 90 durometer hard nitrile with high extrusion resistance making them suitable for very high pressure static applications.
• Fluorocarbon o-rings and seals are available for higher temperature specifications.
• For applications using different media or higher temperatures, additonal O-ring and seal materials are available upon request.
• Broad range of options: O-ring Face Seal (ORFS) tube end, SAE, ISO 6149, metric, BSPP and JIS B2351 port ends, and SAE 4-bolt flange o-rings, as well as metric and BSPP retaining rings and BSPP bonded seals.
Applications:
• Replacement o-rings, seals and retaining rings for fitting and adapters in hydraulic fluid and gas handling connections
Read More...Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Standard o-rings and seals supplied with tube fittings and adapters are 90 durometer hard nitrile with high extrusion resistance making them suitable for very high pressure static applications.
• Fluorocarbon o-rings and seals are available for higher temperature specifications.
• For applications using different media or higher temperatures, additonal O-ring and seal materials are available upon request.
• Broad range of options: O-ring Face Seal (ORFS) tube end, SAE, ISO 6149, metric, BSPP and JIS B2351 port ends, and SAE 4-bolt flange o-rings, as well as metric and BSPP retaining rings and BSPP bonded seals.
Applications:
• Replacement o-rings, seals and retaining rings for fitting and adapters in hydraulic fluid and gas handling connections
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Width | Maximum Operating Temperature | Tube Outside Diameter | Minimum Operating Temperature | Color | Materials of Construction | Durometer | Dash Number | Product Type | Product Style | Inside Diameter | Outside Diameter | Compatible Fitting | Fitting Thread Size | Polymer Material Options | Body Material | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2-011 FKM | Quote Required | 153 In Stock | $1.00 | EA | Tube Fittings Division | n/a | 400 °F | 1/4 inch | -15 °F | Brown | n/a | 90 Shore A | 4 | O-Ring | ORFS | n/a | n/a | Seal Lok O-ring Face Seal | n/a | Fluorocarbon (FKM, FPM) | Fluorocarbon | ||
| 2-011 NBR | 244 In Stock | 510 In Stock | $0.58 | EA | Tube Fittings Division | n/a | 250 °F | 6 mm | -30 °F | Black | n/a | 90 Shore A | 4 | O-Ring | ORFS | 0.3 inch | n/a | Seal Lok O-ring Face Seal | n/a | Nitrile Butadiene Rubber (NBR, XNBR) | Nitrile-Butadiene | ||
| 2-012 FKM | Quote Required | 283 In Stock | $1.17 | EA | Tube Fittings Division | 1.78 mm | 400 °F | 10 mm | -15 °F | Brown | n/a | 90 Shore A | 6 | O-Ring | ORFS | 0.36 inch | n/a | ISO 9974-1/DIN 3852-1 Port | n/a | Fluorocarbon (FKM, FPM) | Fluorocarbon | ||
| 2-012 NBR | 763 In Stock | 594 In Stock | $0.64 | EA | Tube Fittings Division | 1.78 mm | 250 °F | 3/8 inch | -30 °F | Black | n/a | 90 Shore A | 6 | O-Ring | Metric Port | 0.36 inch | n/a | Seal Lok O-ring Face Seal | n/a | Nitrile Butadiene Rubber (NBR, XNBR) | Nitrile-Butadiene | 8.883453237410072E-5 lb | |
| 2-013 FKM | Quote Required | 52 In Stock | $1.42 | EA | Tube Fittings Division | 1.78 mm | 400 °F | n/a | -15 °F | Brown | n/a | 90 Shore A | n/a | O-Ring | Metric Port | n/a | n/a | ISO 9974-1/DIN 3852-1 Port | n/a | Fluorocarbon (FKM, FPM) | Fluorocarbon | ||
| 2-013 NBR | Quote Required | 14 In Stock | $0.66 | EA | Tube Fittings Division | 1.78 mm | 250 °F | 5/8 inch | -30 °F | Black | n/a | 90 Shore A | 10 | O-Ring | Metric Port | 0.43 inch | n/a | Triple-Lok 2 Soft Seal 37° Flare Fitting | n/a | Nitrile Butadiene Rubber (NBR, XNBR) | Nitrile-Butadiene | ||
| 2-014 FKM | Quote Required | 143 In Stock | $1.62 | EA | Tube Fittings Division | 0.07 inch | 400 °F | 1/2 inch | -15 °F | Brown | n/a | 90 Shore A | 8 | O-Ring | ORFS | 0.49 inch | n/a | Seal Lok O-ring Face Seal | n/a | Fluorocarbon (FKM, FPM) | Fluorocarbon | ||
| 2-014 NBR | 575 In Stock | 462 In Stock | $0.82 | EA | Tube Fittings Division | 0.07 inch | 250 °F | 1/2 inch | -30 °F | Black | n/a | 90 Shore A | 8 | O-Ring | ORFS | 0.49 inch | n/a | Seal Lok O-ring Face Seal | n/a | Nitrile Butadiene Rubber (NBR, XNBR) | Nitrile-Butadiene | 1.5792805755395688E-4 lb | |
| 2-016 FKM | Quote Required | 221 In Stock | $0.02 | EA | Tube Fittings Division | 0.07 inch | 400 °F | 15 mm | -15 °F | Brown | n/a | 90 Shore A | 10 | O-Ring | ORFS | n/a | n/a | Seal Lok O-ring Face Seal | n/a | Fluorocarbon (FKM, FPM) | Fluorocarbon | ||
| 2-016 NBR | 261 In Stock | 941 In Stock | $1.11 | EA | Tube Fittings Division | n/a | 250 °F | 14 mm | -30 °F | Black | n/a | 90 Shore A | 12 | O-Ring | ORFS | n/a | n/a | Seal Lok O-ring Face Seal | n/a | Nitrile Butadiene Rubber (NBR, XNBR) | Nitrile-Butadiene | 2.3286330935251803E-4 lb | |
| 2-017 FKM | Quote Required | TBD | Tube Fittings Division | n/a | 400 | n/a | -15 | Brown | n/a | 90 | n/a | O-Ring | Metric Port | n/a | n/a | ISO 9974-1/DIN 3852-1 Port | n/a | Fluorocarbon (FKM, FPM) | Fluorocarbon | ||||
| 2-017 NBR | Quote Required | TBD | Tube Fittings Division | 0.07 inch | 250 °F | 7/8 inch | -30 °F | Black | n/a | 90 Shore A | 14 | O-Ring | Metric Port | 17.17 mm | n/a | ISO 9974-1/DIN 3852-1 Port | n/a | Nitrile Butadiene Rubber (NBR, XNBR) | Nitrile-Butadiene | ||||
| 2-018 FKM | Quote Required | 680 In Stock | $2.59 | EA | Tube Fittings Division | 0.07 inch | 400 °F | 20 mm | -15 °F | Brown | n/a | 90 Shore A | 12 | O-Ring | ORFS | 18.77 mm | n/a | ISO 9974-1/DIN 3852-1 Port | M22x1.5 mm | Fluorocarbon (FKM, FPM) | Fluorocarbon | ||
| 2-018 NBR | 524 In Stock | 340 In Stock | $0.99 | EA | Tube Fittings Division | 0.07 inch | 250 °F | 20 mm | -30 °F | Black | n/a | 90 Shore A | 12 | O-Ring | ORFS | 0.74 inch | n/a | ISO 9974-1/DIN 3852-1 Port | n/a | Nitrile Butadiene Rubber (NBR, XNBR) | Nitrile-Butadiene | 3.3041007194244614E-4 lb | |
| 2-019 FKM | Quote Required | TBD | Tube Fittings Division | 1.78 mm | 400 °F | n/a | -15 °F | Brown | n/a | 90 Shore A | n/a | O-Ring | Metric Port | n/a | n/a | ISO 9974-1/DIN 3852-1 Port | M24x1.5 mm | Fluorocarbon (FKM, FPM) | Fluorocarbon | ||||
| 2-019 NBR | Quote Required | TBD | Tube Fittings Division | n/a | 250 °F | n/a | -30 °F | Black | n/a | 90 Shore A | 16 | O-Ring | Metric Port | n/a | n/a | ISO 9974-1/DIN 3852-1 Port | M24x1.5 mm | Nitrile Butadiene Rubber (NBR, XNBR) | Nitrile-Butadiene | ||||
| 2-020 FKM | Quote Required | TBD | Tube Fittings Division | 0.07 inch | 400 °F | 7/8 inch | -15 °F | Brown | n/a | 90 Shore A | 14 | O-Ring | ORFS | 0.86 inch | n/a | Seal Lok O-ring Face Seal | n/a | Fluorocarbon (FKM, FPM) | Fluorocarbon | ||||
| 2-020 NBR | Quote Required | TBD | Tube Fittings Division | n/a | 250 °F | 22 mm | -30 °F | Black | n/a | 90 Shore A | 14 | O-Ring | ORFS | 0.86 inch | n/a | Seal Lok O-ring Face Seal | n/a | Nitrile Butadiene Rubber (NBR, XNBR) | Nitrile-Butadiene | ||||
| 2-021 FKM | Quote Required | 180 In Stock | $3.17 | EA | Tube Fittings Division | 0.07 inch | 400 °F | 25 mm | -15 °F | Brown | n/a | 90 Shore A | 16 | O-Ring | ORFS | 0.93 inch | n/a | Seal Lok O-ring Face Seal | n/a | Fluorocarbon Rubber (FKM, FPM) | Fluorocarbon | 5.035971223021584E-4 lb | |
| 2-021 NBR | 252 In Stock | 409 In Stock | $1.10 | EA | Tube Fittings Division | n/a | 250 °F | 25 mm | -30 °F | Black | n/a | 90 Shore A | 16 | O-Ring | ORFS | 0.93 inch | n/a | Seal Lok O-ring Face Seal | n/a | Nitrile Butadiene Rubber (NBR, XNBR) | Nitrile-Butadiene | 5.035971223021584E-4 lb |
