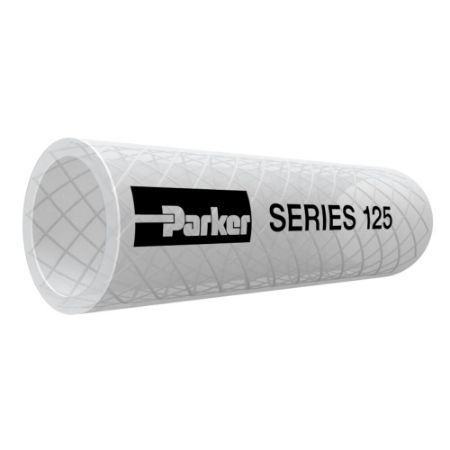

NEXBRAID® PVC Clear Standard Wall General Service Hose, Series 125

Parker's Series 125 Nexbraid PVC Clear Standard Wall General Service Hose provides medium pressure standard duty service across multiple applications. The clear, smooth tube does not impart taste or odor to material being conveyed, allows unimpeded flow and easy and quick observation of the transfer process. The hose is resistant to abrasion and weathering for maximum performance.

Markets:

• Food and Beverage

• General Industrial

Features/Benefits:

• Tube: Clear PVC for sanitary transfer to 150°F.

• Reinforcement: Multiple textile plies for strength and durability.

• Cover: Clear PVC for easy visual observation, and abrasion and weathering resistance.

Applications:

-media

• Air

• Dry abrasive materials

• Food

• Potable water

-usage

• Conduit

• Harness

• In-plant transfer

• Laboratories

Industry Standards:

• CFIA Compliant

• EU: Meets requirements and amendments of Resolution AP(89) for food contact.

• FDA

• NSF 51 Listed certified to 180°F (82°C)

• USP Class VI Rated

Safety/Technical:

• Light suction/vacuum

• Available in non-phthalate formulations.

Warnings:

• Working pressures are at +68°F (+20°C). Higher temperatures reduce the available working pressure.

• Couplings attached with bands or clamps may reduce the working pressure of the hose assembly to less than the maximum rated working pressure of the hose. Refer to NAHAD Industrial Hose Assembly Guidelines.
