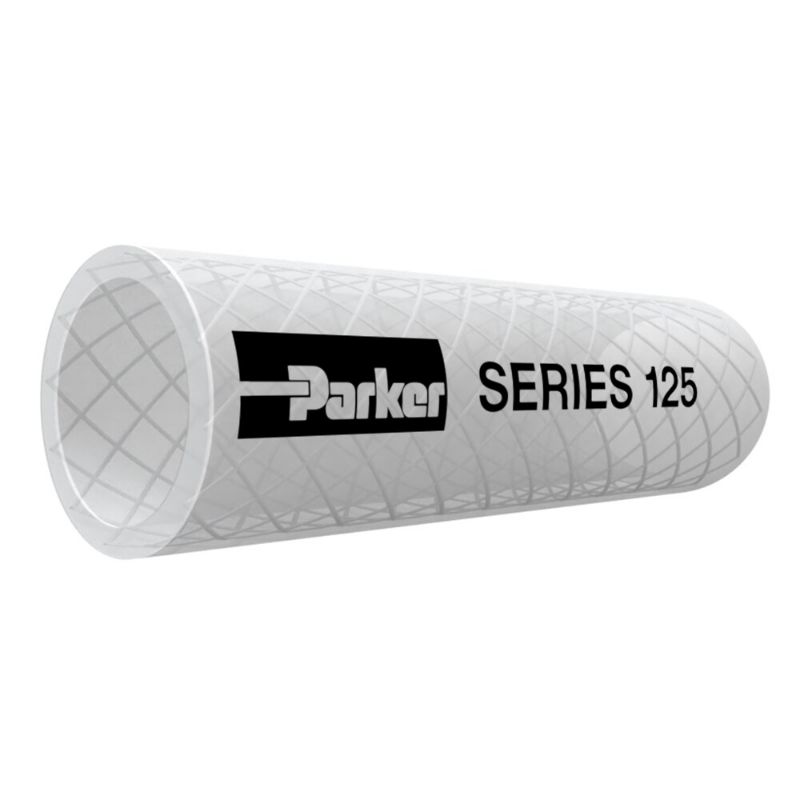

Parker 125-03000300 - NEXBRAID® PVC Clear Standard Wall General Service Hose, Series 125

Nexbraid PVC Clear Standard Wall General Service Hose is designed for transfer of abrasives, air, food particulates, sanitary products and potable water in applications to 150°F and 250 psi, Series 125

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 125-03000300

$0.83

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	FT	Division	Hose Products Division
Specifications Met	NSF 51 (certified to 180°F / 82°C)	Package Type	Coil
Vacuum Pressure Rating	Light	Hose Inner Tube Material	PVC
Maximum Operating Temperature	65 °C	Minimum Operating Temperature	25 °F
Maximum Operating Pressure	250 psi	Cover Color	Blue
Weight	0.05 lb/ft	Division	Hose Products Division
Application	PVC Hose	Outside Diameter	0.380 inch
Media	Food Abrasive Powders (Granules)	Cover Material	PVC
Cover Structure	Smooth	Inside Diameter	4.8 mm
Length per Package	300 ft	Minimum Bend Radius	n/a
Hose Reinforcement Material	2 Plies of Textile	Hose I.D. (inch)	3/16
Maximum Working Pressure (psi)	250

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
