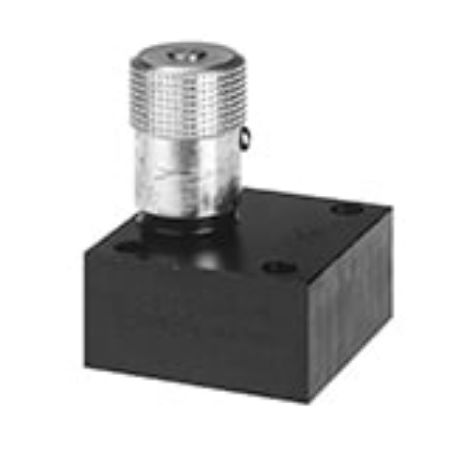

Needle Valve, Subplate Mounted – NS Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s NS series needle valve allows fine tuning at low flow with the first three turns of the adjusting knob, with full-open flow plus conventional precision throttling with the final three turns of the knob.
Markets
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits
• Tamperproof option available
• Set screw locks the valve on a desired setting
• Port sizes available in 5 sizes from 1/4” to 1”
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
Applications
• Suitable for general hydraulic applications
Read More...Markets
• Factory Automation
• Machine Tools
• Marine
• Material Handling
• Mining
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Molding
• Oil &Gas
• Power Generation
• Vehicle Assembly Facilities
Features/Benefits
• Tamperproof option available
• Set screw locks the valve on a desired setting
• Port sizes available in 5 sizes from 1/4” to 1”
• The exclusive “Colorflow” color-band provide an accurate visual indication of setting
Applications
• Suitable for general hydraulic applications
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Operating Pressure | Mounting Type | Maximum Operating Temperature | Valve Material | For Fluid Type | Product Style | Division | Connection Size | Maximum Flow Rate | Body Material | Seal Material | Connection Type | Minimum Operating Temperature | Actuation Type | Knob Option | Needle option | Seal Material | Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| NS1200S | Quote Required | $2,493.00 | EA | 3000 psi | Subplate | +200 °F | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 3/4" | 25 Gal/min | Steel | Nitrile | NPT | -40 °F | Hydraulic Pressure | Standard | Standard | Nitrile | 3/4" | ||
| NS1200SF | Quote Required | TBD | 3000 psi | Subplate | +200 °F | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 3/4" | 25 Gal/min | Nitrile | NPT | -40 °F | Hydraulic Pressure | Finger Screw | Standard | Nitrile | 3/4" | ||||
| NS1200SF-V | Quote Required | TBD | 3000 | Subplate | +200 | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 3/4" | 25 | Fluorocarbon | NPT | -40 | Hydraulic Pressure | Finger Screw | Standard | Fluorocarbon | 3/4" | ||||
| NS1200ST | Quote Required | TBD | 3000 | Subplate | +200 | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 3/4" | 25 | Nitrile | NPT | -40 | Hydraulic Pressure | Tamperproof | Standard | Nitrile | 3/4" | ||||
| NS1200ST-V | Quote Required | TBD | 3000 | Subplate | +200 | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 3/4" | 25 | Fluorocarbon | NPT | -40 | Hydraulic Pressure | Tamperproof | Standard | Fluorocarbon | 3/4" | ||||
| NS1200S-V | Quote Required | TBD | 3000 psi | Subplate | +200 °F | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 3/4" | 25 Gal/min | Fluorocarbon | NPT | -40 °F | Hydraulic Pressure | Standard | Standard | Fluorocarbon | 3/4" | ||||
| NS1600S | Quote Required | $5,229.75 | EA | 3000 psi | Subplate | +200 °F | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1" | 40 Gal/min | Nitrile | NPT | -40 °F | Hydraulic Pressure | Standard | Standard | Nitrile | 1" | |||
| NS1600SF | Quote Required | TBD | 3000 psi | Subplate | +200 °F | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1" | 40 Gal/min | Nitrile | NPT | -40 °F | Hydraulic Pressure | Finger Screw | Standard | Nitrile | 1" | ||||
| NS1600SF-V | Quote Required | TBD | 3000 | Subplate | +200 | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1" | 40 | Fluorocarbon | NPT | -40 | Hydraulic Pressure | Finger Screw | Standard | Fluorocarbon | 1" | ||||
| NS1600ST | Quote Required | TBD | 3000 | Subplate | +200 | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1" | 40 | Nitrile | NPT | -40 | Hydraulic Pressure | Tamperproof | Standard | Nitrile | 1" | ||||
| NS1600ST-V | Quote Required | TBD | 3000 | Subplate | +200 | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1" | 40 | Fluorocarbon | NPT | -40 | Hydraulic Pressure | Tamperproof | Standard | Fluorocarbon | 1" | ||||
| NS1600S-V | Quote Required | $5,506.50 | EA | 3000 psi | Subplate | +200 °F | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1" | 40 Gal/min | Fluorocarbon | NPT | -40 °F | Hydraulic Pressure | Standard | Standard | Fluorocarbon | 1" | |||
| NS400S | Quote Required | 1 Limited Stock | $1,230.00 | EA | 3000 psi | Subplate | +200 °F | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1/4" | 5 Gal/min | Nitrile | NPT | -40 °F | Hydraulic Pressure | Standard | Standard | Nitrile | 1/4" | ||
| NS400S4 | Quote Required | TBD | 3000 psi | Subplate | +200 °F | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1/4" | 5 Gal/min | Nitrile | NPT | -40 °F | Hydraulic Pressure | Standard | Fine Metering | Nitrile | 1/4" | ||||
| NS400S4F | Quote Required | TBD | 3000 | Subplate | +200 | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1/4" | 5 | Nitrile | NPT | -40 | Hydraulic Pressure | Finger Screw | Fine Metering | Nitrile | 1/4" | ||||
| NS400S4F-V | Quote Required | TBD | 3000 | Subplate | +200 | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1/4" | 5 | Fluorocarbon | NPT | -40 | Hydraulic Pressure | Finger Screw | Fine Metering | Fluorocarbon | 1/4" | ||||
| NS400S4T | Quote Required | TBD | 3000 | Subplate | +200 | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1/4" | 5 | Nitrile | NPT | -40 | Hydraulic Pressure | Tamperproof | Fine Metering | Nitrile | 1/4" | ||||
| NS400S4T-V | Quote Required | TBD | 3000 | Subplate | +200 | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1/4" | 5 | Fluorocarbon | NPT | -40 | Hydraulic Pressure | Tamperproof | Fine Metering | Fluorocarbon | 1/4" | ||||
| NS400S4-V | Quote Required | TBD | 3000 | Subplate | +200 | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1/4" | 5 | Fluorocarbon | NPT | -40 | Hydraulic Pressure | Standard | Fine Metering | Fluorocarbon | 1/4" | ||||
| NS400SF | Quote Required | TBD | 3000 psi | Subplate | +200 °F | Steel | Hydraulic Oil | Needle Valve | Hydraulic Valve Systems Division | 1/4" | 5 Gal/min | Nitrile | NPT | -40 °F | Hydraulic Pressure | Finger Screw | Standard | Nitrile | 1/4" |
