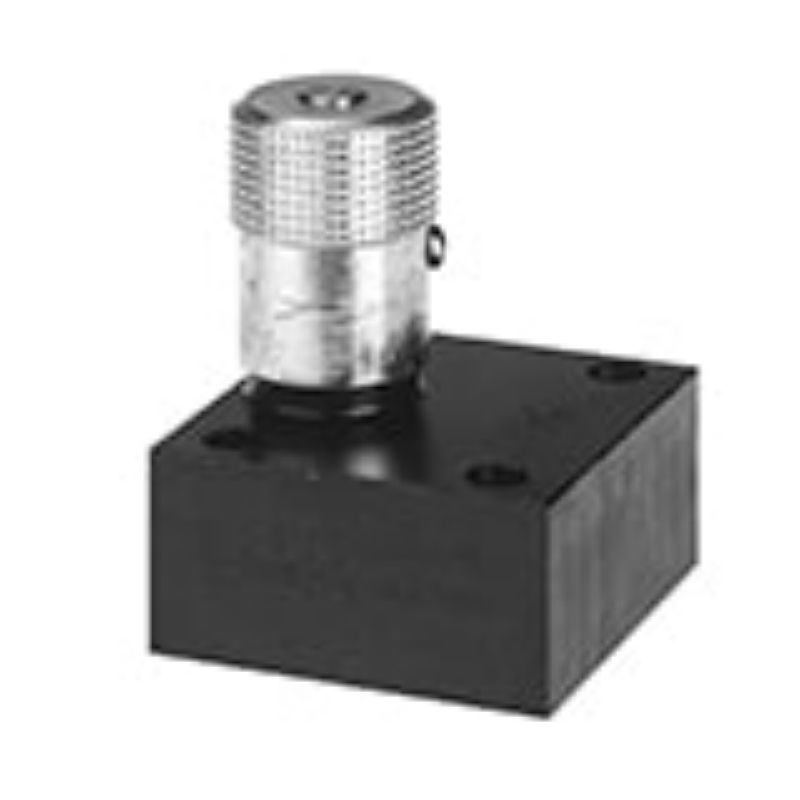

Parker NS1200S - Needle Valve, Subplate Mounted – NS Series

Parker's NS series needle valve provides excellent speed control and shutoff for hydraulic applications where a free reverse-flow check is not needed.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. NS1200S

$2,493.00

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000 psi
Mounting Type	Subplate	Maximum Operating Temperature	+200 °F
Valve Material	Steel	For Fluid Type	Hydraulic Oil
Product Style	Needle Valve	Division	Hydraulic Valve Systems Division
Connection Size	3/4"	Maximum Flow Rate	25 Gal/min
Body Material	Steel	Seal Material	Nitrile
Connection Type	NPT	Minimum Operating Temperature	-40 °F
Actuation Type	Hydraulic Pressure	Knob Option	Standard
Needle option	Standard	Seal Material	Nitrile
Port Size	3/4"
