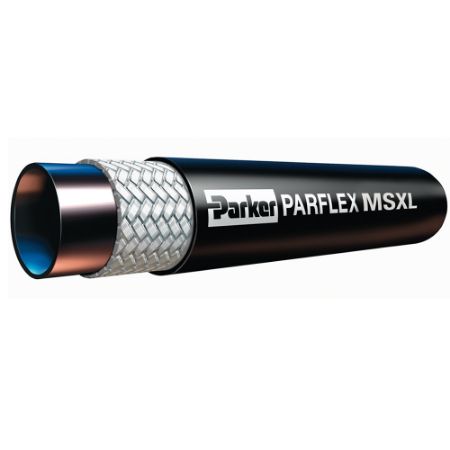

Marine Hose – MSXL Hydraulic Hose for Steering 1500 psi

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

MSXL hydraulic steering hose is used specifically in hydraulic steering for boats where fast accurate response and low volumetric expansion is needed. The hose is layered with a unique bonding process to provide optimum kink resistance and low volumetric expansion and it is manufactured with a salt water resistant cover.

Parker MSXL hose is qualified with MS Series permanent fittings only.

Markets:
• Marine

Features/Benefits:
• Fast, accurate response
• Low volumetric expansion
• Kink resistant
• Corrosion resistant thermoplastic construction
• Salt water resistant cover

Applications:
• Marine hydraulic steering systems

Technical Specifications:
• Cover: Non-perforated
• HBR bend restrictor is available for permanent fittings only
• Hose I.D. is nominal
• Hose O.D. is maximum

View as Grid List

Sort by

Display per page

Action	Part No.	Availability	Partner Available	Price	UOM	Cover Material	Maximum Operating Pressure	Outside Diameter	Hose Inner Tube Material	Hose Reinforcement Material	Maximum Operating Temperature	Weight	Inside Diameter	Application	Division	Size	Media	Minimum Operating Temperature	Compatible Fitting	Minimum Bend Radius	Design Factor	Hose I.D. (inch)
	MSXL-5	549 In Stock	577 In Stock	$4.35	FT	Polyurethane	1500 psi	0.500 inch	Polyamide (PA)	Aramid Fiber	85 °C	0.05 lb/ft	8 mm	Marine Steering	Parflex Division	-5	Petroleum Hydraulic Fluids	-40 °F	MS Series (permanent only)	2-1/4 inch	4:1	5/16
