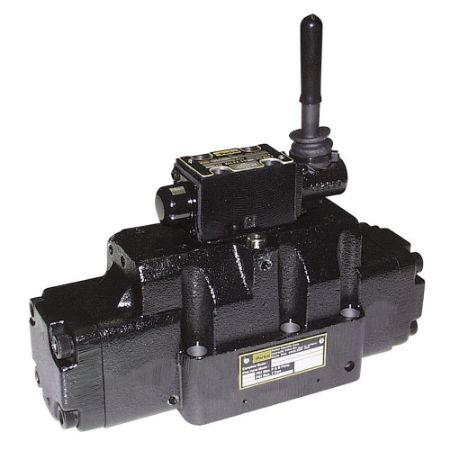

Lever Operated Directional Control Valve - D81VL Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s D81VL directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• Low pressure drop design
• Low force required to shift spool
• Hardened spools provide long life

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

Action	Part No.	Availability	Partner Available	Price	UOM	Pilot Inlet / Drain Locations	Spool Position	Weight	Options	Division	Valve Type	Seal Material	Minimum Operating Temperature	Maximum Flow Rate	Maximum Operating Pressure	Actuation Type	Spool Code	Body Material	Size	Maximum Operating Temperature	Mounting Type
	D81VL001C4N	Quote Required	Quote Required	$2,242.50/each	EA	Int. Pilot/Int. Drain	Double Operator, 3 position, spring centered	26.7	n/a	Hydraulic Valve Systems Division	Lever Operated Directional Control Valve	Nitrile	-4	160	5000	Hydraulic Pressure	4-way, 3 position; All Ports Blocked	Grey Iron	NFPA D08, CETOP 8, NG25	+140	Subplate
