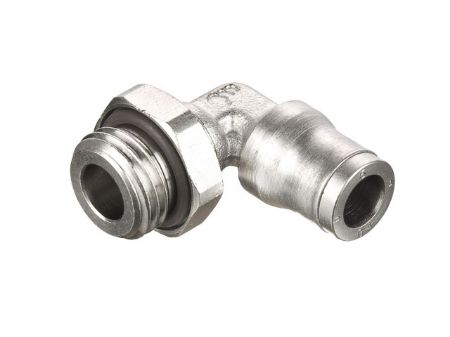

Legris LF3600 Series 3699 - Metric-BSPP/Metric
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Legris LF3600 Series Metric-BSPP/Metric Male Elbow 90°, Nickel Plated Brass Push-to-Connect fittings offer the robustness, reliability and resistance to industrial fluids for the most demanding environments.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | UOM | Thread 1 | Outer Diameter 1 | Parker Group | Parker Division | Configuration Type | Configuration Sub-Type | Thread 1 Type | Operating Temperature | Inch/Metric | Outer Diameter 1 Inch/mm | Pressure Range | Material - Seal | Trade Name | Thread 1 | Outer Diameter 1 | Series | Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3699 04 10 | Quote Required | 11 In Stock | $8.79 | EA | EA | 1/8 BSPP | 4 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 1/8 BSPP | 4 mm | Legris LF3600 | Nickel Plated Brass | |
| 3699 04 13 | Quote Required | TBD | EA | 1/4 BSPP | 4 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 1/4 BSPP | 4 mm | Legris LF3600 | Nickel Plated Brass | |||
| 3699 04 19 | Quote Required | TBD | EA | M5x0.8 Metric | 4 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | Metric | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | M5x0.8 Metric | 4 mm | Legris LF3600 | Nickel Plated Brass | |||
| 3699 04 52 | Quote Required | TBD | EA | M6X1 Metric | 4 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | Metric | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | M6X1 Metric | 4 mm | Legris LF3600 | Nickel Plated Brass | |||
| 3699 04 56 | Quote Required | TBD | EA | M8X1 Metric | 4 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | Metric | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | M8X1 Metric | 4 mm | Legris LF3600 | Nickel Plated Brass | |||
| 3699 06 10 | Quote Required | 19 In Stock | $13.31 | EA | EA | 1/8 BSPP | 6 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 1/8 BSPP | 6 mm | Legris LF3600 | Nickel Plated Brass | |
| 3699 06 13 | Quote Required | $14.16 | EA | EA | 1/4 BSPP | 6 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 1/4 BSPP | 6 mm | Legris LF3600 | Nickel Plated Brass | ||
| 3699 06 60 | Quote Required | TBD | EA | M10x1 Metric | 6 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | Metric | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | M10x1 Metric | 6 mm | Legris LF3600 | Nickel Plated Brass | |||
| 3699 08 10 | Quote Required | $17.18 | EA | EA | 1/8 BSPP | 8 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 1/8 BSPP | 8 mm | Legris LF3600 | Nickel Plated Brass | ||
| 3699 08 13 | Quote Required | 16 In Stock | $14.84 | EA | EA | 1/4 BSPP | 8 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 1/4 BSPP | 8 mm | Legris LF3600 | Nickel Plated Brass | |
| 3699 08 17 | Quote Required | TBD | EA | 3/8 BSPP | 8 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 3/8 BSPP | 8 mm | Legris LF3600 | Nickel Plated Brass | |||
| 3699 10 13 | Quote Required | TBD | EA | 1/4 BSPP | 10 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 1/4 BSPP | 10 mm | Legris LF3600 | Nickel Plated Brass | |||
| 3699 10 17 | Quote Required | TBD | EA | 3/8 BSPP | 10 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 3/8 BSPP | 10 mm | Legris LF3600 | Nickel Plated Brass | |||
| 3699 12 13 | Quote Required | TBD | EA | 1/4 BSPP | 12 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 1/4 BSPP | 12 mm | Legris LF3600 | Nickel Plated Brass | |||
| 3699 12 17 | Quote Required | TBD | EA | 3/8 BSPP | 12 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 3/8 BSPP | 12 mm | Legris LF3600 | Nickel Plated Brass | |||
| 3699 12 21 | Quote Required | TBD | EA | 1/2 BSPP | 12 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 1/2 BSPP | 12 mm | Legris LF3600 | Nickel Plated Brass | |||
| 3699 14 17 | Quote Required | TBD | EA | 3/8 BSPP | 14 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 3/8 BSPP | 14 mm | Legris LF3600 | Nickel Plated Brass | |||
| 3699 14 21 | Quote Required | $30.92 | EA | EA | 1/2 BSPP | 14 mm | Fluid Connector | Fluid Systems Connector (Brass Products) | Tube to Male | Male Elbow 90° | BSPP | -4˚ to +302˚F | Metric-BSPP/Metric | mm | 7 to 290 psi | FKM Fluoroelastomer | Legris | 1/2 BSPP | 14 mm | Legris LF3600 | Nickel Plated Brass |
