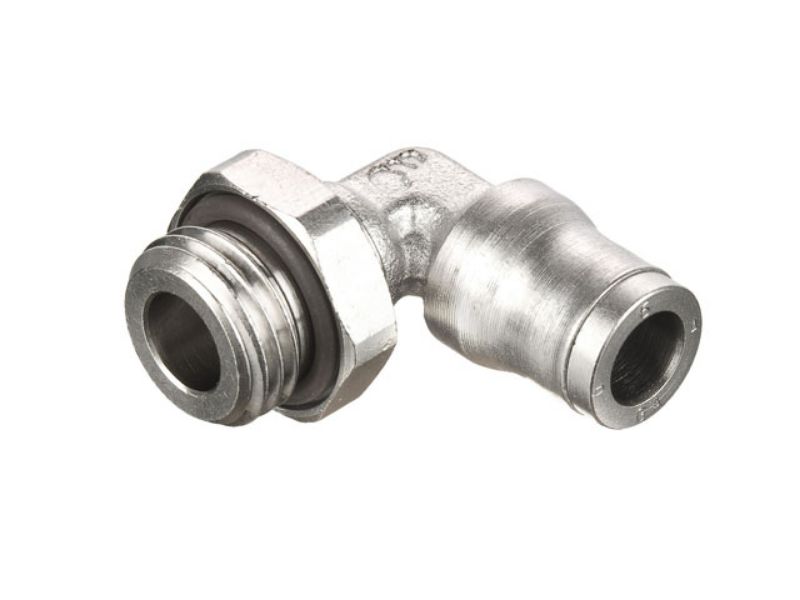

Parker 3699 04 10 - Legris LF3600 Series 3699 - Metric-BSPP/Metric

Metric-BSPP/Metric Male Elbow 90° - Push-to-Connect Fitting

Availability:	Quote Required
Partner Available:	11 In Stock

Brand Parker

Part No. 3699 04 10

$8.79

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Thread 1	1/8 BSPP	Outer Diameter 1	4 mm
Parker Group	Fluid Connector	Parker Division	Fluid Systems Connector (Brass Products)
Configuration Type	Tube to Male	Configuration Sub-Type	Male Elbow 90°
Thread 1 Type	BSPP	Operating Temperature	-4˚ to +302˚F
Inch/Metric	Metric-BSPP/Metric	Outer Diameter 1 Inch/mm	mm
Pressure Range	7 to 290 psi	Material - Seal	FKM Fluoroelastomer
Trade Name	Legris	Thread 1	1/8 BSPP
Outer Diameter 1	4 mm	Series	Legris LF3600
Material	Nickel Plated Brass

Product resources

Legris Push-in Fittings (PDF)
