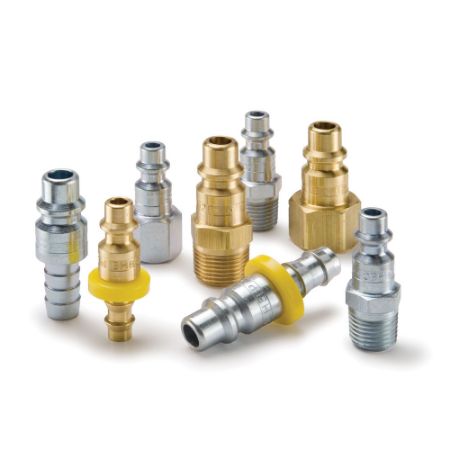

Industrial Interchange Nipples, ISO 6150-B, Air Plug
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Pneumatic Industrial Interchange Nipples connect with Parker's 20 Series, 30 Series, Rectus 21,23,30 Series, Universal or E-z-mate quick connect couplers. These air hose fittings are unvalved and conform to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards to be globally interchangeable with other products manufactured to the same requirements. Parker's steel pneumatic nipples have hardened wear points and load bearing areas for increased endurance. Nipples are available in a range of sizes, materials, and fitting ends.
Technical Characteristics:
• Sizes: 1/4” – 3/4"
• Materials: Brass, Steel, 303 Stainless Steel
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb,
Push-Lok Hose Barb
Markets :
• Industrial
• Construction
• Automotive service and repair
• Factory automation
Features/Benefits :
• Steel nipples have hardened wear points and load-bearing areas for increased durability
• Non-valved nipples connect with valved couplers for a single shut-off connection
• Conforms to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards for global interchangeability
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
Read More...Technical Characteristics:
• Sizes: 1/4” – 3/4"
• Materials: Brass, Steel, 303 Stainless Steel
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb,
Push-Lok Hose Barb
Markets :
• Industrial
• Construction
• Automotive service and repair
• Factory automation
Features/Benefits :
• Steel nipples have hardened wear points and load-bearing areas for increased durability
• Non-valved nipples connect with valved couplers for a single shut-off connection
• Conforms to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards for global interchangeability
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
| Action | Part No. | Availability | Partner Available | Price | UOM | Coupling Half | Specifications Met | Media | Valve Type | Dimensional Weight | Plating Type | Application | Division | Maximum Operating Pressure | Body Material | Connection Type | Thread Style | Connection Thread Size (inch) | Body Size (inch) | Connection Hose I.D. (inch) | Body Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| BH2C | 152 In Stock | 1820 In Stock | $6.08/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.013329336530775381 lb | na | Air | Quick Coupling Division | 300 psi | Brass | NPTF | Male | 1/4 - 18 | 1/4 | na | BRASS | |
| BH2E | 13 In Stock | 119 In Stock | $36.67/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.01335431654676259 lb | na | Air | Quick Coupling Division | 300 psi | Brass | NPTF | Male | 3/8 - 18 | 3/8 | na | BRASS | |
| BH2F | 5 In Stock | 66 In Stock | $18.06/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.02670863309352518 lb | na | Air | Quick Coupling Division | 300 psi | Brass | NPTF | Male | 1/2 - 14 | 1/2 | na | BRASS | |
| BH2G | 1 Limited Stock | 44 In Stock | $118.04/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.05341726618705036 lb | na | Air | Quick Coupling Division | 300 psi | Brass | NPTF | Male | 3/4 - 14 | 3/4 | na | BRASS | |
| BH3C | 26 In Stock | 844 In Stock | $6.16/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.006677158273381295 lb | na | Air | Quick Coupling Division | 300 psi | Brass | NPTF | Female | 1/4 - 18 | 1/4 | na | BRASS | |
| BH3E | Quote Required | 240 In Stock | $16.49/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.01335431654676259 lb | na | Air | Quick Coupling Division | 300 psi | Brass | NPTF | Female | 3/8 - 18 | 3/8 | na | BRASS | |
| BH3F | 24 In Stock | 118 In Stock | $19.95/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.02670863309352518 lb | na | Air | Quick Coupling Division | 300 psi | Brass | NPTF | Female | 1/2 - 14 | 1/2 | na | BRASS | |
| BH5G | Quote Required | $13.50/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | na | Air | Quick Coupling Division | 300 psi | Brass | Hose barb | na | na | 3/4 | 3/4 | BRASS | |||
| BH8CP | Quote Required | 179 In Stock | $7.61/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.006677158273381295 lb | na | Air | Quick Coupling Division | 300 psi | Brass | Push-Lok hose barb | na | na | 1/4 | 1/4 | BRASS | |
| H00E | 6 In Stock | 74 In Stock | $15.12/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.01335431654676259 lb | Zinc with clear trivalent chromate | Air | Quick Coupling Division | 300 psi | Steel | NPTF | Male | 1/8 - 27 | 3/8 | na | Steel | |
| H0C | 62 In Stock | 566 In Stock | $4.02/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.013329336530775381 lb | Zinc with clear trivalent chromate | Air | Quick Coupling Division | 300 psi | Steel | NPTF | Male | 1/8 - 27 | 1/4 | na | Steel | |
| H0E | 362 In Stock | 1640 In Stock | $8.89/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.01999400479616307 lb | Zinc with clear trivalent chromate | Air | Quick Coupling Division | 300 psi | Steel | NPTF | Male | 1/4 - 18 | 3/8 | na | Steel | |
| H0F | 145 In Stock | 576 In Stock | $9.88/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.026658673061550762 lb | Zinc with clear trivalent chromate | Air | Quick Coupling Division | 300 psi | Steel | NPTF | Male | 3/8 - 18 | 1/2 | na | Steel | |
| H1C | 5 In Stock | 314 In Stock | $4.14/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.013329336530775381 lb | Zinc with clear trivalent chromate | Air | Quick Coupling Division | 300 psi | Steel | NPTF | Female | 1/8 - 27 | 1/4 | na | Steel | |
| H1E | 41 In Stock | 460 In Stock | $9.61/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.01999400479616307 lb | Zinc with clear trivalent chromate | Air | Quick Coupling Division | 300 psi | Steel | NPTF | Female | 1/4 - 18 | 3/8 | na | Steel | |
| H1F | 41 In Stock | 268 In Stock | $11.14/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.026658673061550762 lb | Zinc with clear trivalent chromate | Air | Quick Coupling Division | 300 psi | Steel | NPTF | Female | 3/8 - 18 | 1/2 | na | Steel | |
| H2C | 1454 In Stock | 4940 In Stock | $3.46/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.013329336530775381 lb | Zinc with clear trivalent chromate | Air | Quick Coupling Division | 300 psi | Steel | NPTF | Male | 1/4 - 18 | 1/4 | na | Steel | |
| H2C-E | 115 In Stock | 1174 In Stock | $5.37/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.013329336530775381 lb | Zinc with clear trivalent chromate | Air | Quick Coupling Division | 300 psi | Steel | NPTF | Male | 3/8 - 18 | 1/4 | na | Steel | |
| H2E | 120 In Stock | 1267 In Stock | $9.08/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.01999400479616307 lb | Zinc with clear trivalent chromate | Air | Quick Coupling Division | 300 psi | Steel | NPTF | Male | 3/8 - 18 | 3/8 | na | Steel | |
| H2E-F | 49 In Stock | 405 In Stock | $11.23/each | EA | Nipple | A-A-59439 (MIL-C-4109F, ISO 6150-B) | Low pressure fluids and compressed air | Unvalved | 0.01999400479616307 lb | Zinc with clear trivalent chromate | Air | Quick Coupling Division | 300 psi | Steel | NPTF | Male | 1/2 - 14 | 3/8 | na | Steel |
