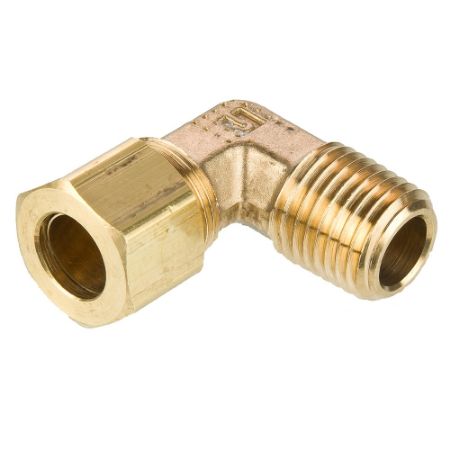

Inch Brass Compression Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's compression fittings are economical and offered in both extrusions and forgings. These compression fittings require no flaring, soldering, tube preparation or special tools to operate. Compression fittings are especially useful in installations that may require occasional disassembly or partial removal for maintenance since the fitting can be broken and remade without affecting the integrity of the joint. Compression fittings are also used in situations where a heat source, in particular a soldering torch, is prohibited.
Use with copper, aluminum and the following Parker Parflex Division tubing:
• Polyethylene
• Nylon
• Polypropylene
Markets:
• Industrial
• Packaging
• Pneumatic
• Printing
• Compressors
• Marine
Features/Benefits:
• All brass construction
• Economical
• Long Nut for vibration
• UL listed for flammable liquid
• Meets SAE J-512
• Acetal sleeve for use with thermoplastic tubing
Applications:
• Air lines
• Lubrication lines
• Cooling lines
• Fluid transfer
• Water lines
• Automotive process
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Maximum Operating Pressure | Maximum Operating Temperature | Dimensional Weight | Minimum Operating Temperature | Nut Material | Media | Weight | Application | Specifications Met | Quantity per Box | Tube Material | Sleeve Material | Body Material | Shape | Connection 2 Size | Configuration | Body Material | Connection 1 Size | Connection 1 Type | Connection 2 Type | Connection 3 Size | Connection 3 Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 164C-10 | Quote Required | 4 In Stock | $54.48/each | EA | Fluid System Connectors Division | 150 psi | 121 °C | 0.5519 lb | -65 °F | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | SAE J-512 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Tee | 5/8" | Tube to Tube | Brass, Forged | 5/8" | Compression | Compression | 5/8" | Compression | |
| 164C-2 | 1 Limited Stock | 17 In Stock | $14.30/each | EA | Fluid System Connectors Division | 2800 psi | 250 °F | -65 °F | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | SAE J-512 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Tee | 1/8" | Tube to Tube | Brass, Forged | 1/8" | Compression | Compression | 1/8" | Compression | ||
| 164C-4 | Quote Required | 517 In Stock | $11.16/each | EA | Fluid System Connectors Division | 20 bar | 250 °F | 0.1104 lb | -54 °C | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Tee | 1/4" | Tube to Tube | Brass, Forged | 1/4" | Compression | Compression | 1/4" | Compression | |
| 164C-5 | Quote Required | 27 In Stock | $16.16/each | EA | Fluid System Connectors Division | 300 psi | 250 °F | -54 °C | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | SAE J-512 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Tee | 5/16" | Tube to Tube | Brass, Forged | 5/16" | Compression | Compression | 5/16" | Compression | ||
| 164C-6 | Quote Required | 98 In Stock | $14.56/each | EA | Fluid System Connectors Division | 68.9 bar | 121 °C | 0.1104 lb | -54 °C | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | SAE J-512 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Tee | 3/8" | Tube to Tube | Brass, Forged | 3/8" | Compression | Compression | 3/8" | Compression | |
| 164C-6-4-4 | 5 In Stock | Quote Required | $22.66/each | EA | Fluid System Connectors Division | 96.5 bar | 121 °C | -54 °C | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Tee | 1/4" | Tube to Tube | Brass, Forged | 3/8" | Compression | Compression | 1/4" | Compression | ||
| 164C-8 | 5 In Stock | 35 In Stock | $32.47/each | EA | Fluid System Connectors Division | 200 psi | 121 °C | -54 °C | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | SAE J-512 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Tee | 1/2" | Tube to Tube | Brass, Forged | 1/2" | Compression | Compression | 1/2" | Compression | ||
| 165C-10 | Quote Required | $47.58/each | EA | Fluid System Connectors Division | 150 psi | 250 °F | -65 °F | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | SAE J-512 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Elbow 90° | 5/8" | Tube to Tube | Brass, Forged | 5/8" | Compression | Compression | |||||
| 165C-2 | Quote Required | 4 In Stock | $15.86/each | EA | Fluid System Connectors Division | 193 bar | 121 °C | -54 °C | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Elbow 90° | 1/8" | Tube to Tube | Brass, Forged | 1/8" | Compression | Compression | ||||
| 165C-3 | Quote Required | 22 In Stock | $10.98/each | EA | Fluid System Connectors Division | 400 psi | 121 °C | -65 °F | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | SAE J-512 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Elbow 90° | 3/16" | Tube to Tube | Brass, Forged | 3/16" | Compression | Compression | ||||
| 165C-4 | Quote Required | 55 In Stock | $7.60/each | EA | Fluid System Connectors Division | 1400 psi | 250 °F | 0.2759 lb | -54 °C | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | SAE J-512 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Elbow 90° | 1/4" | Tube to Tube | Brass, Forged | 1/4" | Compression | Compression | |||
| 165C-5 | Quote Required | 21 In Stock | $12.89/each | EA | Fluid System Connectors Division | 300 psi | 121 °C | -65 °F | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | SAE J-512 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Elbow 90° | 5/16" | Tube to Tube | Brass, Forged | 5/16" | Compression | Compression | ||||
| 165C-6 | Quote Required | 53 In Stock | $11.16/each | EA | Fluid System Connectors Division | 14 bar | 250 °F | 0.2759 lb | -54 °C | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | SAE J-512 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Elbow 90° | 3/8" | Tube to Tube | Brass, Forged | 3/8" | Compression | Compression | |||
| 165C-8 | 12 In Stock | 35 In Stock | $27.43/each | EA | Fluid System Connectors Division | 750 psi | 121 °C | 0.2759 lb | -54 °C | Brass | Water, air, inert and non-combustible gasses | na | Compressors, Machine Tools, Engine, Pumps, Purification | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | Brass | Elbow 90° | 1/2" | Tube to Tube | Brass, Forged | 1/2" | Compression | Compression | |||
| 169C-10-6 | 1 Limited Stock | 5 In Stock | $27.46/each | EA | Fluid System Connectors Division | 44.8 bar | Brass | Elbow 90° | 3/8" | Tube to Pipe | Brass, Forged | 5/8" | Compression | Male NPTF | ||||||||||||||
| 169C-10-8 | Quote Required | 1 Limited Stock | $20.96/each | EA | Fluid System Connectors Division | 44.8 bar | Brass | Elbow 90° | 1/2" | Tube to Pipe | Brass, Forged | 5/8" | Compression | Male NPTF | ||||||||||||||
| 169C-12-12 | Quote Required | 26 In Stock | $46.81/each | EA | Fluid System Connectors Division | 37.9 bar | 0.5519 lb | Brass | Elbow 90° | 3/4" | Tube to Pipe | Brass, Forged | 3/4" | Compression | Male NPTF | |||||||||||||
| 169C-12-8 | Quote Required | 36 In Stock | $42.04/each | EA | Fluid System Connectors Division | 37.9 bar | 0.5519 lb | Brass | Elbow 90° | 1/2" | Tube to Pipe | Brass, Forged | 3/4" | Compression | Male NPTF | |||||||||||||
| 169C-3-2 | 3 In Stock | 27 In Stock | $5.89/each | EA | Fluid System Connectors Division | 1900 psi | 0.2759 lb | Brass | Elbow 90° | 1/8" | Tube to Pipe | Brass, Forged | 3/16" | Compression | Male NPTF | |||||||||||||
| 169C-3-4 | 3 In Stock | 23 In Stock | $14.93/each | EA | Fluid System Connectors Division | 131 bar | Brass | Elbow 90° | 1/4" | Tube to Pipe | Brass, Forged | 3/16" | Compression | Male NPTF |
