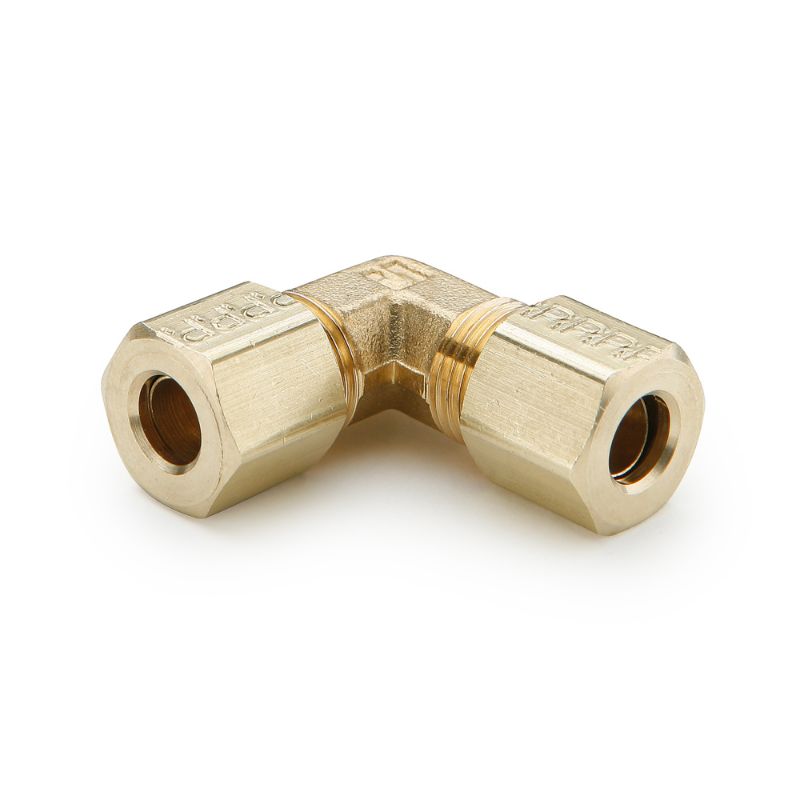

Parker 165C-8 - Inch Brass Compression Fittings

Name: Parker 165C-8 - Inch Brass Compression Fittings
SKU: 165C-8
Price: 27.43 USD
Availability: InStock

Parker's compression fittings require no flaring, soldering or other preparation of tubing necessary to assemble. Offered in both forgings and extrusions compression fittings meet functional requirements of SAE J-512

AFP Availability:

12 In Stock

Richmond, VA

Partner Available:

35 In Stock

Quantities sourced from Partner Network may incur an upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

Brand Parker

Part No. 165C-8

$27.43/each

Qty:

Products specifications

Attribute name	Attribute value
Minimum Operating Temperature	-54 °C	Application	Compressors, Machine Tools, Engine, Pumps, Purification
Specifications Met	na	Sleeve Material	Brass, Acetal
Tube Material	Copper, Aluminum, Thermoplastic	Maximum Operating Pressure	750 psi
Weight	na	Division	Fluid System Connectors Division
Dimensional Weight	0.2759 lb	Media	Water, air, inert and non-combustible gasses
Quantity per Box	na	Maximum Operating Temperature	121 °C
Nut Material	Brass	Body Material	Brass
Shape	Elbow 90°	Connection 1 Size	1/2"
Connection 2 Size	1/2"	Configuration	Tube to Tube
Body Material	Brass, Forged	Connection 1 Type	Compression
Connection 2 Type	Compression
