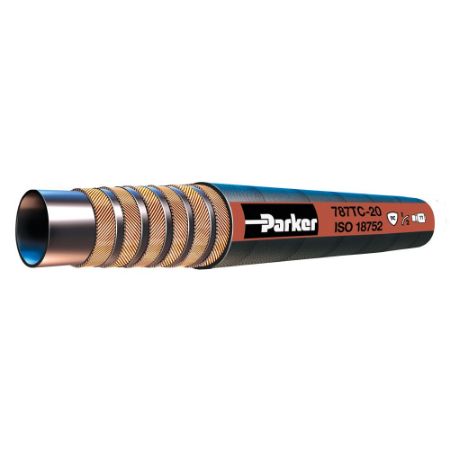

Hydraulic Constant Working Pressure Hose 5000 PSI - GlobalCore 787 Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s 787 hose, within the GlobalCore product line, was designed to deliver consistency and reliability with a constant working pressure of 5,000 PSI in all sizes. The 787 hose is made with Compact Spiral technology making it light, durable, and easily bent making installation easier and quicker. The 787 hose is designed, built, and tested to meet ISO 18752 performance specifications. Sizes range from ¼” to 2” in diameter with different cover options available for various markets.
Markets:
• Military
• Construction
• Forestry
• Oil Field Service
• Industrial
• Mining
Features/Benefits:
• Standard, ToughCover, SuperTough and Critical Protection cover options to prevent abrasion
• Half SAE bend radius for ease of installation and low force to flex
• 30% smaller O.D. compared to standard SAE spiral hose
• Twice the impulse/life – tested to 2,000,000 cycles
• 5,000 PSI constant working pressure in all sizes
• Lighter than the standard SAE spiral hose
Applications:
• Petroleum base hydraulic fluids and lubricating oils
Compatible Fittings:
• 43 Series fittings (for -4 to -6)
• 77 series fittings (for -8 to -32)
| Action | Part No. | Availability | Partner Available | Price | Media | Compatible Fitting | Size | Maximum Operating Temperature | Division | Application | Minimum Operating Temperature | Hose Inner Tube Material | Weight | Maximum Operating Pressure | Minimum Bend Radius | Cover Material | Specifications Met | Hose Reinforcement Material | Outside Diameter | Inside Diameter | Hose I.D. (size) | Hose Cover Type | Cover Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 787-8 | Quote Required | 717 In Stock | $16.74/each | Petroleum Hydraulic Fluids (Petroleum Base) | 77 Series | -8 | 212 °F | Hose Products Division | Petroleum Base Hydraulic Fluids | -40 °F | Proprietary Synthetic Rubber Compound | 0.67 kg/m | 350 bar | 90 mm | Synthetic Rubber | ISO 18752, Type BC | 4 or 6 Spirals of Steel Wire Compact | 0.830 inch | 12.5 mm | -8 | Standard Cover | ||
| 787CP-20 | Quote Required | $128.93/each | Petroleum Hydraulic Fluids | 77 Series | -20 | 257 °F | Hose Products Division | Petroleum Base Hydraulic Fluids | -40 °F | Proprietary Synthetic Rubber Compound | 2.89 kg/m | 5000 psi | 210 mm | Proprietary Critical Protection Cover | MSHA TC, ST CP covers only | 4 or 6 Spirals of Steel Wire Compact | 1.77 inch | 31.5 mm | -20 | Critical Protection | Black | ||
| 787TC-20 | 1473 In Stock | 7328 In Stock | $95.20/each | Petroleum Hydraulic Fluids | 77 Series | -20 | 257 °F | Hose Products Division | Petroleum Base Hydraulic Fluids | -40 °F | Proprietary Synthetic Rubber Compound | 2.89 kg/m | 35 MPa | 8-1/4 inch | Synthetic Rubber | ISO 18752, Type DC | 4 or 6 Spirals of Steel Wire Compact | 44.9 mm | 31.5 mm | -20 | ToughCover | ||
| 787TC-24 | 1035 In Stock | 4984 In Stock | $105.68/each | Lubricants | 77 Series | -24 | 125 °C | Hose Products Division | Lubricating Oils | -40 °C | Proprietary Synthetic Rubber Compound | 3.96 kg/m | 5000 psi | 10 inch | Synthetic Rubber | ISO 18752, Type DC | 4 or 6 Spirals of Steel Wire Compact | 2.080 inch | 1-1/2 inch | -24 | ToughCover | ||
| 787TC-32 | 1089 In Stock | 2538 In Stock | $132.50/each | Petroleum Hydraulic Fluids | 77 Series | -32 | 125 °C | Hose Products Division | Petroleum Base Hydraulic Fluids | -40 °C | Proprietary Synthetic Rubber Compound | 4.37 lb/ft | 5000 psi | 318 mm | Synthetic Rubber | ISO 18752, Type DC | 4 or 6 Spirals of Steel Wire Compact | 67.6 mm | 2 inch | -32 | ToughCover |
