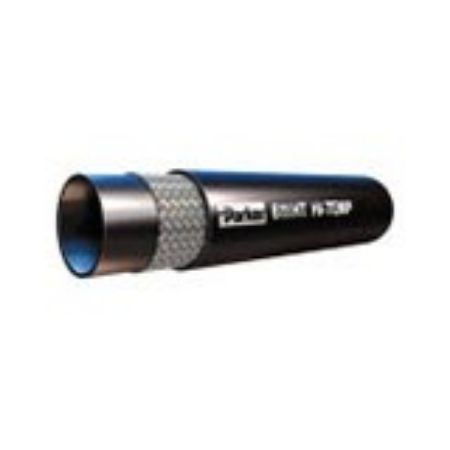

High Temperature Transportation Hose 300-400 PSI – 611HT Hose
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's 611HT hose is a transportation hose that has a working pressure range of 300-400 PSI which is designed for high temperature applications. The 611HT hose is designed, built, and tested to meet SAE J517 100R6 / EN 854 Type R6 specifications. Sizes range from ¼” to ¾” in diameter to fit the requirements of various markets.
Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 300-400 PSI working pressure in different sizes
• Temperature range of -55 degrees Fahrenheit to 302 degrees Fahrenheit
• SAE J517 100R6 / EN 854 Type R6 certifications
Applications:
• Petroleum base hydraulic fluids and lubricating oils, diesel fuels and antifreeze solutions
Compatible Fittings:
• HY series fittings
Read More...Markets:
• Transportation
• Military
• Agriculture
Features/Benefits:
• 300-400 PSI working pressure in different sizes
• Temperature range of -55 degrees Fahrenheit to 302 degrees Fahrenheit
• SAE J517 100R6 / EN 854 Type R6 certifications
Applications:
• Petroleum base hydraulic fluids and lubricating oils, diesel fuels and antifreeze solutions
Compatible Fittings:
• HY series fittings
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Maximum Operating Temperature | Outside Diameter | Application | Maximum Operating Pressure | Hose Reinforcement Material | Media | Hose Inner Tube Material | Compatible Fitting | Weight | Specifications Met | Minimum Operating Temperature | Cover Material | Hose Cover Type | Inside Diameter | Minimum Bend Radius | Nominal Hose Inside Diameter | Hose Inside Diameter |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 611HT-10 | Quote Required | TBD | Hose Products Division | 150 °C | 0.880 inch | Lubricating Oils | 2.4 MPa | 1 Braid of Fiber | Fuels - Check fuel type with our catalogue chart. | PKR® Rubber | HY Series | 0.19 lb/ft | EN 854, Type R6 | -55 °F | Synthetic Rubber MSHA approved | Synthetic Rubber MSHA Accepted | 15.7 mm | 125 mm | 15 mm | -10 | |||
| 611HT-12 | Quote Required | 120 In Stock | $17.57 | FT | Hose Products Division | 302 °F | 1 inch | Lubricating Oils | 2.1 MPa | 1 Braid of Fiber | Fuels - Check fuel type with our catalogue chart. | PKR® Rubber | HY Series | 0.36 kg/m | SAE J517 and 100R6 | -55 °F | Synthetic Rubber MSHA approved | Synthetic Rubber MSHA Accepted | 3/4 inch | 150 mm | 18 mm | -12 | |
| 611HT-16 | Quote Required | TBD | Hose Products Division | -16.0 | |||||||||||||||||||
| 611HT-4 | Quote Required | TBD | Hose Products Division | 150 °C | 0.470 inch | Petroleum Base Hydraulic Fluids | 2.8 MPa | 1 Braid of Fiber | Lubricants | PKR® Rubber | HY Series | 0.09 lb/ft | SAE J517 and 100R6 | -55 °F | Synthetic Rubber MSHA approved | Synthetic Rubber MSHA Accepted | 6.2 mm | 65 mm | 6 mm | -4 | |||
| 611HT-5 | Quote Required | TBD | Hose Products Division | -5.0 | |||||||||||||||||||
| 611HT-6 | Quote Required | TBD | Hose Products Division | 302 °F | 0.590 inch | Petroleum Base Hydraulic Fluids | 2.8 MPa | 1 Braid of Fiber | Lubricants | PKR® Rubber | HY Series | 0.11 lb/ft | SAE J517 and 100R6 | -55 °F | Synthetic Rubber MSHA approved | Synthetic Rubber MSHA Accepted | 9.3 mm | 75 mm | 9 mm | -6 | |||
| 611HT-8 | Quote Required | TBD | Hose Products Division | 302 °F | 19 mm | Antifreeze Solutions | 2.8 MPa | 1 Braid of Fiber | Petroleum Hydraulic Fluids | PKR® Rubber | HY Series | 0.18 lb/ft | SAE J517 and 100R6 | -55 °F | Synthetic Rubber MSHA approved | Synthetic Rubber MSHA Accepted | 1/2 inch | 100 mm | 12 mm | -8 |
