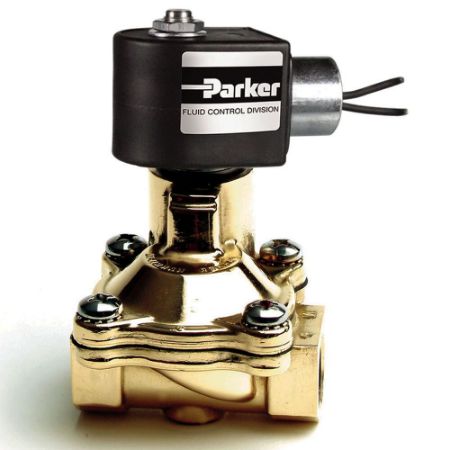

High Pressure Steam Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The unique piston style design of these high pressure, high flow steam valves deliver uptime and long life at elevated pressures and temperatures, where competive products fall flat. These time-tested valves are the “go to” solution for demanding steam applications.
Read More...| Action | Part No. | Availability | Partner Available | Price | UOM | Port Type | Body Material | Division | Function | Valve Type | Minimum Pressure Differential | Port Size | Media | Input Voltage | Orifice Size | Specifications Met | Main Flow Coefficient | Ingress Protection Rating | Seal Material | Actuation Type | Maximum Fluid Temperature | Maximum Pressure Differential | Maximum Steam Pressure | Power Consumption | Coil Type | Installation | Preventive Maintenance Kit | Maximum Ambient Temperature | Insulation Class | Port Type | Body Material | Port Size | Function | Orifice Size | Input Voltage | Actuation Type | Specifications Met | Main Flow Coefficient | Ingress Protection Rating | Media | Seal Material | Maximum Fluid Temperature | Maximum Pressure Differential | Valve Type | Maximum Steam Pressure | Coil Type | Installation | Power Consumption | Preventive Maintenance Kit | Maximum Ambient Temperature | Minimum Pressure Differential | Insulation Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 73218BN3TTS0 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 3 psi | 3/8 inch | Water | Pressure Vessel Only | 5/8 inch | N/A | 3.0 Cv | N/A | PTFE | Internal Pilot | 353 °F | - psi | 125 psi | 10 W | Requires Class H Coil from Chart 7 | IOM 7217 | 7K823 | 77 °F | Requires Class H Coil From Chart 7 | NPT | BRASS | 3/8 | Normally Closed | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 3.0 | N/A | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | Requires Class H Coil from Chart 7 | IOM 7217 | 10 | 7K823 | 77 | 3 | Requires Class H Coil from Chart 7 | |||
| 73218BN4UTS0 | Quote Required | $426.79 | EA | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 3 psi | 1/2 inch | Hot Water | Pressure Vessel Only | 5/8 inch | N/A | 4.0 Cv | N/A | PTFE | Internal Pilot | 353 °F | - psi | 125 psi | 10 W | Requires Class H Coil from Chart 7 | IOM 7217 | 7K823 | 77 °F | Requires Class H Coil From Chart 7 | NPT | BRASS | 1/2 | Normally Closed | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 4.0 | N/A | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | Requires Class H Coil from Chart 7 | IOM 7217 | 10 | 7K823 | 77 | 3 | Requires Class H Coil from Chart 7 | ||
| 73218BN4UTS0N0C222P3 | Quote Required | $532.24 | EA | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 3 psi | 1/2 inch | Steam | 110/50 VAC | 5/8 inch | CSA listed General Purpose Valve; CE - Low Voltage | 4.0 Cv | NEMA 4 | PTFE | Internal Pilot | 353 °F | - psi | 125 psi | 10 W | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 7K823 | 77 °F | H (180°C) | NPT | BRASS | 1/2 | Normally Closed | 5/8 | 120/60, 110/50 | Internally Piloted | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 4.0 | NEMA 4,4X | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 10 | 7K823 | 77 | 3 | Class H | ||
| 73218BN4UTS0N0D200P3 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 3 psi | 1/2 inch | Hot Water | 120/60 VAC | 5/8 inch | UL | 4.0 Cv | NEMA 4 | PTFE | Internal Pilot | 353 °F | - psi | 125 psi | 10 W | DIN 43650A / ISO 4400 | IOM 7217 | 7K823 | 77 °F | H (180°C) | NPT | BRASS | 1/2 | Normally Closed | 5/8 | 120/60, 110/50 | Internally Piloted | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 4.0 | NEMA 4,4X | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | DIN 43650A / ISO 4400 | IOM 7217 | 10 | 7K823 | 77 | 3 | Class H | |||
| 73218BN4UTS0N0H222P3 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 3 | 1/2 | Water | 110/50 | 5/8 | UL | 4.0 | CSA Class 1, Div. 1 | PTFE | Internal Pilot | 353 | - | 125 | 10 | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 7K823 | 77 | H (180°C) | NPT | BRASS | 1/2 | Normally Closed | 5/8 | 120/60, 110/50 | Internally Piloted | UL, CSA Listed General Purpose Valve for Hazardous Locations; CE - Low Voltage, EMC | 4.0 | UL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 10 | 7K823 | 77 | 3 | Class H | |||
| 73218BN5VTS0 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 3 psi | 3/4 inch | Steam | Pressure Vessel Only | 5/8 inch | N/A | 4.5 Cv | N/A | PTFE | Internal Pilot | 353 °F | - psi | 125 psi | 10 W | Requires Class H Coil from Chart 7 | IOM 7217 | 7K823 | 77 °F | Requires Class H Coil From Chart 7 | NPT | BRASS | 3/4 | Normally Closed | 5/8 | Pressure Vessel Only | Internally Piloted | N/A | 4.5 | N/A | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | Requires Class H Coil from Chart 7 | IOM 7217 | 10 | 7K823 | 77 | 3 | Requires Class H Coil from Chart 7 | |||
| 73218BN5VTS0N0C222P3 | Quote Required | $553.87 | EA | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 3 psi | 3/4 inch | Water | 120/60 VAC | 5/8 inch | UL | 4.5 Cv | NEMA 4 | PTFE | Internal Pilot | 353 °F | - psi | 125 psi | 10 W | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 7K823 | 77 °F | H (180°C) | NPT | BRASS | 3/4 | Normally Closed | 5/8 | 120/60, 110/50 | Internally Piloted | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 4.5 | NEMA 4,4X | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 10 | 7K823 | 77 | 3 | Class H | ||
| 73218BN5VTS0N0D200B2 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 3 psi | 3/4 inch | Steam | 110/50 VAC | 5/8 inch | UL | 4.5 Cv | NEMA 4 | PTFE | Internal Pilot | 353 °F | - psi | 125 psi | 10 W | DIN 43650A / ISO 4400 | IOM 7217 | 7K823 | 77 °F | H (180°C) | NPT | BRASS | 3/4 | Normally Closed | 5/8 | 120/60, 110/50 | Internally Piloted | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 4.5 | NEMA 4,4X | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | DIN 43650A / ISO 4400 | IOM 7217 | 10 | 7K823 | 77 | 3 | Class H | |||
| 73218BN5VTS0N0H222P3 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 3 psi | 3/4 inch | Water | 120/60 VAC | 5/8 inch | UL | 4.5 Cv | UL | PTFE | Internal Pilot | 353 °F | - psi | 125 psi | 10 W | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 7K823 | 77 °F | H (180°C) | NPT | BRASS | 3/4 | Normally Closed | 5/8 | 120/60, 110/50 | Internally Piloted | UL, CSA Listed General Purpose Valve for Hazardous Locations; CE - Low Voltage, EMC | 4.5 | UL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 10 | 7K823 | 77 | 3 | Class H | |||
| 73218BN64TS0 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 5 psi | 1 inch | Water | Pressure Vessel Only | 1-1/16 inch | N/A | 13.5 Cv | N/A | PTFE | Internal Pilot | 353 °F | - psi | 125 psi | 10 W | Requires Class H Coil from Chart 7 | IOM 7217 | 7K824 | 77 °F | Requires Class H Coil From Chart 7 | NPT | BRASS | 1 | Normally Closed | 1-1/16 | Pressure Vessel Only | Internally Piloted | N/A | 13.5 | N/A | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | Requires Class H Coil from Chart 7 | IOM 7217 | 10 | 7K824 | 77 | 5 | Requires Class H Coil from Chart 7 | |||
| 73218BN64TS0N0C222P3 | Quote Required | $787.81 | EA | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 5 psi | 1 inch | Hot Water | 110/50 VAC | 1-1/16 inch | UL | 13.5 Cv | NEMA 4X | PTFE | Internal Pilot | 353 °F | - psi | 125 psi | 10 W | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 7K824 | 77 °F | H (180°C) | NPT | BRASS | 1 | Normally Closed | 1-1/16 | 120/60, 110/50 | Internally Piloted | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 13.5 | NEMA 4,4X | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 10 | 7K824 | 77 | 5 | Class H | ||
| 73218BN64TS0N0D200Q3 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 5 | 1 | Water | 110/50 | 1-1/16 | UL | 13.5 | NEMA 4X | PTFE | Internal Pilot | 353 | - | 125 | 10 | DIN 43650A / ISO 4400 | IOM 7217 | 7K824 | 77 | H (180°C) | NPT | BRASS | 1 | Normally Closed | 1-1/16 | 120/60, 110/50 | Internally Piloted | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 13.5 | NEMA 4,4X | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | DIN 43650A / ISO 4400 | IOM 7217 | 10 | 7K824 | 77 | 5 | Class H | |||
| 73218BN64TS0N0H222Q3 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 5 psi | 1 inch | Steam | 110/50 VAC | 1-1/16 inch | EMC | 13.5 Cv | UL | PTFE | Internal Pilot | 353 °F | - psi | 125 psi | 10 W | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 7K824 | 77 °F | H (180°C) | NPT | BRASS | 1 | Normally Closed | 1-1/16 | 120/60, 110/50 | Internally Piloted | UL, CSA Listed General Purpose Valve for Hazardous Locations; CE - Low Voltage, EMC | 13.5 | UL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 10 | 7K824 | 77 | 5 | Class H | |||
| 73218BN75TS0 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 5 psi | 1-1/4 inch | Steam | Pressure Vessel Only | 1-1/8 inch | N/A | 16.0 Cv | N/A | PTFE | Internal Pilot | 353 °F | - psi | 125 psi | 10 W | Requires Class H Coil from Chart 7 | IOM 7217 | 7K824 | 77 °F | Requires Class H Coil From Chart 7 | NPT | BRASS | 1-1/4 | Normally Closed | 1-1/8 | Pressure Vessel Only | Internally Piloted | N/A | 16.0 | N/A | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | Requires Class H Coil from Chart 7 | IOM 7217 | 10 | 7K824 | 77 | 5 | Requires Class H Coil from Chart 7 | |||
| 73218BN75TS0N0C222P3 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 5 | 1-1/4 | Water | 110/50 | 1-1/8 | UL | 16.0 | NEMA 4X | PTFE | Internal Pilot | 353 | - | 125 | 10 | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 7K824 | 77 | H (180°C) | NPT | BRASS | 1-1/4 | Normally Closed | 1-1/8 | 120/60, 110/50 | Internally Piloted | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 16.0 | NEMA 4,4X | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 10 | 7K824 | 77 | 5 | Class H | |||
| 73218BN75TS0N0D200P3 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 5 | 1-1/4 | Water | 110/50 | 1-1/8 | UL | 16.0 | NEMA 4X | PTFE | Internal Pilot | 353 | - | 125 | 10 | DIN 43650A / ISO 4400 | IOM 7217 | 7K824 | 77 | H (180°C) | NPT | BRASS | 1-1/4 | Normally Closed | 1-1/8 | 120/60, 110/50 | Internally Piloted | UL, CSA Listed General Purpose Valve; CE - Low Voltage, EMC | 16.0 | NEMA 4,4X | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | DIN 43650A / ISO 4400 | IOM 7217 | 10 | 7K824 | 77 | 5 | Class H | |||
| 73218BN75TS0N0H222P3 | Quote Required | TBD | NPT | Brass | Fluid Control Division | Normally Closed (NC) | 2-Way | 5 | 1-1/4 | Water | 110/50 | 1-1/8 | UL | 16.0 | CSA Class 1, Div. 1 | PTFE | Internal Pilot | 353 | - | 125 | 10 | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 7K824 | 77 | H (180°C) | NPT | BRASS | 1-1/4 | Normally Closed | 1-1/8 | 120/60, 110/50 | Internally Piloted | UL, CSA Listed General Purpose Valve for Hazardous Locations; CE - Low Voltage, EMC | 16.0 | UL, CSA - Class 1, Div. 1, Group A,B,C,D Class 2, Div. 1, Group E,F,G - T3C | Water, Hot Water, Steam | PTFE | 353 | - | 2 Way | 125 | 1/2" NPT Conduit w/ 18" Leads | IOM 7217 | 10 | 7K824 | 77 | 5 | Class H |
