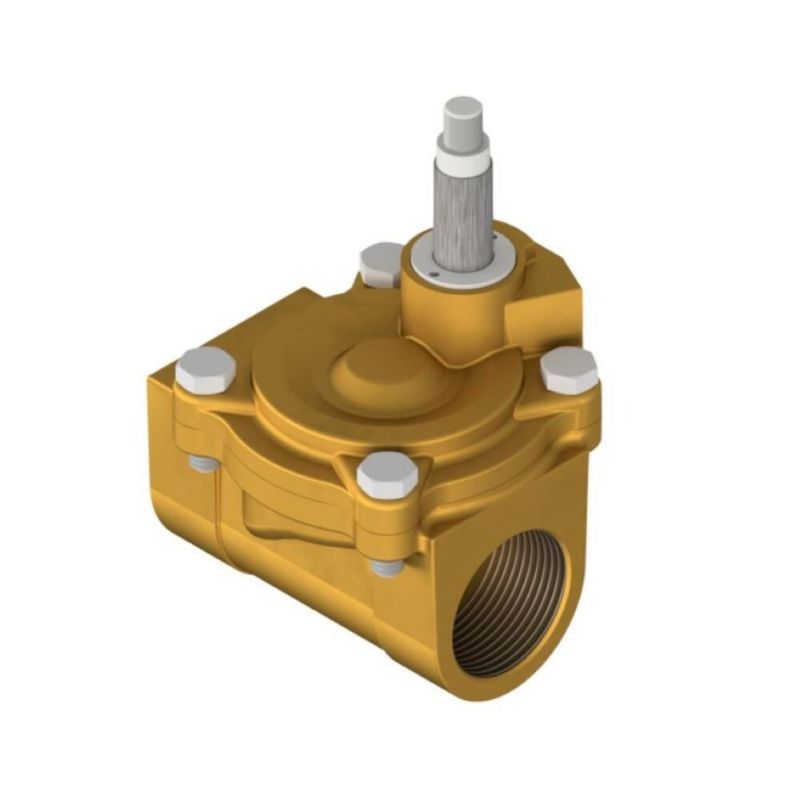

Parker 73218BN4UTS0 - High Pressure Steam Valves

Durable, high pressure, high flow steam valves for demanding hot water, and steam applications.

Availability:	Quote Required
Partner Available:	Quote Required

Brand Parker

Part No. 73218BN4UTS0

$426.79

Ship to

Shipping Method

Estimated Delivery

Price

No shipping options

Products specifications

Attribute name	Attribute value
UOM	EA	Port Type	NPT
Body Material	Brass	Port Size	1/2 inch
Division	Fluid Control Division	Function	Normally Closed (NC)
Valve Type	2-Way	Minimum Pressure Differential	3 psi
Input Voltage	Pressure Vessel Only	Orifice Size	5/8 inch
Specifications Met	N/A	Ingress Protection Rating	N/A
Media	Hot Water	Seal Material	PTFE
Actuation Type	Internal Pilot	Maximum Fluid Temperature	353 °F
Maximum Pressure Differential	- psi	Maximum Steam Pressure	125 psi
Main Flow Coefficient	4.0 Cv	Power Consumption	10 W
Coil Type	Requires Class H Coil from Chart 7	Installation	IOM 7217
Preventive Maintenance Kit	7K823	Maximum Ambient Temperature	77 °F
Insulation Class	Requires Class H Coil From Chart 7	Port Type	NPT
Body Material	BRASS	Function	Normally Closed
Orifice Size	5/8	Input Voltage	Pressure Vessel Only
Actuation Type	Internally Piloted	Specifications Met	N/A
Ingress Protection Rating	N/A	Media	Water, Hot Water, Steam
Seal Material	PTFE	Maximum Fluid Temperature	353
Maximum Pressure Differential	-	Valve Type	2 Way
Maximum Steam Pressure	125	Port Size	1/2
Main Flow Coefficient	4.0	Coil Type	Requires Class H Coil from Chart 7
Installation	IOM 7217	Power Consumption	10
Preventive Maintenance Kit	7K823	Maximum Ambient Temperature	77
Minimum Pressure Differential	3	Insulation Class	Requires Class H Coil from Chart 7

Product resources

Literature and Reference Materials

Tube Seal (PDF)
