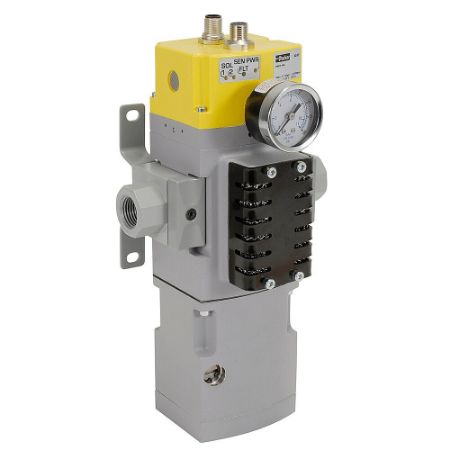

Global FRL Valves (Safety Exhaust)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The P33 family of global redundant safety exhaust valves are designed to rapidly exhaust compressed air in the event of a fault condition and provide monitored coverage. These 3/2 normally closed, two channel valves are designed for a failsafe operation. This product meets the highest safety standards for applications up to and including Category 4, PL e. When applications demand a safe environment, you can count on safety valves from Parker Hannifin.
Markets:
• General Industrial
• Packaging
• Automotive
Features/Benefits:
• Designed to be applied to machinery, to exhaust trapped air during an e-stop or fault condition.
• Allows the machinery to achieve a safe state without trapped residual energy.
• Available with an adjustable soft start to allow a gradual introduction of pressure into machinery on start up.
• Two channel design means redundancy for maximum safety
• Solid state pressure sensors provide accurate and reliable fault condition monitoring
• M12 connectors for solenoids and sensors makes the product easy to install
Applications:
• Pneumatic Safety Systems (up to Category 4 / performance level ‘e')
Conforms to:
• International standards: complies with the Machinery Directive and standards EN ISO 13849-1 and EN ISO 13849-2 for Safety Related Parts of a Control Circuit.
| Action | Part No. | Availability | Partner Available | Price | UOM | Weight | Body Material | Product Style | Electrical Connection | Product Type | Industry | Specifications Met | Operating Temperature | Application | Input Voltage | Width | Maximum Operating Pressure | Flow Rate | Division | Technology | Mounting Type | Port Size | Height | Minimum Operating Pressure | Length | Port Type | Seal Material | Brand | Function | Solenoid Connection | Sensor Connection | Port Type | Pressure Gauge | Options | Product Style | Port Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P33DB16AAEG | Quote Required | TBD | 1.9 | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated) | M12 (x2) | Safety Exhaust Valve | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 4 to 50 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24 | 8 | 150 | ≤ 265 | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 | 17.87 | 10 | 10.93 | NPT | Nitrile Butadiene Rubber (NBR) | Parker | 3/2 Normally-Closed | [A] - M12 pins: 2 & 4 with common 3 | [A] - M12 pins: 1&2, 1&4, common 3 | [B1] - BSPP "G" | [EG] - Standard Dial Gauge | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |||
| P33DB16AAEM | Quote Required | TBD | 1.9 kg | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Two M12 connections | Safety Exhaust Valve | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 40° to 120° °F | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24V DC | 8 cm | 30 barg | up to 265 SCFM | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 inch | 17.87 cm | 10 psig | 10.93 cm | NPT<br>BSPP | NBR | Parker | 3/2 Normally-Closed | [A] - M12 pins: 2 & 4 with common 3 | [A] - M12 pins: 1&2, 1&4, common 3 | [B1] - BSPP "G" | [EM] - MPS-P34 pressure sensor | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |||
| P33DB16AAEN | Quote Required | TBD | 4.2 lb | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Two M12 connections | Safety Exhaust Valve | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 40° to 120° °F | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24V DC | 3.15 inch | 150 psig | up to 7500 L/min | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 inch | 7.03 inch | 10 psig | 10.93 cm | NPT<br>BSPP | NBR | Parker | 3/2 Normally-Closed | [A] - M12 pins: 2 & 4 with common 3 | [A] - M12 pins: 1&2, 1&4, common 3 | [B1] - BSPP "G" | [EN] - None | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |||
| P33DB16AAENF | Quote Required | TBD | Pneumatic Division | [A] - M12 pins: 2 & 4 with common 3 | [A] - M12 pins: 1&2, 1&4, common 3 | [B1] - BSPP "G" | [EN] - None | [F] - Threaded Exhaust | [P33D] - Without Soft Start | [6] - 3/4 inch | ||||||||||||||||||||||||||
| P33DB16ABEG | Quote Required | TBD | 1.9 | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated) | M12 (x2) | Safety Exhaust Valve | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 4 to 50 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24 | 8 | 150 | ≤ 265 | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 | 17.87 | 10 | 10.93 | NPT | Nitrile Butadiene Rubber (NBR) | Parker | 3/2 Normally-Closed | [A] - M12 pins: 2 & 4 with common 3 | [B] - M12 pins: 1&2, 5&4, common 3 | [B1] - BSPP "G" | [EG] - Standard Dial Gauge | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |||
| P33DB16ABEM | Quote Required | TBD | 1.9 | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated) | M12 (x2) | Safety Exhaust Valve | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 4 to 50 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24 | 8 | 150 | ≤ 265 | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 | 17.87 | 10 | 10.93 | NPT | Nitrile Butadiene Rubber (NBR) | Parker | 3/2 Normally-Closed | [A] - M12 pins: 2 & 4 with common 3 | [B] - M12 pins: 1&2, 5&4, common 3 | [B1] - BSPP "G" | [EM] - MPS-P34 pressure sensor | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |||
| P33DB16ABEN | Quote Required | $950.61 | EA | 4.2 lb | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Two M12 connections | Safety Exhaust Valve | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 40° to 120° °F | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24V DC | 3.15 inch | 30 barg | up to 7500 L/min | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 inch | 7.03 inch | 10 psig | 10.93 cm | NPT<br>BSPP | NBR | Parker | 3/2 Normally-Closed | [A] - M12 pins: 2 & 4 with common 3 | [B] - M12 pins: 1&2, 5&4, common 3 | [B1] - BSPP "G" | [EN] - None | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | ||
| P33DB16ABENF | Quote Required | TBD | Pneumatic Division | [A] - M12 pins: 2 & 4 with common 3 | [B] - M12 pins: 1&2, 5&4, common 3 | [B1] - BSPP "G" | [EN] - None | [F] - Threaded Exhaust | [P33D] - Without Soft Start | [6] - 3/4 inch | ||||||||||||||||||||||||||
| P33DB16ACEG | Quote Required | TBD | 1.9 | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated) | M12 (x2) | Safety Exhaust Valve | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 4 to 50 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24 | 8 | 150 | ≤ 265 | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 | 17.87 | 10 | 10.93 | NPT | Nitrile Butadiene Rubber (NBR) | Parker | 3/2 Normally-Closed | [A] - M12 pins: 2 & 4 with common 3 | [C] - M12 pins: 5&2, 1&4, common 3 | [B1] - BSPP "G" | [EG] - Standard Dial Gauge | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |||
| P33DB16ACEM | Quote Required | TBD | 1.9 | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated) | M12 (x2) | Safety Exhaust Valve | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 4 to 50 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24 | 8 | 150 | ≤ 265 | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 | 17.87 | 10 | 10.93 | NPT | Nitrile Butadiene Rubber (NBR) | Parker | 3/2 Normally-Closed | [A] - M12 pins: 2 & 4 with common 3 | [C] - M12 pins: 5&2, 1&4, common 3 | [B1] - BSPP "G" | [EM] - MPS-P34 pressure sensor | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |||
| P33DB16ACEN | Quote Required | 6 In Stock | $950.61 | EA | 1.9 kg | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Two M12 connections | Safety Exhaust Valve | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 40° to 120° °F | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24V DC | 3.15 inch | 150 psig | up to 125 dm3/sec | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 inch | 17.87 cm | 10 psig | 4.3 inch | NPT<br>BSPP | NBR | Parker | 3/2 Normally-Closed | [A] - M12 pins: 2 & 4 with common 3 | [C] - M12 pins: 5&2, 1&4, common 3 | [B1] - BSPP "G" | [EN] - None | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |
| P33DB16ACENF | Quote Required | TBD | Pneumatic Division | [A] - M12 pins: 2 & 4 with common 3 | [C] - M12 pins: 5&2, 1&4, common 3 | [B1] - BSPP "G" | [EN] - None | [F] - Threaded Exhaust | [P33D] - Without Soft Start | [6] - 3/4 inch | ||||||||||||||||||||||||||
| P33DB16CAEG | Quote Required | TBD | 1.9 | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated) | M12 (x2) | Safety Exhaust Valve | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 4 to 50 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24 | 8 | 150 | ≤ 265 | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 | 17.87 | 10 | 10.93 | NPT | Nitrile Butadiene Rubber (NBR) | Parker | 3/2 Normally-Closed | [C] - M12 pins: 3 & 4 for bipolar outputs | [A] - M12 pins: 1&2, 1&4, common 3 | [B1] - BSPP "G" | [EG] - Standard Dial Gauge | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |||
| P33DB16CAEM | Quote Required | TBD | 1.9 | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated) | M12 (x2) | Safety Exhaust Valve | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 4 to 50 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24 | 8 | 150 | ≤ 265 | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 | 17.87 | 10 | 10.93 | NPT | Nitrile Butadiene Rubber (NBR) | Parker | 3/2 Normally-Closed | [C] - M12 pins: 3 & 4 for bipolar outputs | [A] - M12 pins: 1&2, 1&4, common 3 | [B1] - BSPP "G" | [EM] - MPS-P34 pressure sensor | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |||
| P33DB16CAEN | Quote Required | $950.61 | EA | 4.2 lb | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Two M12 connections | Safety Exhaust Valve | General Industry<br>Automotive<br>Packaging | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 40° to 120° °F | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24V DC | 3.15 inch | 150 psig | up to 125 dm3/sec | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 inch | 17.87 cm | 2 barg | 10.93 cm | NPT<br>BSPP | NBR | Parker | 3/2 Normally-Closed | [C] - M12 pins: 3 & 4 for bipolar outputs | [A] - M12 pins: 1&2, 1&4, common 3 | [B1] - BSPP "G" | [EN] - None | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | ||
| P33DB16CAENF | Quote Required | TBD | Pneumatic Division | [C] - M12 pins: 3 & 4 for bipolar outputs | [A] - M12 pins: 1&2, 1&4, common 3 | [B1] - BSPP "G" | [EN] - None | [F] - Threaded Exhaust | [P33D] - Without Soft Start | [6] - 3/4 inch | ||||||||||||||||||||||||||
| P33DB16CBEG | Quote Required | TBD | 1.9 | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated) | M12 (x2) | Safety Exhaust Valve | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 4 to 50 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24 | 8 | 150 | ≤ 265 | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 | 17.87 | 10 | 10.93 | NPT | Nitrile Butadiene Rubber (NBR) | Parker | 3/2 Normally-Closed | [C] - M12 pins: 3 & 4 for bipolar outputs | [B] - M12 pins: 1&2, 5&4, common 3 | [B1] - BSPP "G" | [EG] - Standard Dial Gauge | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |||
| P33DB16CBEM | Quote Required | TBD | 1.9 | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated) | M12 (x2) | Safety Exhaust Valve | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 4 to 50 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24 | 8 | 150 | ≤ 265 | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 | 17.87 | 10 | 10.93 | NPT | Nitrile Butadiene Rubber (NBR) | Parker | 3/2 Normally-Closed | [C] - M12 pins: 3 & 4 for bipolar outputs | [B] - M12 pins: 1&2, 5&4, common 3 | [B1] - BSPP "G" | [EM] - MPS-P34 pressure sensor | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |||
| P33DB16CBEN | Quote Required | TBD | 1.9 | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated) | M12 (x2) | Safety Exhaust Valve | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 4 to 50 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24 | 8 | 150 | ≤ 265 | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 | 17.87 | 10 | 10.93 | NPT | Nitrile Butadiene Rubber (NBR) | Parker | 3/2 Normally-Closed | [C] - M12 pins: 3 & 4 for bipolar outputs | [B] - M12 pins: 1&2, 5&4, common 3 | [B1] - BSPP "G" | [EN] - None | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch | |||
| P33DB16CCEG | Quote Required | TBD | 1.9 | Cast Aluminum | Electro-Pneumatic (Solenoid Actuated) | M12 (x2) | Safety Exhaust Valve | General Industry | Category 4, Performance Level e per EN ISO 13849-1 (pending) | 4 to 50 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | 24 | 8 | 150 | ≤ 265 | Pneumatic Division | Pneumatics | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 3/4 | 17.87 | 10 | 10.93 | NPT | Nitrile Butadiene Rubber (NBR) | Parker | 3/2 Normally-Closed | [C] - M12 pins: 3 & 4 for bipolar outputs | [C] - M12 pins: 5&2, 1&4, common 3 | [B1] - BSPP "G" | [EG] - Standard Dial Gauge | Black Grill | [P33D] - Without Soft Start | [6] - 3/4 inch |
