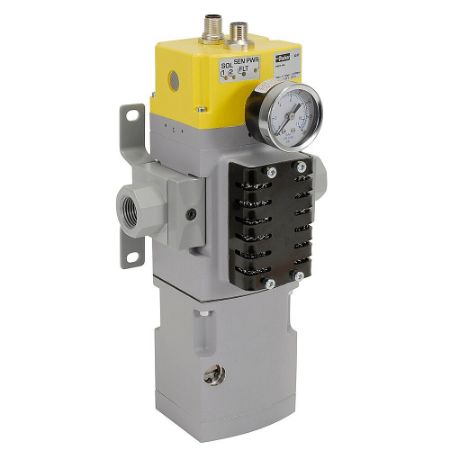

Global FRL Valves (Safety Exhaust)
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
The P33 family of global redundant safety exhaust valves are designed to rapidly exhaust compressed air in the event of a fault condition and provide monitored coverage. These 3/2 normally closed, two channel valves are designed for a failsafe operation. This product meets the highest safety standards for applications up to and including Category 4, PL e. When applications demand a safe environment, you can count on safety valves from Parker Hannifin.
Markets:
• General Industrial
• Packaging
• Automotive
Features/Benefits:
• Designed to be applied to machinery, to exhaust trapped air during an e-stop or fault condition.
• Allows the machinery to achieve a safe state without trapped residual energy.
• Available with an adjustable soft start to allow a gradual introduction of pressure into machinery on start up.
• Two channel design means redundancy for maximum safety
• Solid state pressure sensors provide accurate and reliable fault condition monitoring
• M12 connectors for solenoids and sensors makes the product easy to install
Applications:
• Pneumatic Safety Systems (up to Category 4 / performance level ‘e')
Conforms to:
• International standards: complies with the Machinery Directive and standards EN ISO 13849-1 and EN ISO 13849-2 for Safety Related Parts of a Control Circuit.
| Action | Part No. | Availability | Partner Available | Price | UOM | Division | Technology | Electrical Connection | Mounting Type | Minimum Operating Pressure | Length | Input Voltage | Width | Function | Product Style | Brand | Height | Port Size | Industry | Product Type | Flow Rate | Weight | Operating Temperature | Specifications Met | Port Type | Body Material | Maximum Operating Pressure | Application | Seal Material | Options | Pressure Gauge | Product Style | Port Size | Sensor Connection | Port Type | Solenoid Connection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| P33DB16ABEN | Quote Required | $950.61/each | EA | Pneumatic Division | Pneumatics | Two M12 connections | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 psig | 10.93 cm | 24V DC | 3.15 inch | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Parker | 7.03 inch | 3/4 inch | General Industry<br>Automotive<br>Packaging | Safety Exhaust Valve | up to 7500 L/min | 4.2 lb | 40° to 120° °F | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT<br>BSPP | Cast Aluminum | 30 barg | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | NBR | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | [B] - M12 pins: 1&2, 5&4, common 3 | [B1] - BSPP "G" | [A] - M12 pins: 2 & 4 with common 3 | ||
| P33DB16ACEN | Quote Required | 6 In Stock | $950.61/each | EA | Pneumatic Division | Pneumatics | Two M12 connections | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 psig | 4.3 inch | 24V DC | 3.15 inch | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Parker | 17.87 cm | 3/4 inch | General Industry<br>Automotive<br>Packaging | Safety Exhaust Valve | up to 125 dm3/sec | 1.9 kg | 40° to 120° °F | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT<br>BSPP | Cast Aluminum | 150 psig | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | NBR | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | [C] - M12 pins: 5&2, 1&4, common 3 | [B1] - BSPP "G" | [A] - M12 pins: 2 & 4 with common 3 | |
| P33DB16CAEN | Quote Required | $950.61/each | EA | Pneumatic Division | Pneumatics | Two M12 connections | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 2 barg | 10.93 cm | 24V DC | 3.15 inch | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Parker | 17.87 cm | 3/4 inch | General Industry<br>Automotive<br>Packaging | Safety Exhaust Valve | up to 125 dm3/sec | 4.2 lb | 40° to 120° °F | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT<br>BSPP | Cast Aluminum | 150 psig | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | NBR | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | [A] - M12 pins: 1&2, 1&4, common 3 | [B1] - BSPP "G" | [C] - M12 pins: 3 & 4 for bipolar outputs | ||
| P33DB16CCEN | Quote Required | $950.61/each | EA | Pneumatic Division | Pneumatics | Two M12 connections | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 psig | 10.93 cm | 24V DC | 8 cm | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Parker | 7.03 inch | 3/4 inch | General Industry<br>Automotive<br>Packaging | Safety Exhaust Valve | up to 125 dm3/sec | 4.2 lb | 4° to 50° °C | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT<br>BSPP | Cast Aluminum | 30 barg | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | NBR | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | [C] - M12 pins: 5&2, 1&4, common 3 | [B1] - BSPP "G" | [C] - M12 pins: 3 & 4 for bipolar outputs | ||
| P33DB16DBEN | Quote Required | $950.61/each | EA | Pneumatic Division | Pneumatics | Two M12 connections | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 psig | 4.3 inch | 24V DC | 3.15 inch | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Parker | 7.03 inch | 3/4 inch | General Industry<br>Automotive<br>Packaging | Safety Exhaust Valve | up to 125 dm3/sec | 4.2 lb | 4° to 50° °C | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT<br>BSPP | Cast Aluminum | 30 barg | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | NBR | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | [B] - M12 pins: 1&2, 5&4, common 3 | [B1] - BSPP "G" | [D] - M12 pins: 2 & 4 for bipolar outputs | ||
| P33DB16DCEN | Quote Required | $950.61/each | EA | Pneumatic Division | Pneumatics | Two M12 connections | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 psig | 4.3 inch | 24V DC | 3.15 inch | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Parker | 17.87 cm | 3/4 inch | General Industry<br>Automotive<br>Packaging | Safety Exhaust Valve | up to 7500 L/min | 1.9 kg | 4° to 50° °C | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT<br>BSPP | Cast Aluminum | 150 psig | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | NBR | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | [C] - M12 pins: 5&2, 1&4, common 3 | [B1] - BSPP "G" | [D] - M12 pins: 2 & 4 for bipolar outputs | ||
| P33DB96AAED | Quote Required | $988.44/each | EA | Pneumatic Division | Pneumatics | M12 (x2) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 | 10.93 | 24 | 8 | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated) | Parker | 17.87 | 3/4 | General Industry | Safety Exhaust Valve | ≤ 265 | 1.9 | 4 to 50 | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT | Cast Aluminum | 150 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | Nitrile Butadiene Rubber (NBR) | Black Grill | [ED] - Digital Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | [A] - M12 pins: 1&2, 1&4, common 3 | [B9] - NPTF | [A] - M12 pins: 2 & 4 with common 3 | ||
| P33DB96AAEG | Quote Required | $964.88/each | EA | Pneumatic Division | Pneumatics | M12 (x2) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 | 10.93 | 24 | 8 | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated) | Parker | 17.87 | 3/4 | General Industry | Safety Exhaust Valve | ≤ 265 | 1.9 | 4 to 50 | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT | Cast Aluminum | 150 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | Nitrile Butadiene Rubber (NBR) | Black Grill | [EG] - Standard Dial Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | [A] - M12 pins: 1&2, 1&4, common 3 | [B9] - NPTF | [A] - M12 pins: 2 & 4 with common 3 | ||
| P33DB96AAEN | Quote Required | $950.61/each | EA | Pneumatic Division | Pneumatics | M12 (x2) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 | 10.93 | 24 | 8 | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated) | Parker | 17.87 | 3/4 | General Industry | Safety Exhaust Valve | ≤ 265 | 1.9 | 4 to 50 | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT | Cast Aluminum | 150 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | Nitrile Butadiene Rubber (NBR) | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | [A] - M12 pins: 1&2, 1&4, common 3 | [B9] - NPTF | [A] - M12 pins: 2 & 4 with common 3 | ||
| P33DB96ABED | Quote Required | $988.44/each | EA | Pneumatic Division | Pneumatics | M12 (x2) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 | 10.93 | 24 | 8 | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated) | Parker | 17.87 | 3/4 | General Industry | Safety Exhaust Valve | ≤ 265 | 1.9 | 4 to 50 | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT | Cast Aluminum | 150 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | Nitrile Butadiene Rubber (NBR) | Black Grill | [ED] - Digital Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | [B] - M12 pins: 1&2, 5&4, common 3 | [B9] - NPTF | [A] - M12 pins: 2 & 4 with common 3 | ||
| P33DB96ABEG | Quote Required | $964.88/each | EA | Pneumatic Division | Pneumatics | M12 (x2) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 | 10.93 | 24 | 8 | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated) | Parker | 17.87 | 3/4 | General Industry | Safety Exhaust Valve | ≤ 265 | 1.9 | 4 to 50 | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT | Cast Aluminum | 150 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | Nitrile Butadiene Rubber (NBR) | Black Grill | [EG] - Standard Dial Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | [B] - M12 pins: 1&2, 5&4, common 3 | [B9] - NPTF | [A] - M12 pins: 2 & 4 with common 3 | ||
| P33DB96ABEM | Quote Required | $1,167.18/each | EA | Pneumatic Division | Pneumatics | Two M12 connections | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 2 barg | 10.93 cm | 24V DC | 3.15 inch | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Parker | 17.87 cm | 3/4 inch | General Industry<br>Automotive<br>Packaging | Safety Exhaust Valve | up to 265 SCFM | 1.9 kg | 40° to 120° °F | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT<br>BSPP | Cast Aluminum | 30 barg | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | NBR | Black Grill | [EM] - MPS-P34 pressure sensor | [P33D] - Without Soft Start | [6] - 3/4 inch | [B] - M12 pins: 1&2, 5&4, common 3 | [B9] - NPTF | [A] - M12 pins: 2 & 4 with common 3 | ||
| P33DB96ABEN | Quote Required | $950.61/each | EA | Pneumatic Division | Pneumatics | M12 (x2) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 | 10.93 | 24 | 8 | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated) | Parker | 17.87 | 3/4 | General Industry | Safety Exhaust Valve | ≤ 265 | 1.9 | 4 to 50 | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT | Cast Aluminum | 150 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | Nitrile Butadiene Rubber (NBR) | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | [B] - M12 pins: 1&2, 5&4, common 3 | [B9] - NPTF | [A] - M12 pins: 2 & 4 with common 3 | ||
| P33DB96ACED | Quote Required | $988.44/each | EA | Pneumatic Division | Pneumatics | M12 (x2) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 | 10.93 | 24 | 8 | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated) | Parker | 17.87 | 3/4 | General Industry | Safety Exhaust Valve | ≤ 265 | 1.9 | 4 to 50 | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT | Cast Aluminum | 150 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | Nitrile Butadiene Rubber (NBR) | Black Grill | [ED] - Digital Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | [C] - M12 pins: 5&2, 1&4, common 3 | [B9] - NPTF | [A] - M12 pins: 2 & 4 with common 3 | ||
| P33DB96ACEG | Quote Required | $964.88/each | EA | Pneumatic Division | Pneumatics | M12 (x2) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 | 10.93 | 24 | 8 | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated) | Parker | 17.87 | 3/4 | General Industry | Safety Exhaust Valve | ≤ 265 | 1.9 | 4 to 50 | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT | Cast Aluminum | 150 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | Nitrile Butadiene Rubber (NBR) | Black Grill | [EG] - Standard Dial Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | [C] - M12 pins: 5&2, 1&4, common 3 | [B9] - NPTF | [A] - M12 pins: 2 & 4 with common 3 | ||
| P33DB96ACEN | Quote Required | $950.61/each | EA | Pneumatic Division | Pneumatics | M12 (x2) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 | 10.93 | 24 | 8 | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated) | Parker | 17.87 | 3/4 | General Industry | Safety Exhaust Valve | ≤ 265 | 1.9 | 4 to 50 | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT | Cast Aluminum | 150 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | Nitrile Butadiene Rubber (NBR) | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | [C] - M12 pins: 5&2, 1&4, common 3 | [B9] - NPTF | [A] - M12 pins: 2 & 4 with common 3 | ||
| P33DB96CAEG | Quote Required | $964.88/each | EA | Pneumatic Division | Pneumatics | Two M12 connections | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 2 barg | 10.93 cm | 24V DC | 3.15 inch | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Parker | 7.03 inch | 3/4 inch | General Industry<br>Automotive<br>Packaging | Safety Exhaust Valve | up to 265 SCFM | 1.9 kg | 4° to 50° °C | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT<br>BSPP | Cast Aluminum | 150 psig | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | NBR | Black Grill | [EG] - Standard Dial Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | [A] - M12 pins: 1&2, 1&4, common 3 | [B9] - NPTF | [C] - M12 pins: 3 & 4 for bipolar outputs | ||
| P33DB96CAEN | Quote Required | $950.61/each | EA | Pneumatic Division | Pneumatics | Two M12 connections | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 2 barg | 4.3 inch | 24V DC | 8 cm | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Parker | 17.87 cm | 3/4 inch | General Industry<br>Automotive<br>Packaging | Safety Exhaust Valve | up to 7500 L/min | 4.2 lb | 40° to 120° °F | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT<br>BSPP | Cast Aluminum | 150 psig | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | NBR | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | [A] - M12 pins: 1&2, 1&4, common 3 | [B9] - NPTF | [C] - M12 pins: 3 & 4 for bipolar outputs | ||
| P33DB96CBEN | Quote Required | $950.61/each | EA | Pneumatic Division | Pneumatics | Two M12 connections | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 2 barg | 4.3 inch | 24V DC | 3.15 inch | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated)<br>Externally Monitored<br>Without Soft Start | Parker | 17.87 cm | 3/4 inch | General Industry<br>Automotive<br>Packaging | Safety Exhaust Valve | up to 265 SCFM | 1.9 kg | 40° to 120° °F | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT<br>BSPP | Cast Aluminum | 30 barg | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | NBR | Black Grill | [EN] - None | [P33D] - Without Soft Start | [6] - 3/4 inch | [B] - M12 pins: 1&2, 5&4, common 3 | [B9] - NPTF | [C] - M12 pins: 3 & 4 for bipolar outputs | ||
| P33DB96CCED | Quote Required | $988.44/each | EA | Pneumatic Division | Pneumatics | M12 (x2) | Inline / Stand-Alone or Modular Mount (on P32/P33 FRL) | 10 | 10.93 | 24 | 8 | 3/2 Normally-Closed | Electro-Pneumatic (Solenoid Actuated) | Parker | 17.87 | 3/4 | General Industry | Safety Exhaust Valve | ≤ 265 | 1.9 | 4 to 50 | Category 4, Performance Level e per EN ISO 13849-1 (pending) | NPT | Cast Aluminum | 150 | Pneumatic Safety Systems (up to Category 4 / performance level ‘e’) | Nitrile Butadiene Rubber (NBR) | Black Grill | [ED] - Digital Gauge | [P33D] - Without Soft Start | [6] - 3/4 inch | [C] - M12 pins: 5&2, 1&4, common 3 | [B9] - NPTF | [C] - M12 pins: 3 & 4 for bipolar outputs |
