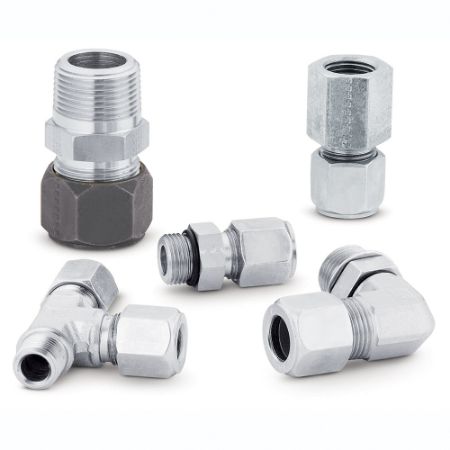

Ferulok 24° Flareless Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
AFP Industries stocks this Parker series for quote or purchase, with interchange support and southeast warehouse availability.
Parker's 24° Flareless tube fittings, Ferulok, have a visible bite which allows the fitting assembler to visually inspect the bite quality, which significantly minimizes the risk of improper assembly and related service problems in hydraulic connections. The rear compression grip of the ferrule firmly holds the nut and tubing, dampening the effects of vibration and extending the life of the joint. Exceeding the requirements of SAE J514, Ferulok Flareless fittings are especially suitable for use with applications requiring tube wall thicknesses ranging from medium to extra heavy.
Markets:
• Machine Tool
• Military Ground Systems
• Compressor
• Off-Shore Oil & Gas
• Power Plants
• Lubrication
• R & D
Features/Benefits:
• Hardened ferrule creates a visible heavy bite so no inspecting gauges are required.
• Compression grip at rear of ferrule dampens the effects of vibration which extends the life of the joint in rigorous applications.
• Especially suitable for use with tube wall thickness ranging from medium to heavy
• Metal-to-metal sealing makes it suitable for a broad range of temperature and media types.
• Parker’s Robust Port Stud on adjustable ports is manufactured with a longer locknut virtually eliminating washer damage and potential leaks, as well as making assembly virtually mistake-proof. This feature improves customer internal efficiencies and reduces rework costs resulting from backup washer damage commonly seen with traditional SAE adjustable port ends in the market.
• Steel fittings come standard with ToughShield Plus plating which substantially exceeds the SAE corrosion hour requirements for red rust, lasting up to 3,000 hours without red rust as found by an independent test facility (tested to ASTM B117/ISO 9227). This enhanced performance provides customers with a competitive advantage through less downtime and extended equipment life, leading to increased revenues and reduced warranty costs.
• No special tooling is required for smaller sizes of Ferulok which can be assembled by wrench for sizes up to 3/4".
• Stainless Steel nuts have a coating to prevent galling.
• Offered in steel and stainless steel in sizes: 1/8" through 2" with working pressures up to 6000 psi.
Applications:
• Hydraulic fluid and gas handling connections
| Action | Part No. | Availability | Partner Available | Price | UOM | Maximum Dynamic Pressure | Connection 4 Size | Specifications Met | Dimensional Weight | Connection 4 Tube Outside Diameter | Division | Connection Type | Body Material | Body Material | Connection 3 Style | Connection 3 Thread Size (inch) | Connection 2 Style | Connection 2 Thread Size (inch) | Connection Style | Shape | Connection 1 Style | Connection 1 Tube O.D. (inch) | O-ring | Connection 2 Tube O.D. (inch) | Connection 3 Tube O.D. (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 10 BU-S | 48 In Stock | 732 In Stock | $4.17/each | EA | na | na | SAE J514 | 0.015485611510791366 lb | na | Tube Fittings Division | Flareless Bite Type | Steel | Steel | na | na | na | na | na | Nut | Female Flareless Bite Type | 5/8 | na | na | na | |
| 10 BU-SS | 1 Limited Stock | 50 In Stock | $19.58/each | EA | na | na | SAE J514 | na | Tube Fittings Division | Flareless Bite Type | Stainless Steel | Stainless Steel | na | na | na | na | na | Nut | Female Flareless Bite Type | 5/8 | na | na | na | ||
| 10 C5BU-S | 13 In Stock | 43 In Stock | $36.20/each | EA | 4500 psi | na | SAE J514 | na | Tube Fittings Division | Flareless Bite Type | Steel | Steel | na | na | Male SAE-ORB | 7/8-14 | Tube to SAE Straight Thread | 90° Elbow | Male Flareless Bite Type | 5/8 | 90 Durometer Nitrile | na | na | ||
| 10 C6BU-S | Quote Required | $33.50/each | EA | 4500 psi | na | SAE J514 | na | Tube Fittings Division | Flareless Bite Type | Steel | Steel | na | na | Female Flareless Bite Type Swivel | na | Tube to Tube | 90° Elbow | Male Flareless Bite Type | 5/8 | 90 Durometer Nitrile | 5/8 | na | |||
| 10 CBU-S | 26 In Stock | 355 In Stock | $24.54/each | EA | 4500 psi | na | SAE J514 | 0.07710347347122302 lb | na | Tube Fittings Division | Flareless Bite Type | Steel | Steel | na | na | Male NPTF | 1/2-14 | Tube to NPT | 90° Elbow | Male Flareless Bite Type | 5/8 | na | na | na | |
| 10 CBU-SS | 1 Limited Stock | Quote Required | $123.10/each | EA | 4500 psi | na | SAE J514 | 0.12464028776978417 lb | na | Tube Fittings Division | Flareless Bite Type | Stainless Steel | Stainless Steel | na | na | Male NPTF | 1/2-14 | Tube to NPT | 90° Elbow | Male Flareless Bite Type | 5/8 | na | na | na | |
| 10 CC5BU-S | Quote Required | $122.64/each | EA | 4500 psi | na | SAE J514 | na | Tube Fittings Division | Flareless Bite Type | Steel | Steel | na | na | Male SAE-ORB | 7/8-14 | Tube to SAE Straight Thread Long | 90° Elbow | Male Flareless Bite Type | 5/8 | 90 Durometer Nitrile | na | na | |||
| 10 DBU-S | Quote Required | 22 In Stock | $36.68/each | EA | 3000 psi | na | SAE J514 | na | Tube Fittings Division | Flareless Bite Type | Steel | Steel | na | na | Female NPTF | 1/2-14 | Tube to NPT | 90° Elbow | Male Flareless Bite Type | 5/8 | na | na | na | ||
| 10 DBU-SS | Quote Required | $159.03/each | EA | 3000 psi | na | SAE J514 | na | Tube Fittings Division | Flareless Bite Type | Stainless Steel | Stainless Steel | na | na | Female NPTF | 1/2-14 | Tube to NPT | 90° Elbow | Male Flareless Bite Type | 5/8 | na | na | na | |||
| 10 EBU-S | 13 In Stock | 172 In Stock | $37.68/each | EA | 4500 psi | na | SAE J514 | 0.07491007194244605 lb | na | Tube Fittings Division | Flareless Bite Type | Steel | Steel | na | na | Male Flareless Bite Type | na | Tube to Tube | 90° Elbow | Male Flareless Bite Type | 5/8 | na | 5/8 | na | |
| 10 EBU-SS | 2 Limited Stock | Quote Required | $121.93/each | EA | 4500 psi | na | SAE J514 | 0.12464028776978417 lb | na | Tube Fittings Division | Flareless Bite Type | Stainless Steel | Stainless Steel | na | na | Male Flareless Bite Type | na | Tube to Tube | 90° Elbow | Male Flareless Bite Type | 5/8 | na | 5/8 | na | |
| 10 F5BU-S | 28 In Stock | 42 In Stock | $19.94/each | EA | 5000 psi | na | SAE J514 | 0.062320143884892085 lb | na | Tube Fittings Division | Flareless Bite Type | Steel | Steel | na | na | Male SAE-ORB | 7/8-14 | Tube to SAE Straight Thread | Straight | Male Flareless Bite Type | 5/8 | 90 Durometer Nitrile | na | na | |
| 10 F5BU-SS | 2 Limited Stock | 2 Limited Stock | $111.13/each | EA | 5000 psi | na | SAE J514 | 0.062320143884892085 lb | na | Tube Fittings Division | Flareless Bite Type | Stainless Steel | Stainless Steel | na | na | Male SAE-ORB | 7/8-14 | Tube to SAE Straight Thread | Straight | Male Flareless Bite Type | 5/8 | 90 Durometer Nitrile | na | na | |
| 10 FBU-S | 68 In Stock | 628 In Stock | $14.35/each | EA | 4500 psi | na | SAE J514 | na | Tube Fittings Division | Flareless Bite Type | Steel | Steel | na | na | Male NPTF | 1/2-14 | Tube to NPT | Straight | Male Flareless Bite Type | 5/8 | na | na | na | ||
| 10 FBU-SS | 2 Limited Stock | 33 In Stock | $65.16/each | EA | 4500 psi | na | SAE J514 | 0.07491007194244605 lb | na | Tube Fittings Division | Flareless Bite Type | Stainless Steel | Stainless Steel | na | na | Male NPTF | 1/2-14 | Tube to NPT | Straight | Male Flareless Bite Type | 5/8 | na | na | na | |
| 10 FNU-S | 22 In Stock | 58 In Stock | $17.72/each | EA | 5000 psi | na | SAE J514 | 0.039568345323741004 lb | na | Tube Fittings Division | Flareless Bite Type | Steel | Steel | na | na | na | na | na | Cap | Female Flareless Bite Type Swivel | 5/8 | na | na | na | |
| 10 GBU-S | 6 In Stock | 93 In Stock | $22.74/each | EA | 4500 psi | na | SAE J514 | 0.044946043165467624 lb | na | Tube Fittings Division | Flareless Bite Type | Steel | Steel | na | na | Female NPTF | 1/2-14 | Tube to NPT | Straight | Male Flareless Bite Type | 5/8 | na | na | na | |
| 10 GBU-SS | 1 Limited Stock | 1 Limited Stock | $91.48/each | EA | 4500 psi | na | SAE J514 | 0.12464028776978417 lb | na | Tube Fittings Division | Flareless Bite Type | Stainless Steel | Stainless Steel | na | na | Female NPTF | 1/2-14 | Tube to NPT | Straight | Male Flareless Bite Type | 5/8 | na | na | na | |
| 10 HBU-S | 21 In Stock | 675 In Stock | $26.40/each | EA | 5000 psi | na | SAE J514 | 0.07742805755395683 lb | na | Tube Fittings Division | Flareless Bite Type | Steel | Steel | na | na | Male Flareless Bite Type | na | Tube to Tube | Straight | Male Flareless Bite Type | 5/8 | na | 5/8 | na | |
| 10 HBU-SS | 2 Limited Stock | 22 In Stock | $102.10/each | EA | 5000 psi | na | SAE J514 | 0.07913669064748201 lb | na | Tube Fittings Division | Flareless Bite Type | Stainless Steel | Stainless Steel | na | na | Male Flareless Bite Type | na | Tube to Tube | Straight | Male Flareless Bite Type | 5/8 | na | 5/8 | na |
